SMD60R24DC 60 Watt LED 2500mA Constant Voltage Driver

Magnitude Lighting SKU: SMD60R24DC
Magnitude Lighting SMD60R24DC 60 Watt LED 2500mA Constant Voltage Driver

SMD60R24DC 60 Watt LED 2500mA Constant Voltage Driver

Magnitude Lighting SKU: SMD60R24DC
Regular price $39.23
/
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

Magnitude Lighting has been transforming LED lighting with advanced LED drivers since 2008. With their breakthrough technologies, they are able to yield the highest efficiency ratings in the industry. Headquartered in Orange County, Magnitude Lighting have been able to maintain advanced manufacturing facilities and customer support facilities in North America in order to deliver the highest product quality, fastest fulfillment, and superior customer support. We recommend you try out Magnitude Lighting LED drivers today - you will not be disappointed.

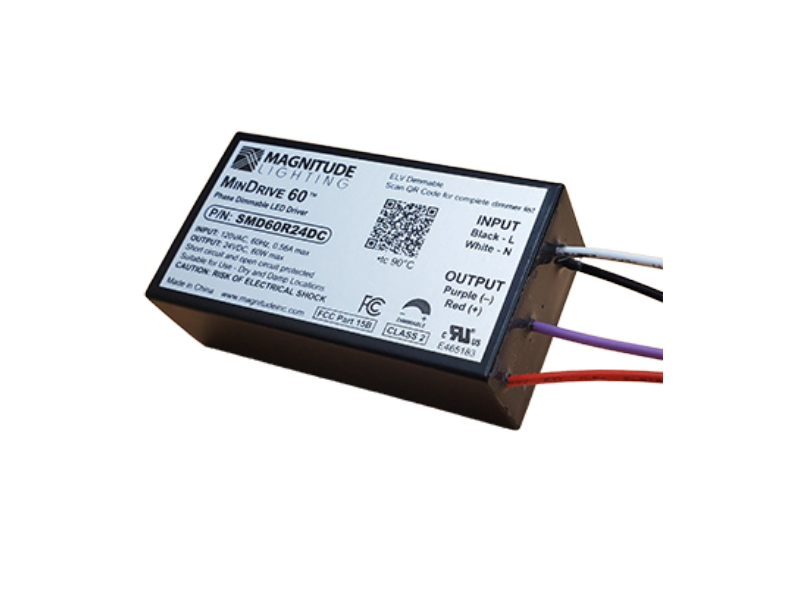

This item is the Magnitude Lighting power supply part number SMD60R24DC. This driver has a universal input voltage of 100-130V with 60Hz of frequency. As always, a 5 year warranty is standard on all of Magnitude's products. The output current is 2500mA output with a max output power of 60 watts. This driver will operate any LED series of parallel string of LEDs designed for constant voltage input of 24V. This LED Driver is dimmable with phase dimming and is IP20 rated and UL 8750 Approved, and Class 2, Class B rated.

Manufacturer Magnitude Lighting
MPN SMD60R24DC
SKU SMD60R24DC
Lighting Technology LED
Driver Constant Voltage
Output Current 2.5A (2500mA)
Input Current 0.56A
Output Wattage 60 Watt
Input Voltage 100-130VAC
Output Voltage 12VDC
Power Factor >.90
Dimming Phase Dimming
Operating Temperature -30°C to 40°C
Dimensions 2.9" W x 1.6" H x 0.9" Depth
Certifications Class 2, Class B, UL Listed
Environment Dry or Damp Location
Warranty 5 Year Standard
