SWX-103-1-D Single Gang Low Voltage Dimmable Vacancy PIR Wall Switch Sensor

SensorWorx SKU: SWX-103-1-D-GY

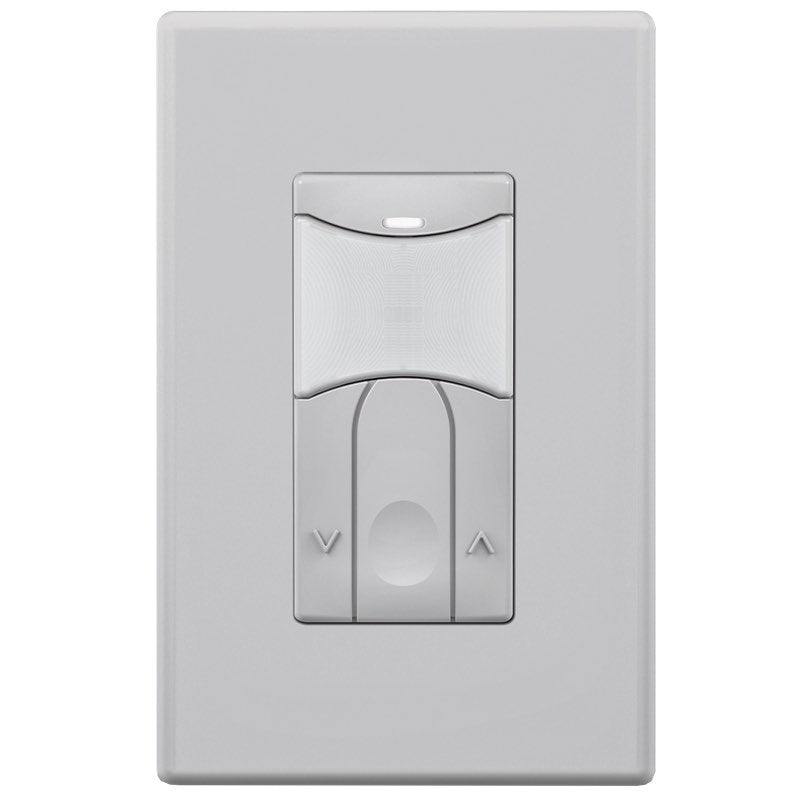

SensorWorx SWX-103-1-D Single Gang Low Voltage Dimmable Vacancy PIR Wall Switch Sensor Gray

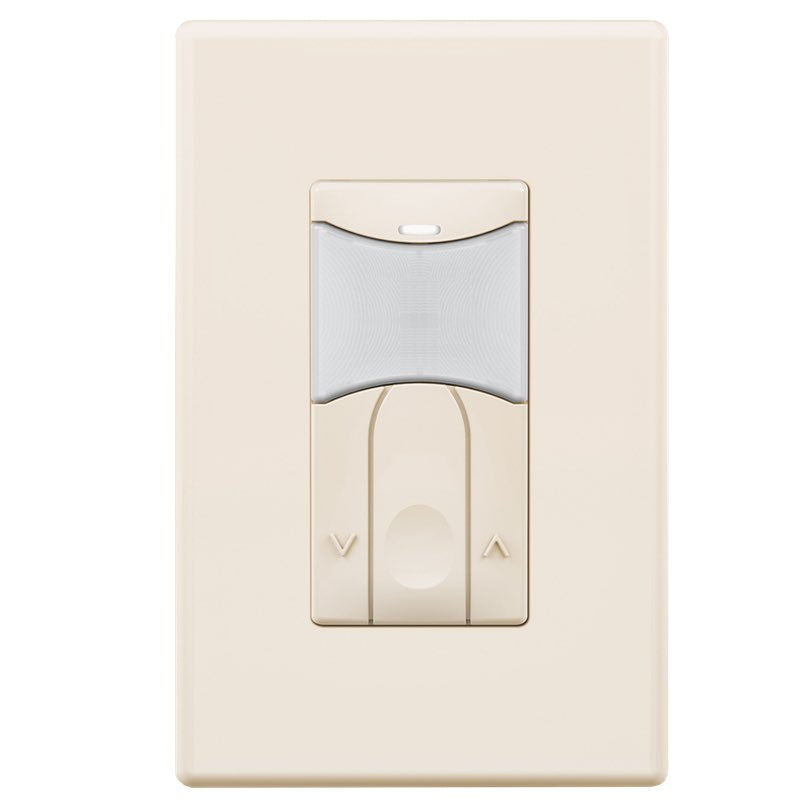

SensorWorx SWX-103-1-D Single Gang Low Voltage Dimmable Vacancy PIR Wall Switch Sensor Ivory

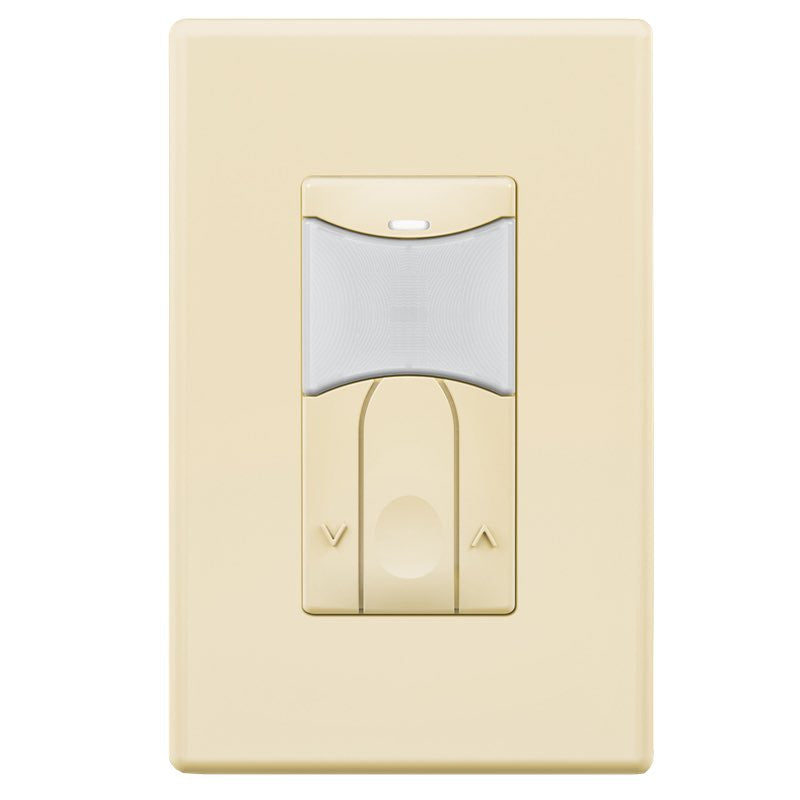

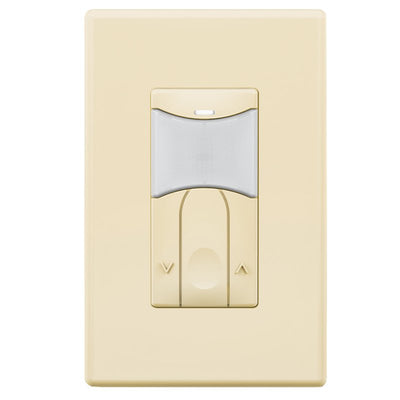

SensorWorx SWX-103-1-D Single Gang Low Voltage Dimmable Vacancy PIR Wall Switch Sensor Light Almond

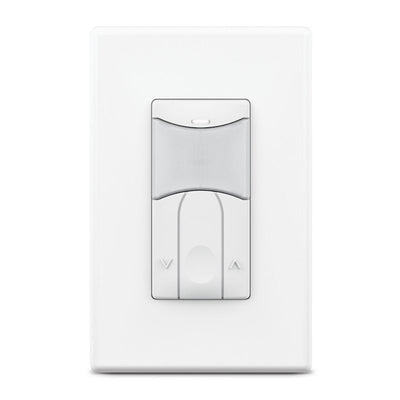

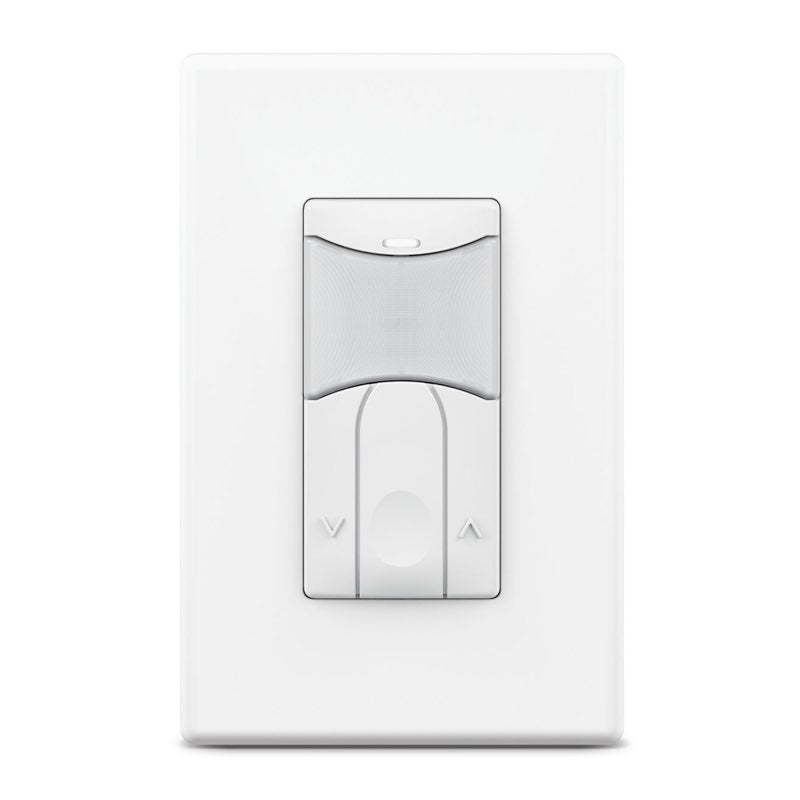

SensorWorx SWX-103-1-D Single Gang Low Voltage Dimmable Vacancy PIR Wall Switch Sensor White
SensorWorx SWX-103-1-D Single Gang Low Voltage Dimmable Vacancy PIR Wall Switch Sensor

SWX-103-1-D Single Gang Low Voltage Dimmable Vacancy PIR Wall Switch Sensor

SensorWorx SKU: SWX-103-1-D-GY
  • Made in USA, BAA Compliant, TAA Compliant
Regular price $108.51
/
Finish Color
Please call to confirm availability.
Decorative Face Plate NOT Included
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

The SensorWorx family of wall switch occupancy/vacancy sensors provides a simple and cost effective lighting control solution for many applications. Just like its line voltage counterpart, the low voltage SensorWorx 0-10V dimming wall switch sensor is designed with contractors in mind. Less than 1” deep, the unit is 25-40% shallower than typical dimmers and sensors, resulting in less crowed wall boxes. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance. These units are also available with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion is limited. For dimming adjustment, intuitive raise and lower buttons are present in addition to an on/off button.

Vacancy Mode is a Manual On/Automatic Off operation. Lights can also be switched off manually. This mode provides increased energy savings but requires the user to initially turn on the lights.

Decorative Face Plate NOT Included

Manufacturer SensorWorx
Finish Color Gray Ivory Light Almond White
MPN SWX-103-1-D-GY SWX-103-1-D-IV SWX-103-1-D-LA SWX-103-1-D-WH
SKU SWX-103-1-D-GY SWX-103-1-D-IV SWX-103-1-D-LA SWX-103-1-D-WH
Sensor Type Vacancy
Sensor Technology PIR (Passive Infrared)
Sensor Power Type Low Voltage
Voltage 12-24 VAC/VDC
Current Draw
4mA
Mounting In-Wall
Dimmable Yes, 0-10V
Dimming Load 50mA (sink only)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Dimensions 2.74” H x 1.68” W x 1.39” D
Certifications Title 24 Compliant, BAA Compliant, Made in USA
Environment Dry Location
Warranty 5 Year Limited
