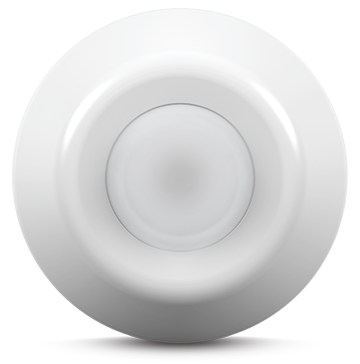

SWX-250-2 Line Voltage Ceiling Mount On/Off Photocell Sensor

SensorWorx SKU: SWX-250-2
SensorWorx SWX-250-2 Line Voltage Ceiling Mount On/Off Photocell Sensor
SensorWorx SWX-250-2 Line Voltage Ceiling Mount On/Off Photocell Sensor
SensorWorx SWX-250-2 Line Voltage Ceiling Mount On/Off Photocell Sensor

SWX-250-2 Line Voltage Ceiling Mount On/Off Photocell Sensor

SensorWorx SKU: SWX-250-2
  • Made in USA, BAA Compliant, TAA Compliant
Regular price $89.48
/
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

SensorWorx line voltage photocell and daylight harvesting sensors provide a compact control solution without requiring a powerpack. Basic on/off units are capable of directly switching lights off when ambient levels are high enough that desired overall light levels will be still be maintained. Lights will be switched back on once ambient level falls below the desired setpoint.

Units with the daylight harvesting (dimming) option track a space’s overall illumination and dim connected lighting to achieve energy savings. During times of high daylight contribution to a space, controlled artificial lighting will be gradually dimmed to a minimum dimmed level. During times of no or low daylight contribution, controlled artificial lighting will increase back up to its maximum level. The sensor can also be configured to switch lighting off completely in maintained high daylight conditions. Additional configurable parameters include high & low trim levels and fade rates.

All photocells provide the option of selecting the ambient light threshold (e.g., setpoint) from a range of preset values or running an auto-selection mode where the unit will determine the setpoint based on the measured amount of light it is controlling.

Manufacturer SensorWorx
MPN SWX-250-2
SKU SWX-250-2
Load Type LED Driver/Lamps; CFL; Electronic/Magnetic Fluorescent Ballasts; Tungsten Incandescent
Sensor Type On/Off Photocell
Sensor Power Type Line Voltage
Voltage 120-277VAC
Load Ratings
800 Watts @ 120VAC; 1200 Watts @ 277VAC
Dimming Capacity 50mA
Operating Temperature 32°F to 122°F (0°C to 50°C)
Relative Humidity 0-95% Non-Condensing
Dimensions 4" Diameter x 1.25" H
Certifications Title 24 Compliant, BAA Compliant, Made in USA
Environment Dry Location
Warranty 5 Year Limited
