TruBlue Mesh Bluetooth 0-10V Outdoor Fixture Controller with Long Range Antenna

Halco Lighting Technologies SKU: 25414
Halco Lighting Technologies TruBlue Mesh Bluetooth 0-10V Outdoor Fixture Controller with Long Range Antenna
Halco Lighting Technologies TruBlue Mesh Bluetooth 0-10V Outdoor Fixture Controller with Long Range Antenna
Halco Lighting Technologies TruBlue Mesh Bluetooth 0-10V Outdoor Fixture Controller with Long Range Antenna
Halco Lighting Technologies TruBlue Mesh Bluetooth 0-10V Outdoor Fixture Controller with Long Range Antenna

TruBlue Mesh Bluetooth 0-10V Outdoor Fixture Controller with Long Range Antenna

Halco Lighting Technologies SKU: 25414
  • IP65, Wet Location Rated
/
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

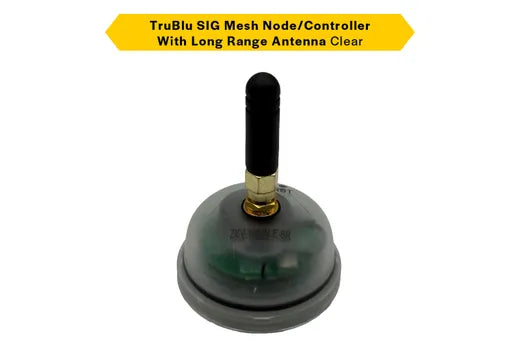

This single-channel wireless fixture controller features a long-range antenna and a Z10 base with active-high output for relay control. The controller is IP65 rated for exterior use and suitable for a variety of indoor and outdoor applications in temperatures ranging from –22° to 158°F (–30° to 70°C). This device is Bluetooth® NLC certified and controlled wirelessly via Bluetooth Mesh technology allowing for wireless dimming of luminaires. The compact size allows for seamless integration to the fixture.

The Halco Lighting Technologies Outdoor Fixture Controller with Long Range Antenna, part# PSC-ZKV-WCM-100-BLE-SR/EXA (25414) features high end trim adjustment, zoning and continuous dimming. IP65 Wet Location Rated for indoor or outdoor applications and carries a 5-Year Warranty.

Specifications
Manufacturer Halco Lighting Technologies
MPN PSC-ZKV-WCM-100-BLE-SR-BN
SKU 25414
UPC 807154254149
Finish Color Bronze
Input Power 12-24VDC, 100mA Current Consumption
Control Output 0-10VDC Dimming Output, 30mA
Wireless Standard TruBlu Mesh
App Compatible TruBlu Web Portal or IOS Moblie
Mounting Height 8-40 Feet (Area Light/Highbay) with Z10 Base
Sensor Range 1200 Feet (366M)
Operating Temperature -30°C to 70°C
Dimensions 1-7/8' W x 2-5/8" H
Environment IP65 Wet Location Rated for Indoors or Outdoors
Certifications cULus, FCC, CE, Bluetooth NLC Certified
Warranty 5 Year Warranty
Documents

 Halco Outdoor Fixture Controller with Long Range Antenna Specification Sheet
