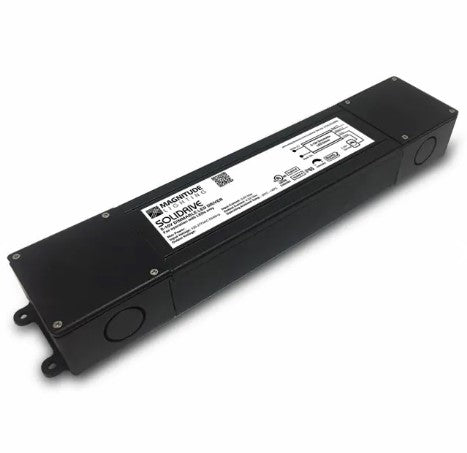

The SoliDrive Max is a Constant Voltage Class 2 rated UL Listed driver. The drivers with enclosures have a built-in junction box on both the input and output. These drivers are IP66 and UL2043 plenum rated and are suitable for both indoor and outdoor installations. With universal input voltage ranging from 120 to 277VAC, the SoliDrive Max Driver is designed for residential, commercial and industrial applications. The dimmers deliver smooth flicker-free dimming down to 1% with most LEDs and compatible with a wide variety of dimmers. As always, a 5-year warranty is a standard on all of Magnitude’s products

This item is the Magnitude Lighting power supply part number VPD96L24DC. This driver has a input voltage of 100-277V and includes Auto Reset for over temperature, over load, and short circuit protection. The output current is 4100mA output with a max output power of 96 watts. This driver will operate any LED series of parallel string of LEDs designed for constant voltage input of 24V. This LED Driver is dimmable with 0-10V dimming and delivers smooth flicker-free linear dimming down to 1% with most LED's and a wide variety of compatible dimmers. It is IP66 rated and UL 8750 Approved, and Class 2, Class P rated.

Magnitude SOLIDRIVE Max Constant Voltage LED Driver Specification Sheet

Magnitude SOLIDRIVE Max Constant Voltage LED Driver Installation Instructions

Magnitude SOLIDRIVE Max Constant Voltage LED Driver Dimmer Compatibility
