Zinc Plated Steel KV Bracket With Captive WC2/WC3

Duro Dyne SKU: 31075
Duro Dyne Zinc Plated Steel KV Bracket With Captive WC2/WC3

Zinc Plated Steel KV Bracket With Captive WC2/WC3

Duro Dyne SKU: 31075
Regular price $3.43
/
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

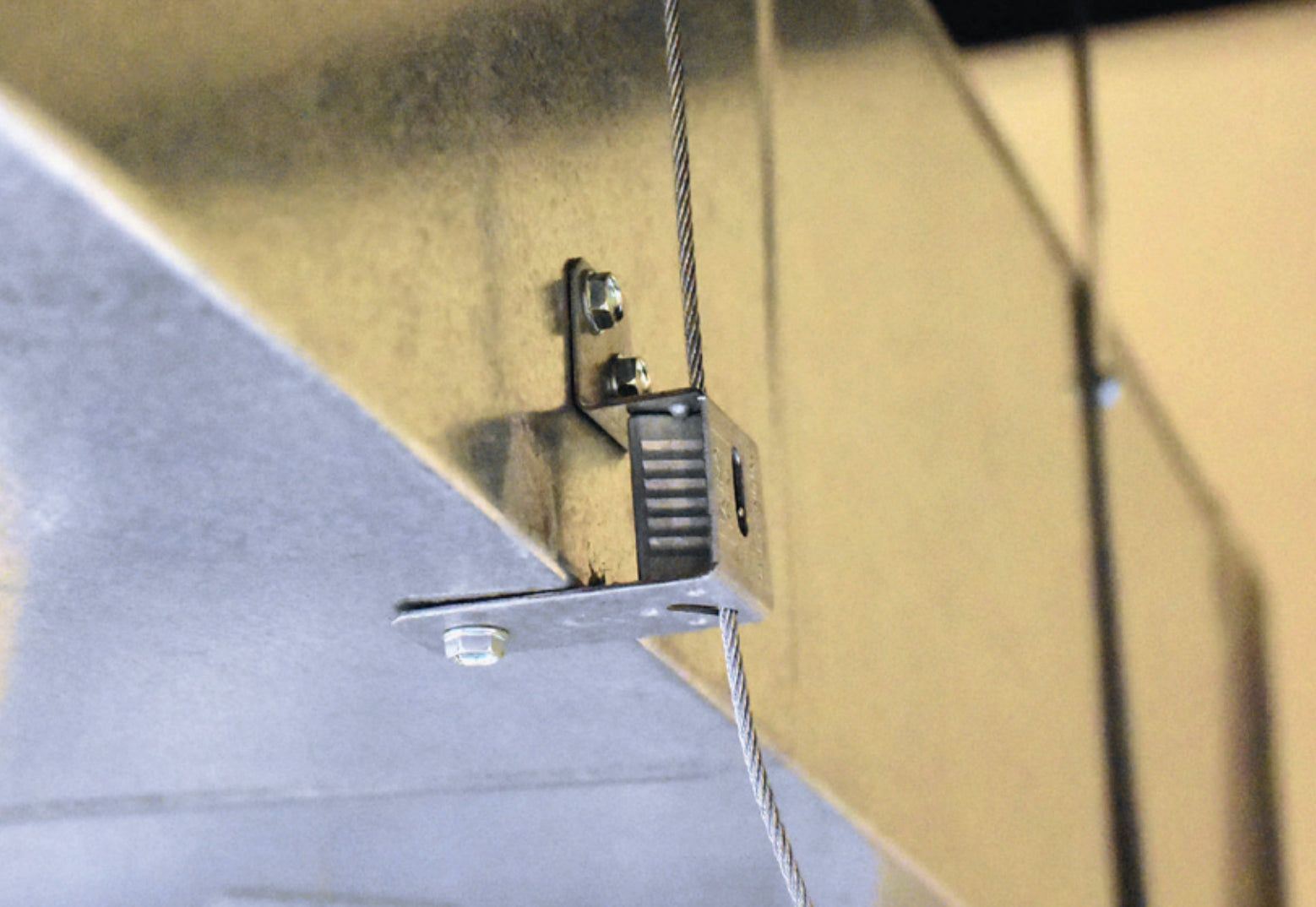

The Dyna-Tite suspension system utilizes cable locks and wire rope to secure ductwork and equipment. This method has been shown to reduce installation time and improve safety at the jobsite when compared to traditional hanging methods such as threaded rod, perforated strap, and band iron. The KV bracket enhances the Dyna-Tite suspension system by the addition of an integral bracket, which fastens the cable lock to the duct with sheet metal screws. Once the KV bracket is attached to the duct, the wire rope “drop” is passed into the entry hole at the top of the bracket, through the cable lock, and out the exit hole at the bottom. The locking teeth inside the cable lock engage the wire rope and secure the ductwork in place.

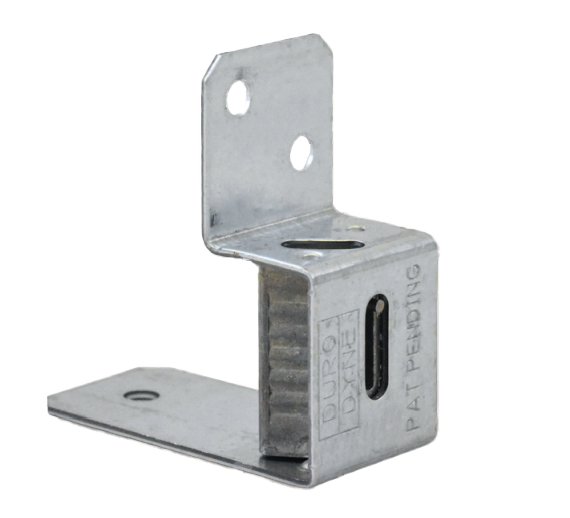

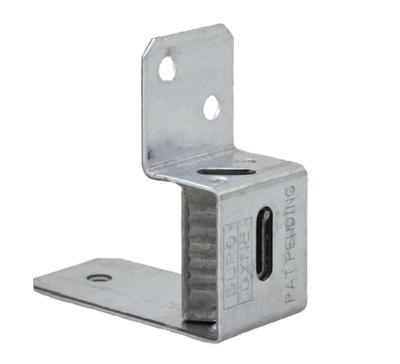

This is Duro Dyne KVFDM (31075), a zinc plated steel KV bracket with captive for WC2/WC3 (RWC2/RWC3) wire ropes and WC2-CL6 (KL75) and WC3-CL12 (KL100) cable locks.

Green Electrical Supply is here to help you maximize your green® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
