Name: 20/30/35 Watt Selectable 120-277V 2x2 LED Flat Panel 3500K/4000K/5000K
Brand: Halco Lighting Technologies
SKU: 90519
Price: 50.63 USD
Availability: InStock

Halco Lighting Technologies 20/30/35 Watt Selectable 120-277V 2x2 LED Emergency Backup Flat Panel 3500K/4000K/5000K

DLC Premium Listed, IP20, TAA Compliant, Title 24 Compliant

Price

Color Temp

Selectable

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":45719385833716,"title":"Selectable","option1":"Selectable","option2":null,"option3":null,"sku":"90519","requires_shipping":true,"taxable":true,"featured_image":{"id":42400966344948,"product_id":8816146415860,"position":1,"created_at":"2024-08-07T15:17:46-04:00","updated_at":"2024-08-07T15:17:47-04:00","alt":"Halco Lighting Technologies 20\/30\/35 Watt Selectable 120-277V 2x2 LED Emergency Backup Flat Panel 3500K\/4000K\/5000K","width":1041,"height":732,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Halco-2x2-Flat-Panel.jpg?v=1723058267","variant_ids":[45719385833716]},"available":true,"name":"20\/30\/35 Watt Selectable 120-277V 2x2 LED Flat Panel 3500K\/4000K\/5000K - Selectable","public_title":"Selectable","options":["Selectable"],"price":5063,"weight":2132,"compare_at_price":null,"inventory_management":"shopify","barcode":"807154905195","featured_media":{"alt":"Halco Lighting Technologies 20\/30\/35 Watt Selectable 120-277V 2x2 LED Emergency Backup Flat Panel 3500K\/4000K\/5000K","id":35011246948596,"position":1,"preview_image":{"aspect_ratio":1.422,"height":732,"width":1041,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/Halco-2x2-Flat-Panel.jpg?v=1723058267"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

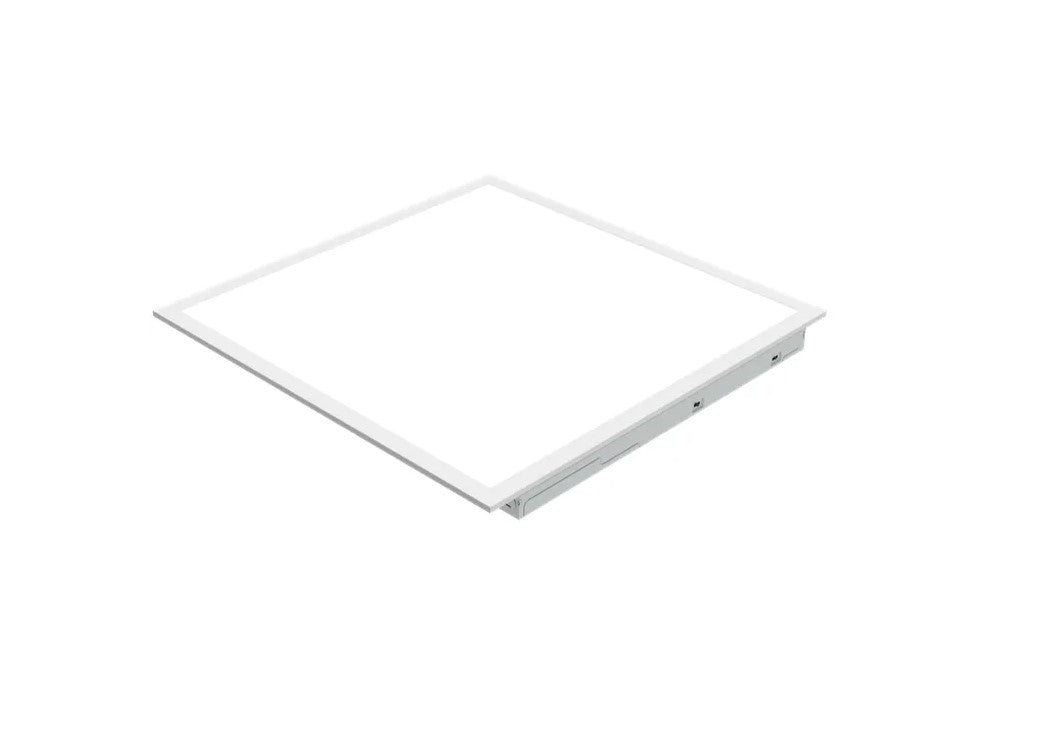

The Halco Flat Panel Series is a family of highly efficient, versatile, configurable recessed fixtures, designed for recessed applications. The DLC Premium listed panels offer lumen output and color temperature selectability, making their versatility and simple aesthetic design perfect for educational, commercial and retail and applications.

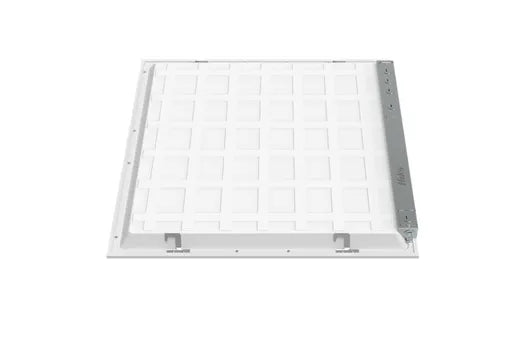

This is the Halco ProLED FPL-22-LS-CS-UNV (90519). This 2x2 LED Flat Panel consumes a selectable 20/30/35 watts of 120-277 volt energy and the driver has a power factor of 90%. The 90519 generates an average of 2,735-4,631 lumens - that's an efficacy of 128-145 lm/W with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This selectable LED flat panel can change between 3500K Bright White, 4000K Cool White, and 5000K Daylight with a simple toggle switch located on the back of the fixture, and has a CRI of at least 80. This 2x2 flat light fixture is designed to be compatible with most standard 0-10V dimming controls. All Halco's LED Flat Panel fixtures carry a 5 Year Warranty and are rated for Damp locations.

Specifications

Manufacturer	Halco Lighting Technologies
MPN	FPL-22-LS-CS-UNV
SKU	90519
UPC	807154905195
DLC Product ID	S-PY70HL
Lighting Technology	LED
Wattage	20/30/35 Watts
Voltage	120-277V
Frequency	50/60Hz
Color Temperature (Kelvin)	3500K/4000K/5000K
Lumens	2,735-4,631 Lumens
Efficiency (Lumens Per Watt)	128-145 LPW
Dimmable	Yes, 0-10V Dimming
Beam Angle	115 Degrees
Rated Life	50,000 Hours
CRI (Color Rendering Index)	80 CRI
Power Factor	>0.9
Housing	Steel Housing, Aluminum Frame
Lens	Polymethyl Methacrylate

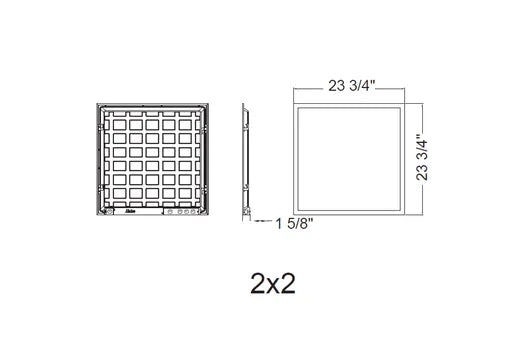

Dimensions	23-3/4" x 23-3/4" x 1-5/8"
Environment	Damp Location
Certifications	DLC Premium Listed, FCC Compliant, IP20, TAA Compliant, Title 24 Compliant
Warranty	5 Years

Wattage	20 Watts
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
Lumens	2,735 Lumens	2,857 Lumens	2,871 Lumens
Efficiency (Lumens Per Watt)	136 LPW	145 LPW	142 LPW

Wattage	30 Watts
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
Lumens	3,875 Lumens	4,085 Lumens	4,050 Lumens
Efficiency (Lumens Per Watt)	131 LPW	142 LPW	136 LPW

Wattage	35 Watts
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
Lumens	4,385 Lumens	4,631 Lumens	4,561 Lumens
Efficiency (Lumens Per Watt)	128 LPW	139 LPW	134 LPW

Documents

Halco Lighting Technologies 2x2 Selectable LED Flat Panel Specification Sheet

Halco Lighting Technologies 2x2 Selectable LED Flat Panel Installation Instructions

Halco Lighting Technologies 2x2 Selectable LED Flat Panel DLC Product Listing
