2x4 30/35/45W Selectable BackLit LED Dimmable Flat Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 90365
Halco Lighting Technologies 2x4 30/35/45W Selectable BackLit LED Dimmable Flat Panel 3500/4000/5000K Selectable

2x4 30/35/45W Selectable BackLit LED Dimmable Flat Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 90365
  • DLC Listed
/
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Halco Lighting Technologies continues to expand their ProLED line of incredible LED products. The ProLED Color and Wattage Selectable Backlit Panel Series replaces 9 products with just 3, allowing the user to select from 3 different color temperatures and 3 different wattages in either 1x4, 2x2, or 2x4 size. Reducing the need to carry multiple products, ProLED Select Backlit panels are lightweight and feature a low-profile side mount driver design to save space during shipping and installation. Selecting the perfect look and feel for your application using a simple switch on the driver enclosure couldn't be any easier. These LED panels provide a reliable performance in a budget-friendly design.

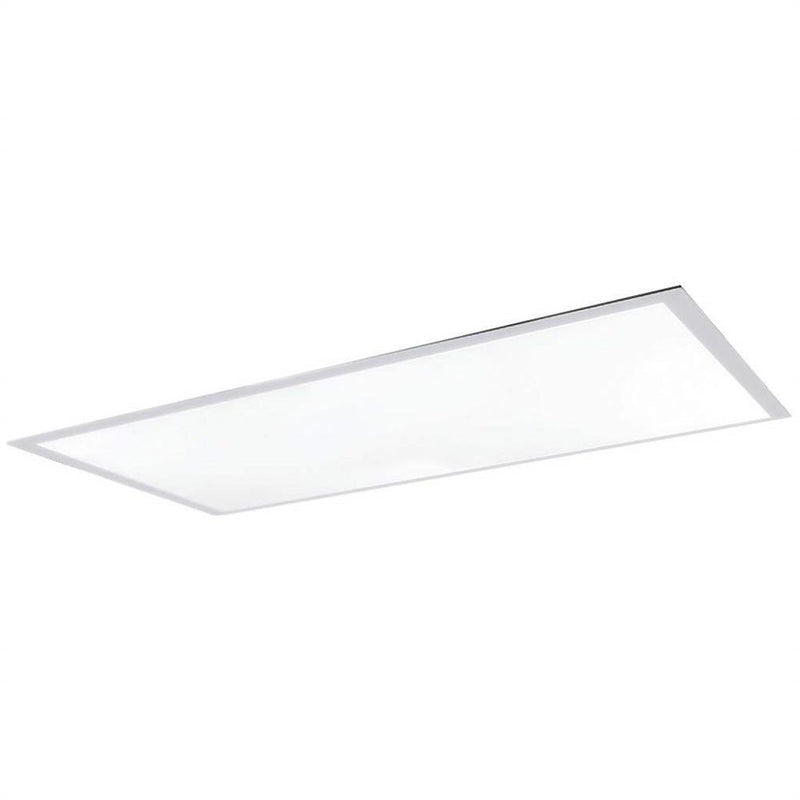

This is the Halco ProLED BPL-24-WS-CS-U (90365). This lightweight 2x4 LED Flat Panel consumes a selectable 30/35/45 watts of 120-277 volt energy and the driver has a power factor of 90%. The 90365 generates an average of 3864-5544 lumens - that's an efficacy of 117-134 lm/W with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This low profile designed LED flat panel can change between 3500K Bright White, 4000K Cool White, and 5000K Daylight with a simple toggle switch located on the back of the fixture, and has a CRI of at least 80. This 2x4 flat light fixture is designed to be compatible with most standard 0-10V dimming controls. All Halco's LED Flat Panel fixtures carry a 5 Year Warranty and are rated for Damp locations.

Manufacturer Halco Lighting Technologies
MPN BPL-24-WS-CS-U
SKU 90365
UPC 807154903658
Lighting Technology LED
Voltage Universal 120-277V
Dimmable Yes, 0-10V Dimming
Rated Life 50,000 Hours L70
CRI (Color Rendering Index) 80+ CRI
Power Factor >0.9
Housing Aluminum Frame
Lens Diffused Lens
Operating Temperature -20°C to 40°C
Dimensions 23.75"x47.8125"x1.3125"
Certifications ETL Listed, DLC Listed, FCC, RoHS Compliant
DLC Product ID PL678ITUVCW2
Environment Dry/Damp Location, IC Rated
Warranty 5 Year Limited Warranty



Wattage 30 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,864 Lumens 4,006 Lumens 3,955 Lumens
Efficiency (Lumens Per Watt) 129 LPW 134 LPW 132 LPW


Wattage 35 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 4,318 Lumens 4,505 Lumens 4,426 Lumens
Efficiency (Lumens Per Watt) 123 LPW 129 LPW 126 LPW


Wattage 45 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 5,284 Lumens 5,544 Lumens 5,426 Lumens
Efficiency (Lumens Per Watt) 117 LPW 123 LPW 121 LPW

Halco Selectable Backlit LED Flat Panel Specification Sheet

Halco Selectable Backlit LED Flat Panel Installation Instructions

Halco Selectable Backlit LED Flat Panel DLC Product Listing
