The Enterlites controlled receptacle features an internal relay for switching the plug load on/off according to the sensor’s occupancy or vacancy detection. It should be installed to control outlets used for task lighting, monitor, flat screen TV, and non-essential equipment in private offices, conference rooms, open offices, lunch rooms and break rooms and other areas in commercial buildings.

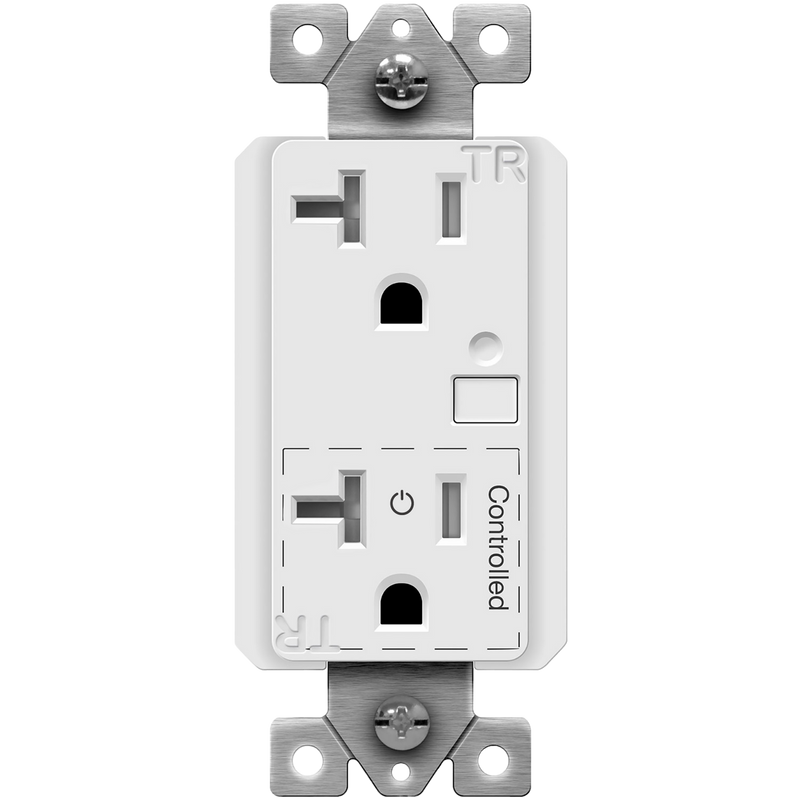

The PL20R and PLBPC are Wireless Plug Load Controls that are code compliant with 2013 California Title 24. The powerful 20A Tamper Resistant Smart Duplex Receptacle has Controlled and Uncontrolled receptacles, an LED indicator, and a Manual override button. The Controlled Plug Load will turn ON when motion is detected by the ceiling sensor and will turn off 30 minutes after the room is vacated. The PIR ceiling sensor is battery operated so there is no need for expensive in-wall wiring between the sensor and receptacles. Each PIR sensor can pair up more than the 6 recommended receptacles with a wireless range up to 24' so it can operate in large rooms such as conference rooms and lobbies.

Check with your electrician for maximum receptacles allowed per branch circuit. A PLBPC sensor can control PL20R receptacles that are installed on different branch circuits. See Installation Instructions for more information.

Enerlites Wireless Plug Load Control Receptacle Specification Sheet

Enerlites Wireless Plug Load Control Receptacle Installation Instructions
