Emergence White Thermoplastic Face LED LightBar Remote Capable Combination Exit and Emergency Sign

Halco Lighting Technologies SKU: 97130
Halco Lighting Technologies Emergence White Thermoplastic Face LED LightBar Remote Capable Combination Exit and Emergency Sign White Green
Halco Lighting Technologies Emergence White Thermoplastic Face LED LightBar Remote Capable Combination Exit and Emergency Sign White Red

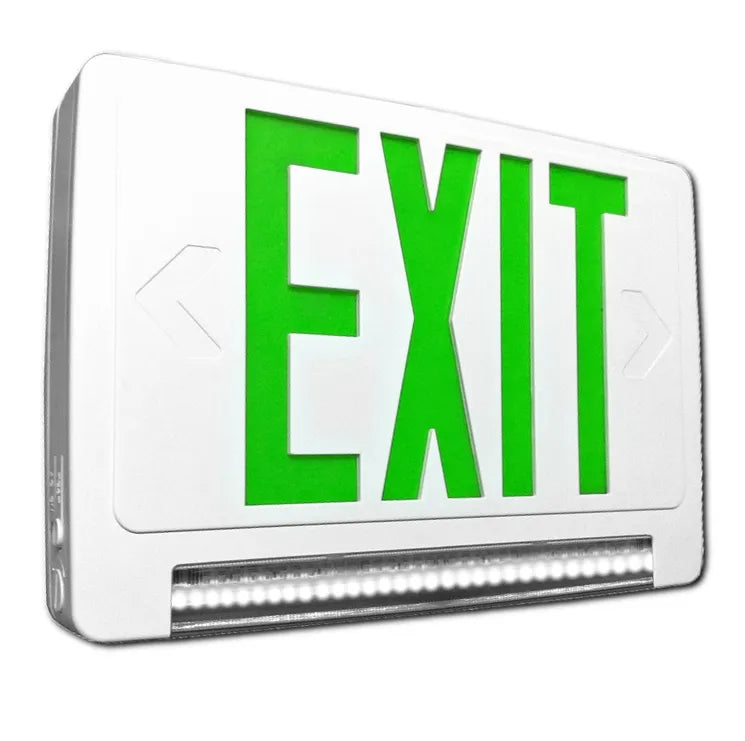

Halco Lighting Technologies Emergence White Thermoplastic Face LED LightBar Remote Capable Combination Exit and Emergency Sign White Green

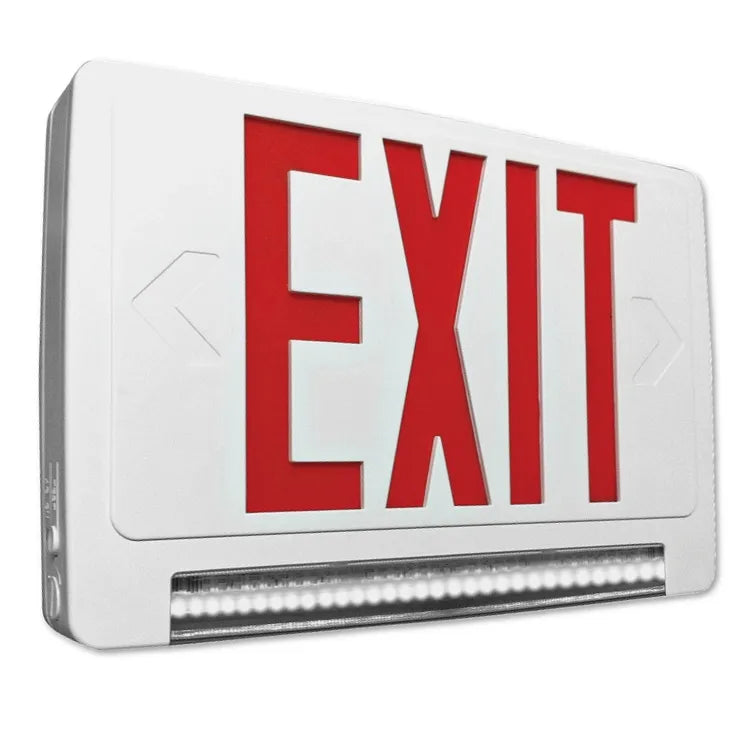

Halco Lighting Technologies Emergence White Thermoplastic Face LED LightBar Remote Capable Combination Exit and Emergency Sign White Red

Emergence White Thermoplastic Face LED LightBar Remote Capable Combination Exit and Emergency Sign

Halco Lighting Technologies SKU: 97130
  • Title 20 Compliant
/
Finish Color
Color
Lead time is 3-5 business days to ship ARO
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

Halco's Emergence Series LightBar Combination Exit Sign/EM Unit offers a low-profile code compliant solution for hallway, stairwell, and other Life Safety applications. The field adjustable lightbar incorporates ultra-bright energy efficient LEDs to yield a combination Exit and Emergency unit perfect for restricted spaces above a doorway. Halco's LightBar Combo is available with a red or green stencil face, field-selectable single/double face, and universal ceiling/wall mount. The fixture includes field-selectable chevron indicators as well as universal input voltage and comes standard with remote capacity. The low profile design with included canopy makes it ideal to mount on ceilings or walls in surface or top mount configurations, indicating the path of egress for a minimum of 90 minutes after a power loss.

Remote Capable Compatible Fixtures: 97012 and 97118

Specifications
Manufacturer Halco Lighting Technologies
Color/ Letter Color White with Green Lettering White with Red Lettering
MPN EMG-LBCU-G-WH-RC EMG-LBCU-R-WH-RC
SKU 97130 97129
UPC 807154971305 807154971299
Lighting Technology LED
Wattage 4.5 Watts
Remote Capable Wattage 1 Watts
Voltage 120-277 V
Output Voltage 9.6 VDC
Lumens 184 Lumens
Frequency 60 HZ
Battery Maintenance Free NiCad
Recharge Time <24 hours
Testing Function Manual Test Button w/Charging Indicator
Protections Low Voltage Disconnect Battery Protection
Rated Life 100,000 Hours
Mounting Ceiling or Wall - Canopy Included
Housing Thermoplastic
Operating Temperature 0°C to 50°C
Dimensions 12.8" H x 9.0" L x 2.5" W
Certifications cULus, NFPA 101 and NFPA 70, Title T20 Compliant, RoHS
Environment Damp or Dry Location
Warranty 2 Years
Documents

Halco Thermoplastic Face LED LightBar Remote Capable Combination Exit and Emergency Sign Specification Sheet

Halco Thermoplastic Face LED LightBar Remote Capable Combination Exit and Emergency Sign Installation Instructions

Halco Thermoplastic Face LED LightBar Remote Capable Combination Exit and Emergency Sign Manual Test Instructions
