Fulham Company Group is a leading global provider of intelligent, sustainable commercial lighting components and electronics for use in commercial general lighting, parking structure, signage, horticultural, UV and other applications. The company develops and manufactures a variety of award-winning LED and emergency products, as well as legacy products across multiple lighting platforms. Fulham is dedicated to intelligent, sustainable lighting solutions that give their users the power to control their light.

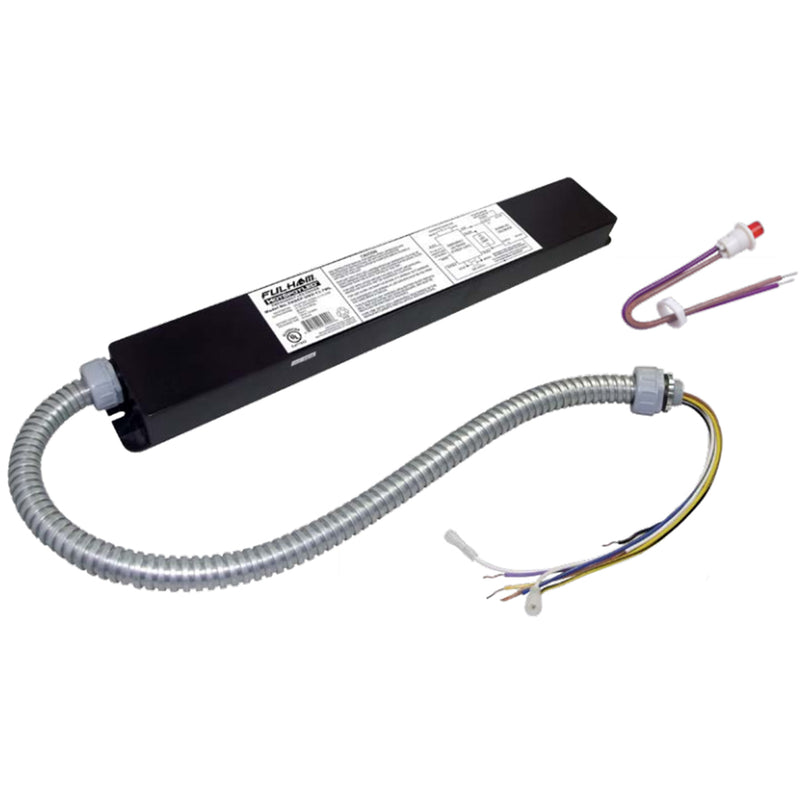

Fulham introduces their HotSpot LED Emergency Driver. The Constant Power Emergency LED Driver provides safe and efficient LED lighting during any emergency situation, with five different wattage options available. During a power outage, the innovative HotSpot LED emergency driver activates the LED luminaire it is installed to, providing efficient emergency lighting. The constant power design guarantees the desired lumen output. The HotSpot LED emergency driver is cULus classified and with the emergency driver and batter combined in a single unit, it can be installed into virtually any LED luminaire and can be field installed in minutes. It can be mounted inside or on top of the luminaire, or even in a remote mount configuration.
This constant power emergency LED driver is the FHSCP-UNV-17WL, which has an input voltage of 120-277V. This driver runs on 17 watts, with an output of 2700 lumens and an output voltage of 10-55VDC. Another feature of this LED emergency driver is the included illuminated LED test switch which allows for simple monitoring an required compliance testing. This driver has an estimated run time of 90 minutes once it turns on during an emergency situation. The ambient operating temperature is 0°C - 50°C. This emergency driver comes with a 5 year warranty and a long life, maintenance-free NiCd battery that fully recharges in 24 hours.
|Input Wattage||7.9 Watt|
|Output Wattage||17 Watt|
|Operating Temperature||0°C to 50°C|
|Rated Life||50,000 Hours|
|Emergency Operation||90 Minute Run Time|
|Dimensions||19.2" L x 2.6" W x 1.5" H|
|Certifications||Class 2, Title 20 Compliant|
|Environment||Dry and Damp Location|
|Warranty||5 Year Limited|
