SUGGESTED ALTERNATE: 17 Watt 20-50VDC Output 120-277V Input 90 Minute LED Emergency Backup Driver
Universal Lighting Technologies' Everline LED drivers are ideal for maximum energy savings and control applications. Now, Universal is introducing their line of code-compliant Emergency LED Drivers for various applications, including downlighting, high bays, and low profile applications. Now, when your power fails, you can depend on Universal LED Emergency Drivers to operate your LED fixtures at a reduced lumen level in order to provide a safe environment.

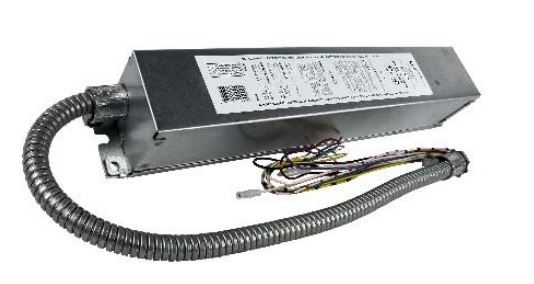

This product is Universal's 20W Emergency LED Driver for highbay applications, part number ELD20UNVL. This universal input (120-277V) emergency LED driver works in conjunction with an AC LED driver that has an output current not to exceed 5.0A for LV, and 2.0A for MV and HV units. The emergency driver consists of a high-temperature nickel-cadmium battery, charger and electronic circuitry in one case. When AC power fails, the driver immediately switches to the emergency mode, operating the LEDs at a reduced lumen output. The ELD20UNVL can deliver up to 20 watts to an LED load for 90 minutes. When AC power is restored, the emergency driver automatically returns to the charging mode. It takes 24 hours for the battery to completely recharge. If used in an emergency-only fixture, then no AC driver is necessary.
The ELD20UNVL does not affect normal fixture operation and may be used with either a switched or unswitched fixture. If a switched fixture is used, an unswitched hot lead must be connected to the emergency driver. The emergency driver must be fed from the same branch circuit as the AC driver. Installation is not recommended with fixtures where the ambient temperature may fall below 0°C. The product is suitable for indoor and damp locations. An illuminated test switch to monitor the charger and battery, as well as installation hardware will be included. These LED drivers carry a 5 year limited warranty.
|Output Current||5.0A for LV Units; 2.0A for MV and HV Units|
|Input Wattage||8.5 Watt|
|Output Wattage||20 Watt|
|Operating Temperature||0°C to 55°C|
|Emergency Operation||90 Minute Run Time|
|Dimensions||16.6" L x 2.8" W x 2.85" H|
|Certifications||Class 2, Title 20 Compliant|
|Environment||Dry and Damp Location|
|Warranty||5 Year Limited|
