ESL-EMG-SL6-CSC-18W 18 Watt LED 100-347V Emergency Driver

ESL Lighting SKU: ESL-EMG-SL6-CSC-18W
ESL Lighting ESL-EMG-SL6-CSC-18W 18 Watt LED 100-347V Emergency Driver

ESL-EMG-SL6-CSC-18W 18 Watt LED 100-347V Emergency Driver

ESL Lighting SKU: ESL-EMG-SL6-CSC-18W
/
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

Driver Cross Reference:
Universal ELD20UNVL
Keystone KT-EMRG-LED-20SD-2000-EN /DF
Fulham FHSCP-UNV-17WL

A commercial building's emergency and exit light requirements mandate active lights in egress exit routes. We offer a wide range of hard wired and/or battery backup emergency lighting that includes LED emergency lights, LED emergency exit signs, LED emergency light combos, LED emergency tube lights and LED emergency retrofit kits, drivers and inverters to meet your needs.

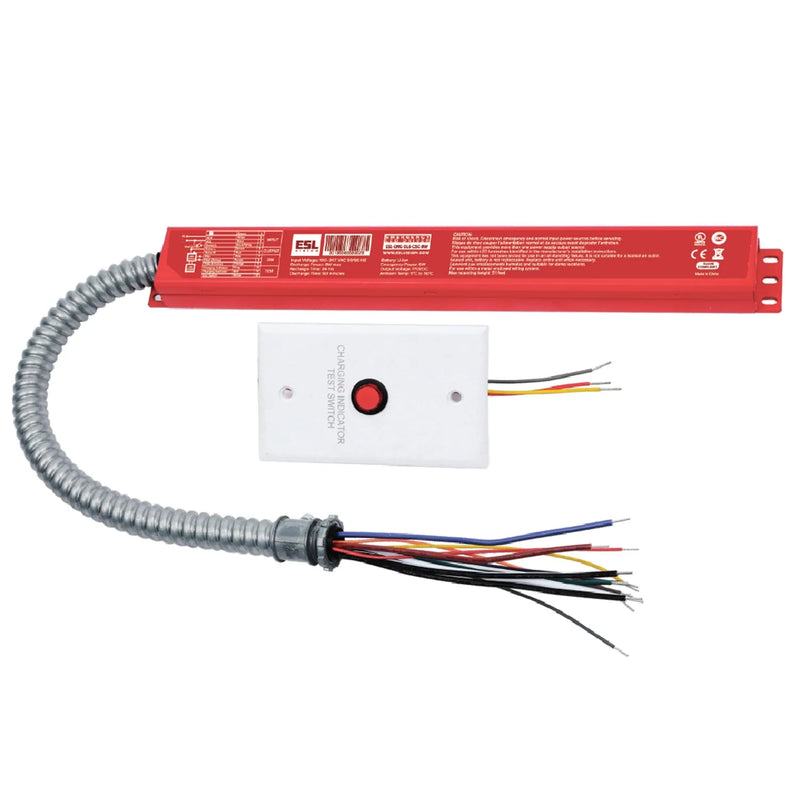

Emergency light fixtures automatically switch on when power goes out to illuminate pathways toward egress exits. The 18 Watt ESL-EMG-SL6-CSC-18W ESL Lighting Emergency Driver has an AC input rating of 100-347V and a rated current of 150mA (max), offering a maximum emergency output power of 18 watts, a 170VDC output voltage, and 90 minutes of emergency operation. Its output short and open protection ensure safety, while its charging time of 24 hours and 1000 cycles provides long-lasting operation. Operating temperature is 41° to 122°F (5° to 50°C), and has a 5 year warranty.

Specifications
Manufacturer ESL Lighting
MPN ESL-EMG-SL6-CSC-18W
SKU ESL-EMG-SL6-CSC-18W
UPC 00196065689035
Lighting Technology LED
Wattage 18 Watts
Voltage 100-347VAC
Voltage Output 170VDC
Input Current 150mA
Output Current 20-250mA
Input Power 10 Watts
Emergency Operation 90 Minutes
Charging Time 24 Hours
Charging Cycles 1,000
Operating Temperature 5° to 50°C
Dimensions 3.59" x 1.5" x 0.99"
Certifications FCC Compliant, RoHS Compliant
Environment Damp Location
Warranty 5 Year Standard



Documents

ESL Lighting LED Emergency Driver Specification Sheet

ESL Lighting LED Emergency Driver Installation Instructions

Green Electrical Supply is here to help you maximize your green® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
