Single or Double Facing Battery Back Up Surface Mount LED Edge-Lit Exit Sign

Keystone Technologies SKU: KT-EX-EL1-WH3GL-SU

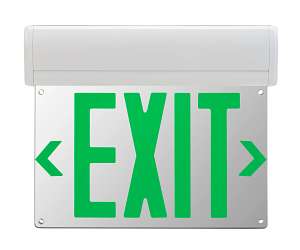

Keystone Technologies Single or Double Facing Battery Back Up Surface Mount LED Edge-Lit Exit Sign Green

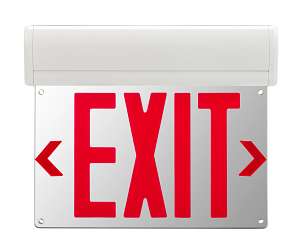

Keystone Technologies Single or Double Facing Battery Back Up Surface Mount LED Edge-Lit Exit Sign Red
Keystone Technologies Single or Double Facing Battery Back Up Surface Mount LED Edge-Lit Exit Sign Green
Keystone Technologies Single or Double Facing Battery Back Up Surface Mount LED Edge-Lit Exit Sign Red

Single or Double Facing Battery Back Up Surface Mount LED Edge-Lit Exit Sign

Keystone Technologies SKU: KT-EX-EL1-WH3GL-SU
/
Color
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

A commercial building's emergency and exit light requirements mandate active lights in egress exit routes. We offer a wide range of hard wired and/or battery backup emergency lighting that includes LED emergency lights, LED emergency exit signs, LED emergency light combos, LED emergency tube lights and LED emergency retrofit kits, drivers and inverters to meet your needs.

Introducing Keystone Technologies line of Smart Safe Exit Signs, Combo Units and Emergency Lights.

The Keystone Technologies KT-EX-EL1-WH3XL-SU, including Single or Double Facing Configurations in Red or Green Lettering. Featuring Surface Mounting for Top, Side or Back. Rated for 120-277V input voltage and includes a built-in test switch and provides 90 minutes of Emergency Power. The white Thermoplastic Housing and Aluminum Exit Panel with Mirrored Backing measures 11.61" W by 1.81" Depth by 7.17" H. Certifications include UL 924, Title 20 Approved and is rated for damp locations with a 5-year warranty.

Specifications
Manufacturer Keystone
Finish Color White
MPN KT-EX-EL1-WH3GL-SU KT-EX-EL1-WH3RL-SU
SKU KT-EX-EL1-WH3GL-SU KT-EX-EL1-WH3RL-SU
UPC 843654165066 843654165059
Letter Color Green Red
Lighting Technology LED
Wattage 1.7 Watts
Voltage 120-277V
Run Time 90 Minutes
Charging Time 24 Hours
Battery NiMH-500mAh
Testing Function Manual Test Button w/Charging Indicator
Mounting Universal J-Box
Housing Thermoplastic
Dimensions 11.61"L x 1.81"W x 7.17"H
Operating Temperature 0°C (32°F) to 40°C (104°F)
Environment Damp Location Rated
Warranty 5 Year Warranty



Documents

Keystone LED Battery Back Up Surface Mount LED Edge-Lit Exit Sign Specification Sheet

Keystone Single or Double Facing Battery Back Up Surface Mount LED Edge-Lit Exit Sign Installation Instructions
