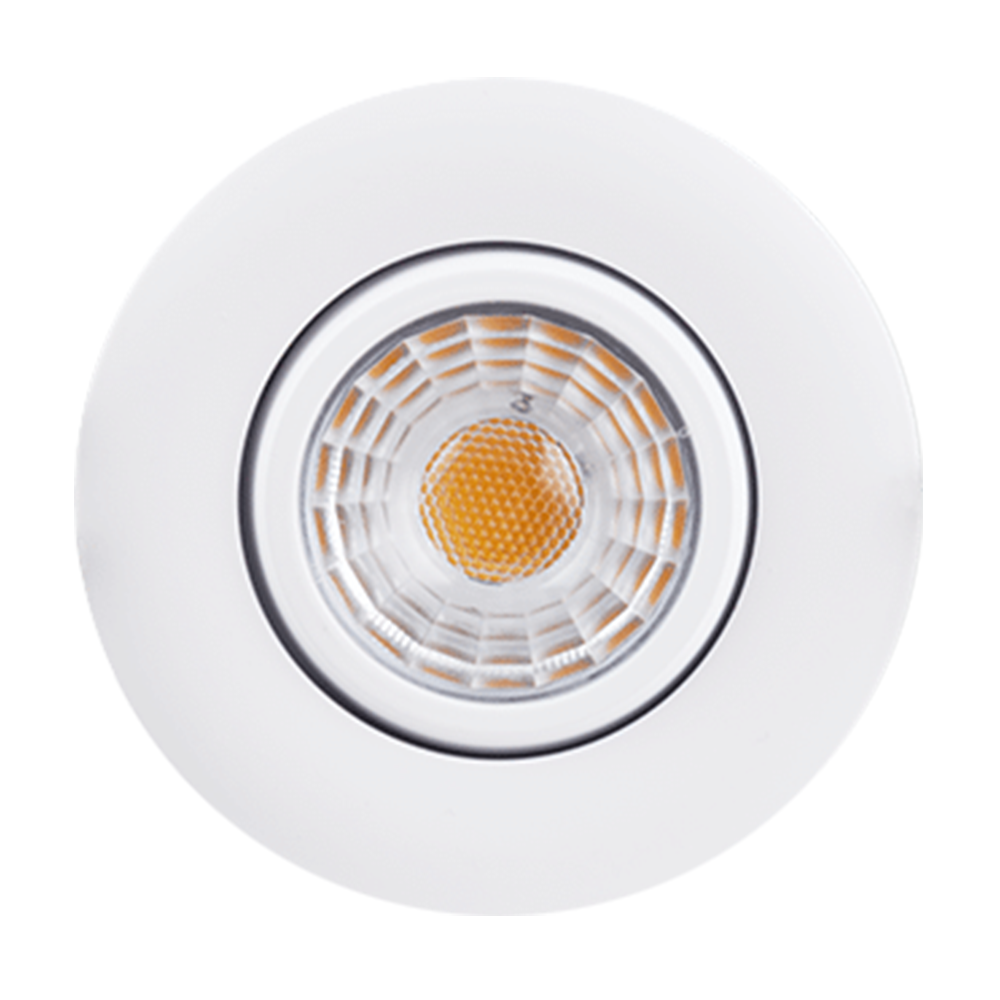

1 Inch miniFIT LED Gimbal Downlight 120V Line Voltage Dimming White Trim

Green Creative SKU: 98439
Green Creative 1 Inch miniFIT LED Gimbal Downlight 120V Line Voltage Dimming White Trim 2700K Warm White White
Green Creative 1 Inch miniFIT LED Gimbal Downlight 120V Line Voltage Dimming White Trim

1 Inch miniFIT LED Gimbal Downlight 120V Line Voltage Dimming White Trim

Green Creative SKU: 98439
  • Energy Star Qualified, Damp Location Rated, JA8 Compliant, Title 24 Compliant
Regular price $28.58
Color Temp
Finish Color
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Options for LED recessed lighting fixtures, whether installing canless wafer light kits or retrofitting your current can lights, have grown rapidly. Canless wafer LED light kits can be used for remodel or new construction LED recessed ceiling downlight projects. LED retrofit downlights are installed utilizing your existing recessed can housing.

Get the right light in the right place with Green Creative's miniFIT gimbals. The gimbals come with a 38° beam acrylic optic, producing a consistent, precise beam of light. In addition, they rotate 360 degrees and tilt up to 30 degrees so you can mount them in any orientation in the ceiling and still aim the light to graze textured walls, highlight artwork, or emphasize architectural features. The 1 Inch miniFIT gimbals are available in 3 color temperatures, 2700K, 3000K and 4000K. These LED mini gimbals are perfect for residential, retail and hospitality applications.

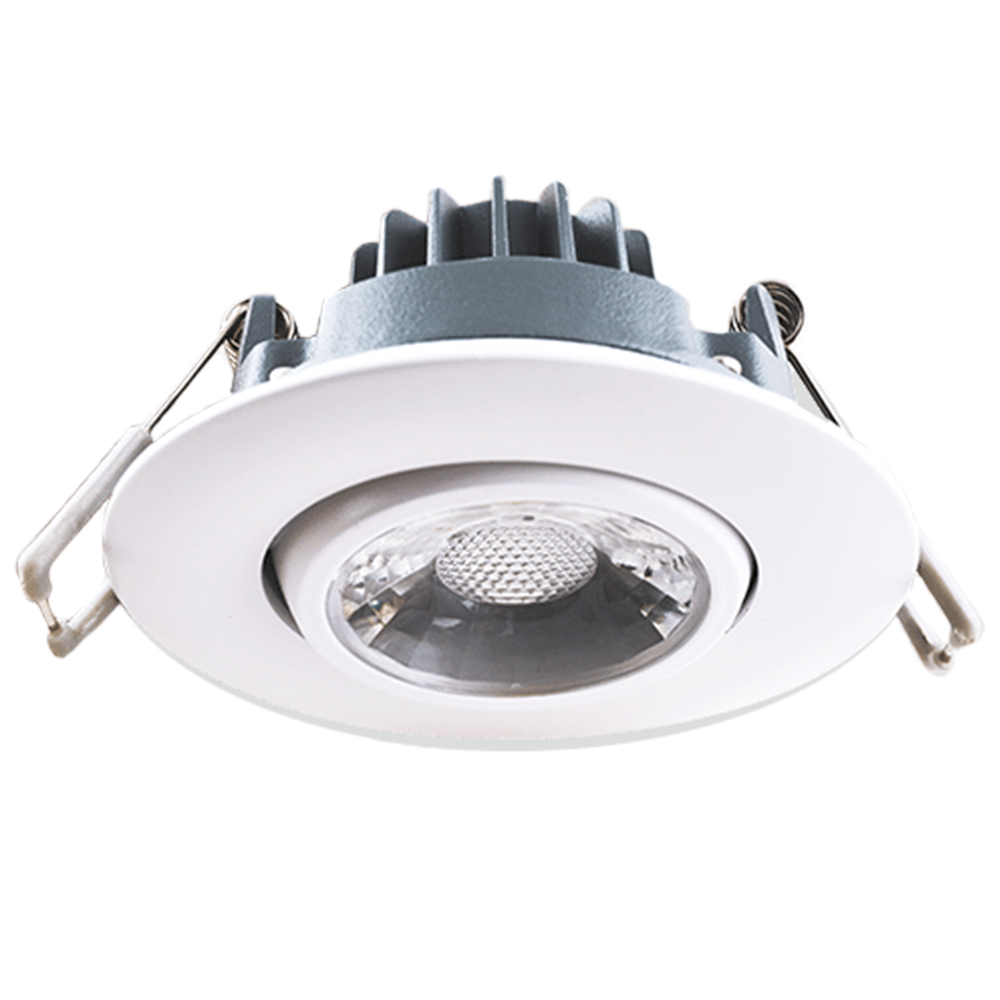

The 1 Inch LED Gimbal miniFIT recessed light kit produces 400 lumens from just 5 watts. The LEDs are binned to exceed ENERGY STAR requirements, providing superior fixture-to-fixture color uniformity. This recessed downlight is rated for 50,000 hour life at which time the LEDs can be expected to produce 70% of their initial light output with no perceptible color change. Spring action clips accommodate ceiling thicknesses between ½” to 2”. Die cast aluminum optical assembly with poly-carbonate lens fits in spun aluminum trim for a nice clean look. The downlight has an operating voltage of 120 and a 50/60 Hz driver. This Gimbal miniFIT is TRIAC and ELV dimmable to 10%.


  • New and retrofit construction
  • Shallow plenum applications: including soffits, bulkheads, and casework
  • Residential & Hospitality
  • Retail & Office
Manufacturer Green Creative
MPN GIMB1/927/FL/DIM120 GIMB1/930/FL/DIM120 GIMB1/940/FL/DIM120
SKU 98439 98440 98441
UPC 45079984394 45079984400 45079984417
Color Temperature (Kelvin) 2700K Warm White 3000K Warm White 4000K Cool White
Lumens 320 Lumens 350 Lumens 390 Lumens
Efficiency (Lumens Per Watt) 64 LPW 70 LPW 78 LPW
Lighting Technology LED
Wattage 5 Watt
Voltage 120 Volt
Input Current 80mA
Frequency 50/60Hz
Dimmable TRIAC and ELV Dimmable to 10%
Beam Angle 38 Degrees
Rated Life 50,000 Hours (L70)
CRI (Color Rendering Index) 90 CRI
Power Factor >.90
THD (Total Harmonic Distortion) Power <20%
Finish Color White
Housing Cast Aluminum
Lens Polycarbonate Lens
Operating Temperature -4°F to 95°F (-25°C to 35°C)
Fixture Dimensions 1-7/8" Gimbal Diameter x 2-1/2" Outer Diameter x 1-5/8" D
Driver Dimensions 2-3/4" L x 2" H x 1-3/4" W
Cable Length 12-7/8" L
Certifications Energy Star, JA8 Certified, Title 24 Compliant
Environment Damp Location
Warranty 5 Year
