Get the right light in the right place with Green Creative's miniFIT gimbals. The gimbals come with a 38° beam acrylic optic, producing a consistent, precise beam of light. In addition, they rotate 360 degrees and tilt up to 30 degrees so you can mount them in any orientation in the ceiling and still aim the light to graze textured walls, highlight artwork, or emphasize architectural features. The miniFIT gimbals come in two sizes, 1 inch and 2 inch and both are available in 3 color temperatures, 2700K, 3000K and 4000K. These LED mini gimbals are perfect for residential, retail and hospitality applications.

The miniFIT family is quick and easy to install. Connecting power in the external junction box is a breeze with the push in connectors. Wiring the fixture is even easier with the plenum rated quick connector. The optional new construction plates, keyhole mounting slots and spring clip hooks allow for a simple installation and compliance with local building codes. The sturdy spring action clips will keep the fixture tight to the ceiling, ensuring an aesthetically pleasing installation.

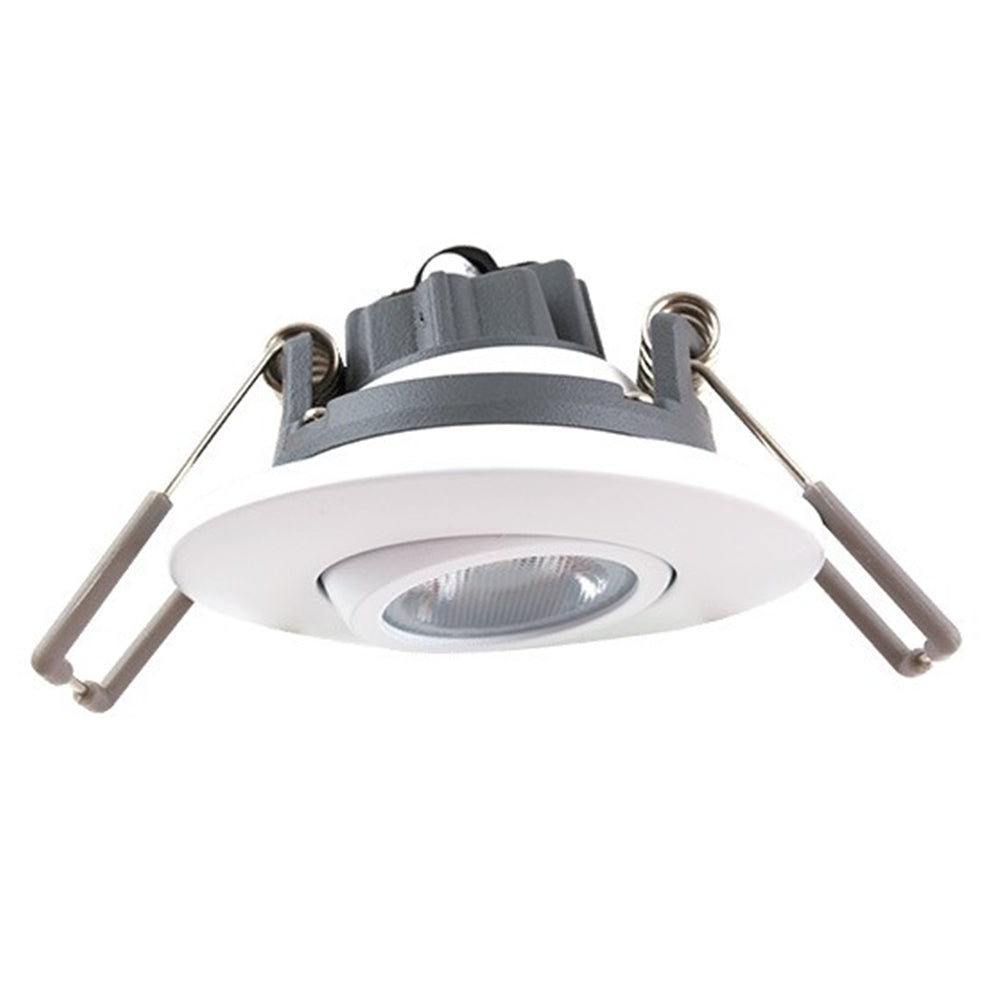

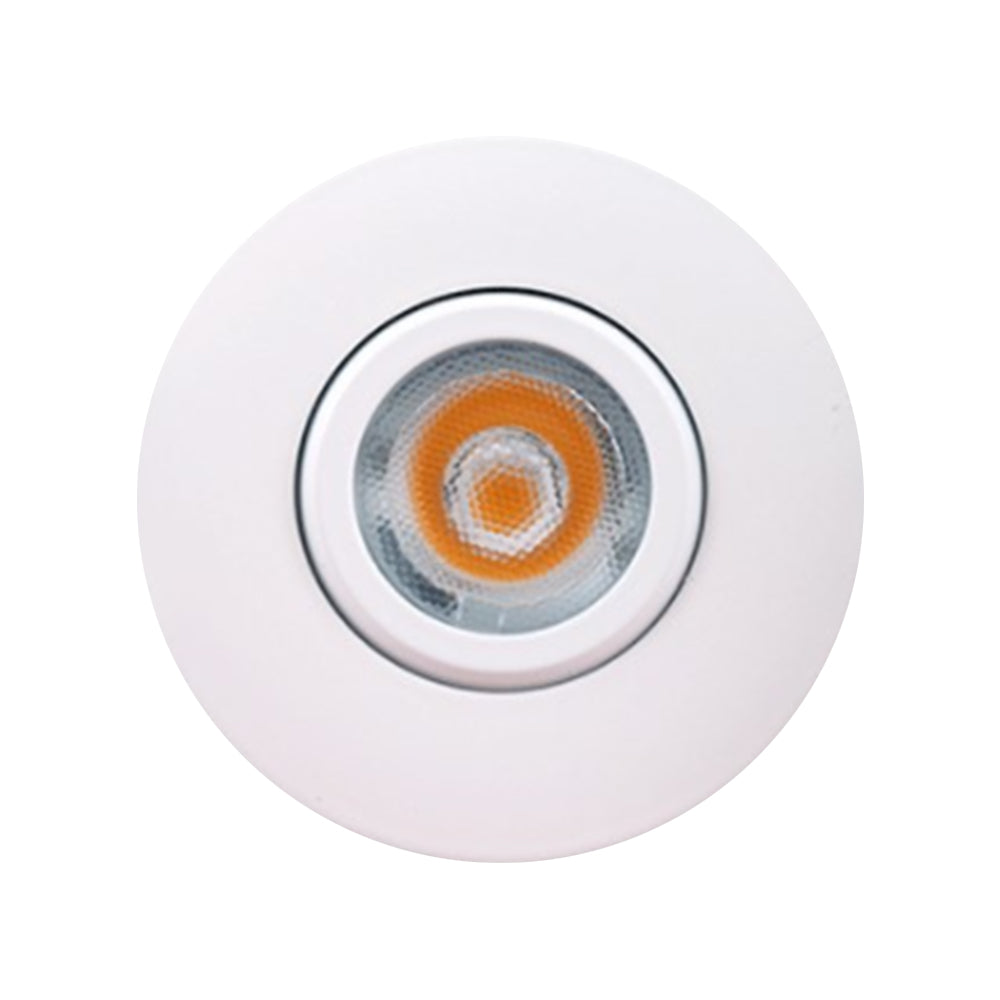

This is a 2 Inch LED Gimbal downlight miniFIT with a white trim. With color temperature options of 2700K, 3000K and 4000K. This LED mini downlight produces 600 lumens from just 8 watts. The LEDs are binned to exceed ENERGY STAR requirements, providing superior fixture-to-fixture color uniformity. This recessed downlight is rated for 50,000 hour life at which time the LEDs can be expected to produce 70% of their initial light output with no perceptible color change. Spring action clips accommodate ceiling thicknesses between ½” to 2”. Die cast aluminum optical assembly with poly-carbonate lens fits in spun aluminum trim for a nice clean look.

This downlight has an operating voltage of 120 and a 50/60 Hz driver. This Gimbal miniFIT is TRIAC and ELV dimmable to 10%.

Installation Instructions

Specification Sheet

Dimmer Compatibility Chart
