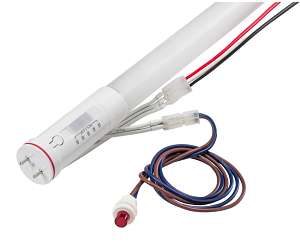

The Keystone Emergency Tube offers five color temperature options and is enhanced with Keystone Color Select, giving you the flexibility to choose from 3000K, 3500K, 4000K, 5000K, and 6500K for a tailored lighting experience. Its unique design incorporates a rechargeable battery into a tube, making it a complete solution for any emergency lighting requirements. With a backup battery providing at least 90 minutes of illumination and reliable Keystone driver quality, this product will give building occupants and owners a sense of security.
Emergency light fixtures automatically switch on when power goes out to illuminate pathways toward egress exits. The KT-LED14.5T8EM-48GC-8CSJ-D Keystone Emergency Type B T8 consumes just 14.5 watts of 120-277 volt energy to produce between 1,900-2,000 lumens of light output. DirectDrive is Keystone’s ballast bypass technology. By bypassing the ballast, a Keystone driver is integrated into the lamp and the lamp is directly wired to the power source.
Manufacturer | Keystone Technologies | ||||
MPN | KT-LED14.5T8EM-48GC-8CSJ-D | ||||
SKU | KT-LED14.5T8EM-48GC-8CSJ-D | ||||
UPC | 843654161303 | ||||
Color Temperature (Kelvin) | 3000K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight | 6500K Daylight |
Lumens | 1,900 Lumens | 1,900 Lumens | 2,000 Lumens | 2,000 Lumens | 2,000 Lumens |
Efficiency (Lumens Per Watt) | 131 LPW | 131 LPW | 138 LPW | 138 LPW | 138 LPW |
Lighting Technology | LED | ||||
Wattage | 14.5 Watts | ||||
Voltage | 120-277V | ||||
Frequency | 60Hz | ||||
Ballast Operation | Type B Ballast Bypass | ||||
Wiring Method | Single Ended | ||||
Bulb Shape | T8 | ||||
Base | G13 Medium Bi-Pin | ||||
Beam Angle | 170 Degrees | ||||
Rated Life | 50,000 Hours | ||||
CRI (Color Rendering Index) | 80 CRI | ||||
Power Factor | >0.5 | ||||
THD (Total Harmonic Distortion) | >35% | ||||
Operating Temperature | -20ºC/-4ºF to 45ºC/113ºF | ||||
Emergency Operation | 500 Lumens for 90 Minutes | ||||
Dimensions | 47.22" MOL x 1.32" MOD | ||||
Nominal Length | 48 Inches | ||||
Certifications | cULus Listed, RoHS Compliant | ||||
Environment | Dry Location | ||||
Warranty | 5 Year Standard |
