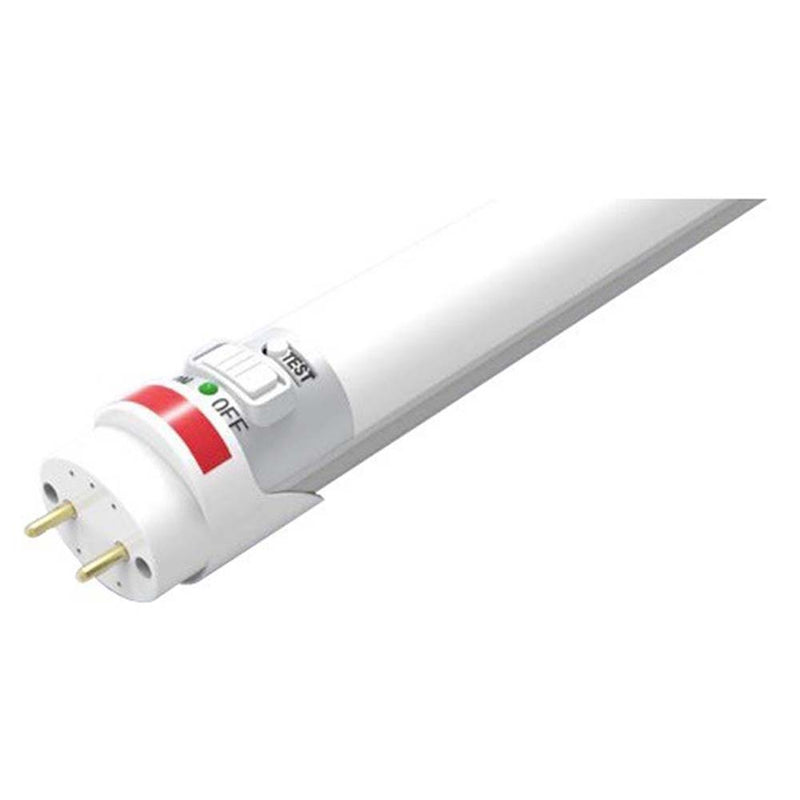

Aleddra’s Gen4 Emergency T8 lamp sets another industry standard as the first self-testing/self-diagnosis T8. The lamp operates as an energy-efficient T8 during normal operation and can be turned on/off via a wall switch. During power outage, it will last over 90 minutes on battery. More importantly, the lamp will automatically self-test for 30 seconds monthly and for 90 minutes annually, thus meeting the emergency lighting audit requirements with no labor cost. This saves a facility management team a tremendous amount of labor from manually testing every single lamp of this kind in its facilities. Should any malfunction be detected during self-testing, such as insufficient battery capacity, the warning indicator on the lamp will flash and alert the team. With its labor saving, the lamp gives the end user the best return on investment and the best emergency lighting option. This lamp also features a manual testing button. Please follow the installation instruction to wire the lamp.
Aleddra's Generation 4 (G4) Emergency LED Linear T8 tubes sets the industry standard as the first emergency T8 tube that is UL 924 compliant with built in self testing or diagnostics. This product can be used as a regular T8 lamp and an emergency tube, which is ideal when upgrading common linear T8 or T12 fluorescent lamps. With two single-end wired sockets, one endcap of the G4 emergency T8 is connected to the emergency power line and another to the wall switch, thus making it easy to turn on and off the T8 through the wall switch. This Emergency T8 tube is a cost-effective option for various emergency lighting applications such as office buildings, schools, hotels, apartments, corridors, and stairs and can replace that expensive emergency ballast.
Aleddra part number LLT-2-EM-T8-G4-8W-(XX)K has built-in lithium batteries that draws power and lasts more than 90 minutes during a power outage. They do feature an easy battery shutoff switch for a long stocking time. This product comes in a 4000K cool white or 5000K daylight color temperature, has a power factor over .92 and consumes just 8 watts of 100 to 277 volt energy. The T8 LED tube is non-dimmable LED light bulb and will produce 1,800 lumens of light output (that's an awesome 120 lumens per watt). They have a CRI of 80 and a 5 year warranty.
These 2 foot LED fluorescent retrofits have a G13 medium bi-pin base which easily integrates energy saving LED technology into your standard recessed fluorescent troffers or industrial fluorescent lighting format. Note: One end of these LED tubes must be wired to regular line voltage, while the other end should be wired to your emergency backup circuit.
|Emergency Output Wattage||3.5 Watt|
|Emergency Output Lumens||420 Lumens|
|Emergency Operation||90 Minute Run Time
|Rated Life||50,000 Hours|
