Emergency Battery Backup Chicago Code Compliant LED Exit Sign

Keystone Technologies SKU: KT-EX-STCH1-WH1RL-SU
Keystone Technologies Emergency Battery Backup Chicago Code Compliant LED Exit Sign

Emergency Battery Backup Chicago Code Compliant LED Exit Sign

Keystone Technologies SKU: KT-EX-STCH1-WH1RL-SU
  • Chicago Code Compliant, Title 20 Compliant
/
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

A commercial building's emergency and exit light requirements mandate active lights in egress exit routes. We offer a wide range of hard wired and/or battery backup emergency lighting that includes LED emergency lights, LED emergency exit signs, LED emergency light combos, LED emergency tube lights and LED emergency retrofit kits, drivers and inverters to meet your needs.

Introducing Keystone Technologies line of Smart Safe Exit Signs, Combo Units and Emergency Lights.

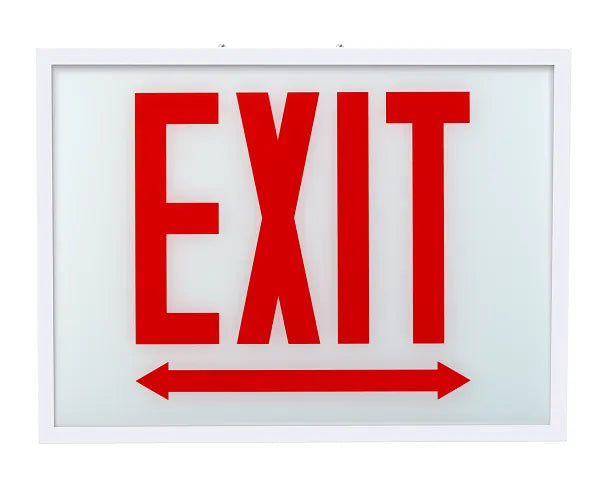

The Keystone Technologies Chicago Code Complaint KT-EX-STCH1-WH1RL-SU includes a Single Face with Red Lettering and Featuring Surface Mounting for Top, Side or Back. Rated for 120-277V input voltage and includes a built-in test switch and provides 90 minutes of Emergency Power. With a white 20-Gauge Steel housing measuring  12.40" W X 2.36" Depth by 8.86 " H. Certifications include Chicago Code Rated, UL 924, Title 20 Approved and is rated for damp locations with a 5-year warranty.

Specifications
Manufacturer Keystone Technologies
Finish Color White
MPN KT-EX-STCH1-WH1RL
SKU KT-EX-STCH1-WH1RL
UPC 843654165042
Lighting Technology LED
Wattage 3.2 Watts
Voltage 120-277V
Letter Color Red
Run Time 90 Minutes
Charging Time 24 Hours
Battery NiCad-600mAh
Testing Function Manual Test Button w/Charging Indicator
Mounting Universal J-Box
Housing 20-Gauge Steel Housing
Dimensions 12.40"L x 2.36"W x 8.86"H
Operating Temperature 0°C (32°F) to 40°C (104°F)
Environment Damp Location Rated
Certifications Chicago Code Compliant, Title 20 Compliant
Warranty 5 Year Warranty



Documents

Keystone Emergency Batter Backup Chicago Code Compliant LED Exit Sign Specification Sheet

Keystone Emergency Batter Backup Chicago Code Compliant LED Exit Sign Installation Instructions

Request A Quote

Green Electrical Supply is here to help you maximize your green® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
