Name: 24/32/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K/4000K/5000K
Brand: Westgate
SKU: CMCSR6-MCTP-DD-BK
Price: 135.23 USD
Availability: InStock

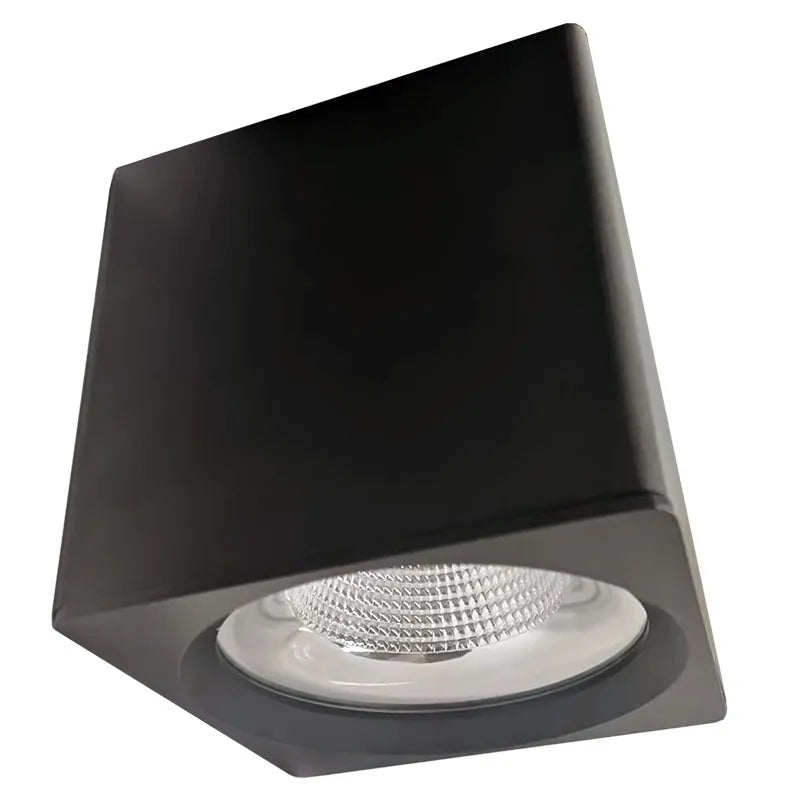

Westgate 24/32/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K/4000K/5000K Black Selectable

Westgate 24/32/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K/4000K/5000K

Westgate 24/32/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K/4000K/5000K White Selectable

Damp Location Rated

Price

Finish Color

Black

White

Color Temp

Selectable

Quantity

Mounting Accessories Sold Separately

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":47944089174260,"title":"Black \/ Selectable","option1":"Black","option2":"Selectable","option3":null,"sku":"CMCSR6-MCTP-DD-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":51541511143668,"product_id":9406434836724,"position":1,"created_at":"2026-04-06T11:45:47-04:00","updated_at":"2026-04-06T11:46:14-04:00","alt":"Westgate 24\/32\/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K\/4000K\/5000K Black Selectable","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/WestgateCMCSR6-MCTP-DD-BKImage.webp?v=1775490374","variant_ids":[47944089174260]},"available":true,"name":"24\/32\/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K\/4000K\/5000K - Black \/ Selectable","public_title":"Black \/ Selectable","options":["Black","Selectable"],"price":13523,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378323161","featured_media":{"alt":"Westgate 24\/32\/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K\/4000K\/5000K Black Selectable","id":42598410813684,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/WestgateCMCSR6-MCTP-DD-BKImage.webp?v=1775490374"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47944089207028,"title":"White \/ Selectable","option1":"White","option2":"Selectable","option3":null,"sku":"CMCSR6-MCTP-DD-WH","requires_shipping":true,"taxable":true,"featured_image":{"id":51541511241972,"product_id":9406434836724,"position":4,"created_at":"2026-04-06T11:45:47-04:00","updated_at":"2026-04-06T11:46:14-04:00","alt":"Westgate 24\/32\/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K\/4000K\/5000K White Selectable","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/WestgateCMCSR6-MCTP-DD-WHImage.webp?v=1775490374","variant_ids":[47944089207028]},"available":true,"name":"24\/32\/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K\/4000K\/5000K - White \/ Selectable","public_title":"White \/ Selectable","options":["White","Selectable"],"price":13523,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378323154","featured_media":{"alt":"Westgate 24\/32\/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K\/4000K\/5000K White Selectable","id":42598410911988,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/WestgateCMCSR6-MCTP-DD-WHImage.webp?v=1775490374"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":47944089174260,"title":"Black \/ Selectable","option1":"Black","option2":"Selectable","option3":null,"sku":"CMCSR6-MCTP-DD-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":51541511143668,"product_id":9406434836724,"position":1,"created_at":"2026-04-06T11:45:47-04:00","updated_at":"2026-04-06T11:46:14-04:00","alt":"Westgate 24\/32\/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K\/4000K\/5000K Black Selectable","width":800,"height":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/WestgateCMCSR6-MCTP-DD-BKImage.webp?v=1775490374","variant_ids":[47944089174260]},"available":true,"name":"24\/32\/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K\/4000K\/5000K - Black \/ Selectable","public_title":"Black \/ Selectable","options":["Black","Selectable"],"price":13523,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378323161","featured_media":{"alt":"Westgate 24\/32\/40 Watt 6 Inch Square Rounded-Corner Ceiling Cylinder Light 3000K\/4000K\/5000K Black Selectable","id":42598410813684,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/WestgateCMCSR6-MCTP-DD-BKImage.webp?v=1775490374"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

The Westgate CMCSR Series 6 inch square rounded-corner ceiling cylinder light fixture delivers high-performance illumination in a sleek, architectural form ideal for modern commercial spaces. Measuring 6 inches in diameter, this fixture offers flexible installation with standard surface mounting, while optional accessories expand its versatility. Choose from an 8 ft suspension cable and canopy set for pendant mounting, or a variety of universal swivel rod kits—available in 18", 24", 36", 40", 48", 80", or 120" lengths—for customized stem mounting solutions. All mounting accessories are sold separately. Field-selectable 24/32/40 watt outputs and 3000K/4000K/5000K color temperatures provide up to 2,800 lumens at 70 lumens per watt, allowing you to tailor light levels and ambiance to the space.

Featuring a durable aluminum housing with a glass lens and a focused 25° beam angle, this cylinder offers powerful, controlled downlighting in black, or white finishes. Designed with dual function dimming allows for Triac dimming at 120V and 120-277V operation with 0-10V dimming capability. It is damp location rated and built for long term performance with a 70,000 hour lifespan and a 7 year warranty, making it an excellent choice for retail, hospitality, office, and other commercial applications.

Specifications

Manufacturer	Westgate
Finish Color	Black	White
MPN	CMCSR6-MCTP-DD-BK	CMCSR6-MCTP-DD-WH
SKU	CMCSR6-MCTP-DD-BK	CMCSR6-MCTP-DD-WH
UPC	840378323161	840378323154
Lighting Technology	LED
Wattage	24/32/40 Watts
Voltage	120-277V
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens	1680/2240/2800 Lumens
Efficiency (Lumens Per Watt)	70 lm/W
Dimmable	Dual Function: Triac at 120V, 0-10V at 120-277V
Beam Angle	25 Degrees
Rated Life	70,000 Hours
CRI (Color Rendering Index)	>80
Power Factor	>0.90
THD (Total Harmonic Distortion)	<20%
Housing	Aluminum
Lens	Clear Glass
Operating Temperature	-13°F to 113°F
Dimensions	6 1/4” H X 6 1/2” W X 6 1/4” D
Environment	Damp Location
Certifications	cETLus, IP40
Warranty	7 Year Warranty

Documents

Westgate 6 Inch Square Rounded-Corner Ceiling Cylinder Light Specification Sheet
