Atlas Lighting's Narrow Body LED wet location fixtures are the highest quality available and feature glare free lenses, efficiencies up to 154 lumens per watt, and an IP rating of 65, 66 & 67. All six LED wet location models have a 45 degrees C ambient temperature with a 91% lumen output rating at 200,000 hours. These fixtures are wash down rated (up to 1,500 PSI) and perfect for a variety of applications such as mobile hospitals, outdoor clinics, first aid stations, patient isolation, and much more. These fixtures are not just used for emergency medical lighting as they can also be used for cold storage, garages, refrigerated cases, stairwells, storage areas, fuel pump canopy and countless other applications.

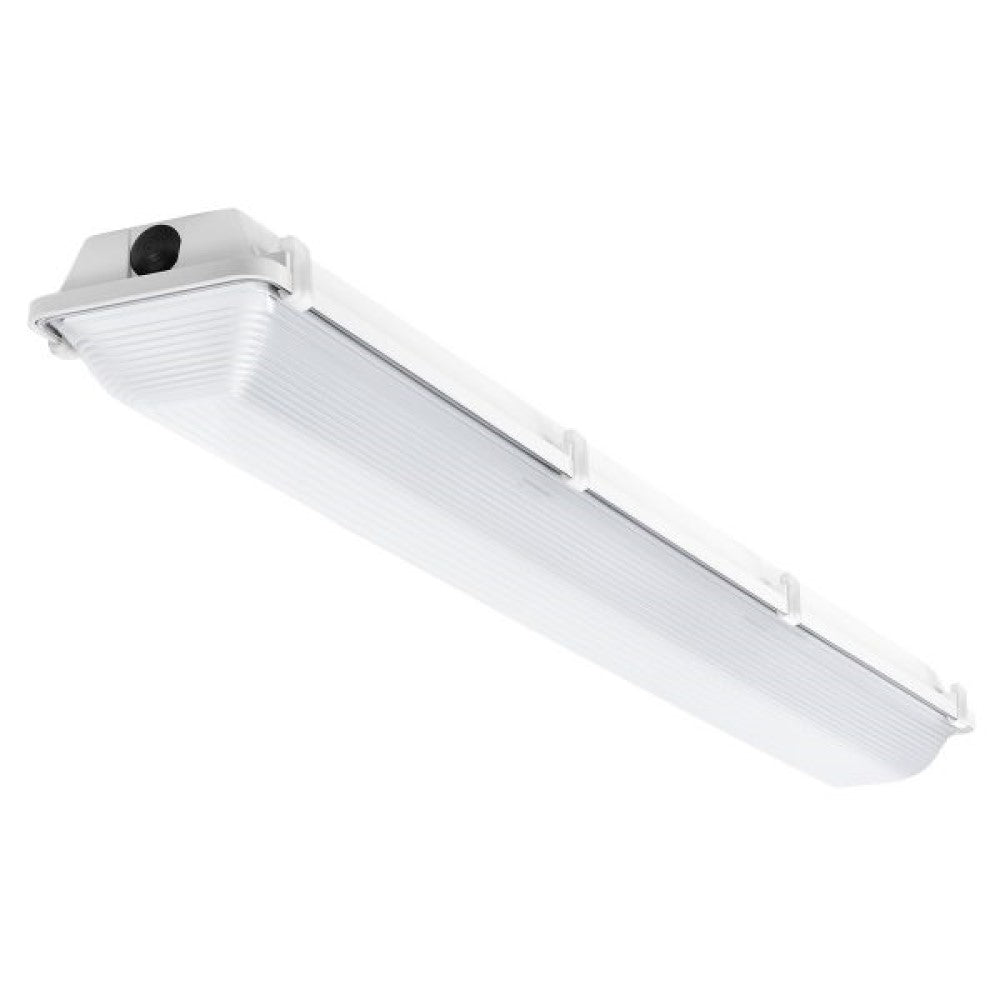

Atlas Lighting's ILWS4-8L4D is a 4-foot 27/41/56 selectable wattage LED Made in USA industrial wet location linear fixture. The 1-piece housing is made of durable composite material with 1/2" entry points on both ends. The poured gasket provides a continuous seal for the lens. Six polycarbonate cam latches compress lens to housing for a tight seal. Stainless steel mounting brackets are furnished with each fixture. This fixture features an injection molded acrylic lens with high impact additive and the lens is ribbed and frosted to eliminate glare. This model consumes 27/41/56 selectable watts of the universal 120-277 voltage. These 27/41/56 watts produce 4027/5912/7889 lumens, for up to 146 lumens per watt (LPW), of 4500K Cool White, with a total CRI of 80. These LED fixtures are manufactured and tested in the United States. This product includes a five-year limited warranty.
| Manufacturer | Atlas Lighting |
| MPN | ILWS4-8L4D |
| SKU | ILWS4-8L4D |
| UPC | 765364049354 |
| DLC Product ID | S-PJDA6O |
| Lighting Technology | LED |
| Color Temperature (Kelvin) | 4500K |
| Wattage | 27/41/56 Watts |
| Voltage | 120-277V |
| Lumens | 4027/5912/7889 Lumens |
| Efficiency (Lumens Per Watt) | 146/144/140 LPW |
| Dimmable | 0-10V Dimmable |
| CRI (Color Rendering Index) | 80 CRI |
| Fluorescent Equivalent | 2 lamp T8 Fluorescent, 2 lamp T5 Fluorescent, 4 lamp T8 Fluorescent |
| Lens | Injection Molded Acrylic Lens |
| Operating Temperature | -40°C/-40°F to 50ºC/122ºF |
| Dimensions | 51.65" L x 6.77" W x 2.236" H |
| Certifications | Buy American Compliant, DLC Listed, uCLus, Made in USA |
| Environment | IP65 Rated, IP66 Rated, IP67 Rated, Wet Location Rated |
| Warranty | 5 Year Warranty |
