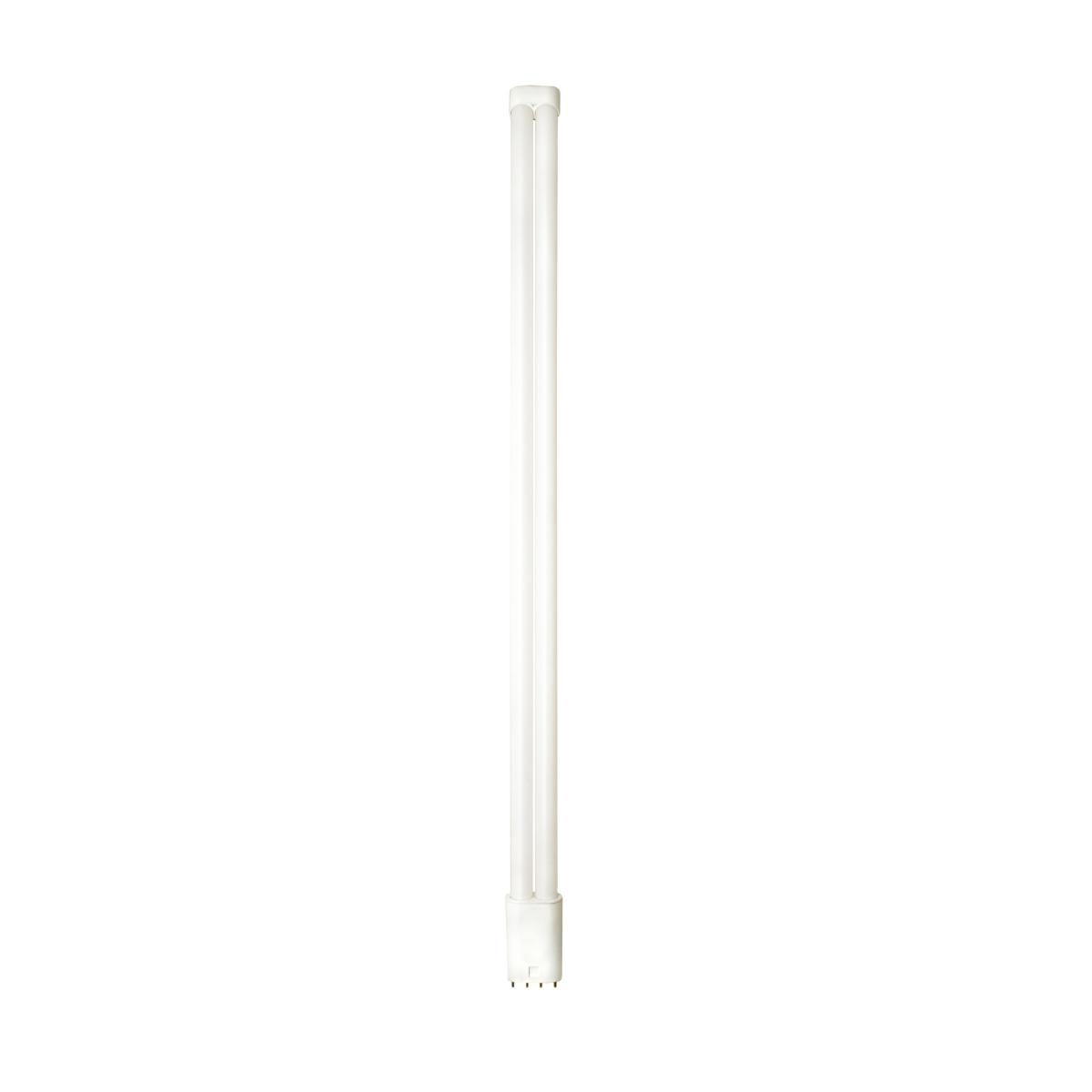

Featuring an all-glass tube and direct wiring, Satco's 2 Foot 23 Watt Ballast ByPass LED PL-L Retrofit 2G11 Base is designed to replace 4-Pin 40W PL-L CFLs. Launched in 1966, the brand is known for its high-quality lighting products. This particular model offers two color temperatures -- 3500K Bright White and 4000K Cool White -- and flicker-free light emission. With a 120-277V line voltage, it instantly turns on to full brightness.
This DLC Listed Satco Replacement Lamp has a 2G11 base with four pins arranged in a line. It offers 2800 lumens at color temperatures of 3500K and 4000K with 82 CRI. Efficient energy consumption of 23 watts yields a 40% reduction in power use compared to a fluorescent 40 watt version, making both your wallet and the environment happy.
This lamp is damp location rated, UL rated, NSF approved and RoHS compliant. Along with these certifications, this lamp is ballast bypass only. This means that there is no ballast or driver required and it must be installed by bypassing or removing the old ballast. These lamps have a long life of 50,000 hours and come with a 5 year limited warranty. With a frost finish, these lamps measure 22.5" (MOL) and are wired directly with the universal 120-277V line voltage.
Manufacturer | Satco | |
Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White |
MPN | 23PLL/LED/835/BP | 23PLL/LED/840/BP |
SKU | S9950 | S9951 |
UPC | 045923099502 | 045923099519 |
DLC Product ID | P0O7T912 | PL2ISZU5GTZN |
Lighting Technology | LED | |
Wattage | 23 Watt | |
Lumens | 2800 Lumens | |
Beam Spread | 270 | |
Voltage | 120-277V | |
Frequency | 50/60Hz | |
Ballast Operation | Type B Ballast Bypass | |
Bulb Shape | PLL | |

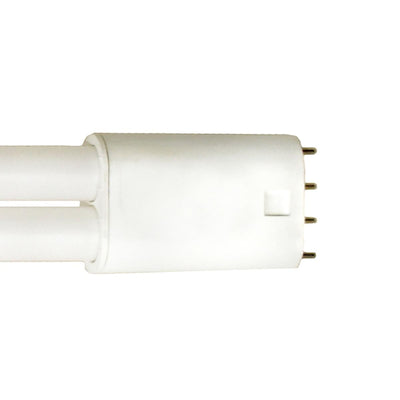

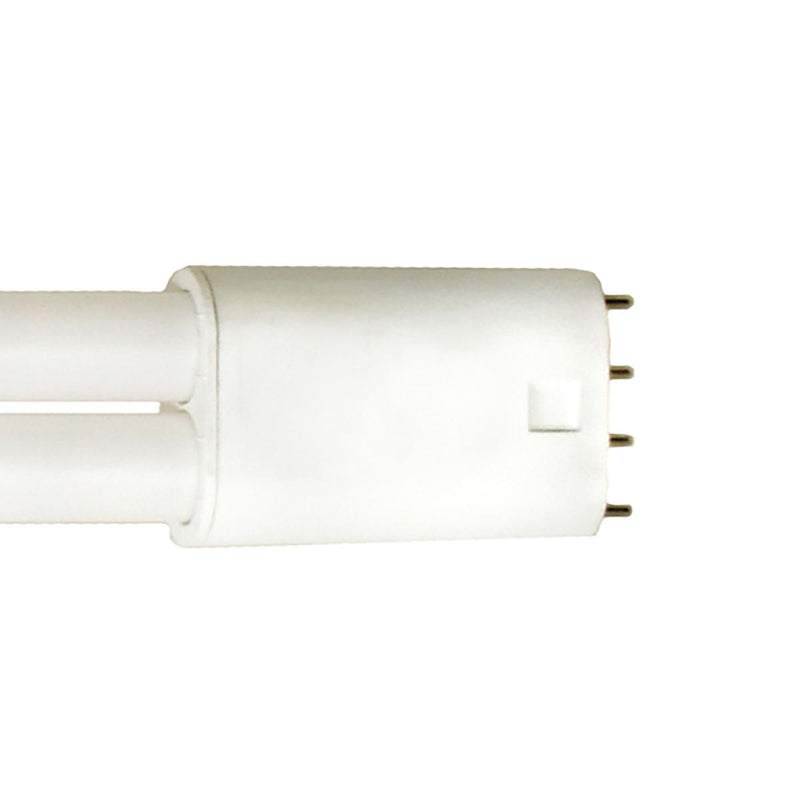

Base | 4-pin 2G11 | |
Rated Life | 50,000 Hours | |
CRI (Color Rendering Index) | 82 | |
Power Factor | 0.9 | |
Lens | Frosted | |
Fluorescent Equivalent | 40 Watt | |
Operating Temperature | -4° F to 113° F | |
Dimensions | 0.63" W x 22.5" MOL | |
Certifications | cULus, DLC | |
Environment | Enclosed, Damp Location | |
Warranty | 5 Year Limited Warranty |
