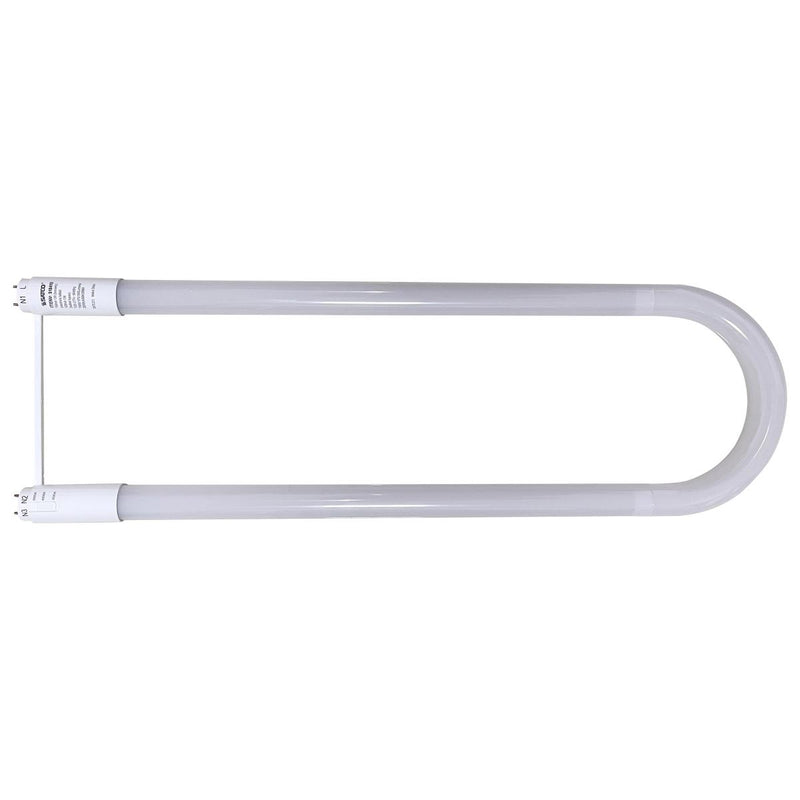

6 Inch 13 Watt LED CCT Select Hybrid U Bend Tube Light 3500/4000/5000K

Satco SKU: S18410
Satco 6 Inch 13 Watt LED CCT Select Hybrid U Bend Tube Light 3500/4000/5000K Selectable

6 Inch 13 Watt LED CCT Select Hybrid U Bend Tube Light 3500/4000/5000K

Satco SKU: S18410
  • NSF Listed, Enclosed Fixture Rated, DLC Listed
/
Color Temp
Please call to confirm availability.
**BALLAST MUST BE BYPASSED IN ORDER TO USE**
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Introducing SATCO|NUVO's LED U-Bend Lamps, the perfect solution for replacing fluorescent U-bend lamps in commercial, hospitality, office, retail, warehouse, and factory settings. These lamps are designed for damp locations, ensuring reliable and energy-efficient lighting across a range of applications.

SATCO|NUVO’s LED T8 U-Bend lamps are CCT selectable and available in 1”, 3”, and 6” models to provide versatility in a range of applications. 1” and 6” models are Dual Mode to operate in ballast bypass or ballast compatible configurations and the 3” model is ballast bypass. All lamps can be easily installed with single-ended non-shunted sockets or double-ended shunted or non-shunted sockets. Save at least 40% when using LED U-Bend Lamps to replace traditional fluorescent lamps.

The Satco 13T8U6/LED/CCT/DUAL/SE-DE (S18410) will produce between 1,900-1,975 Lumens of light output (that's an awesome 146-151 Lumens Per Watt). They have a frosted lens, CRI of 80 and a rated life of up to 50,000 hours. The physical dimensions of the Satco ballast bypass LED 6 inch U Bend are 22.60 inch long by 1.00 inch in diameter (note: the U-bend leg spacing measures 6 inches). Each Satco 13T8U6/LED/CCT/DUAL/SE-DE LED u bend light bulb carries a 5 Year Warranty.

Manufacturer Satco
MPN 13T8U6/LED/CCT/DUAL/SE-DE
SKU S18410
UPC 045923184109
Lighting Technology LED
Wattage 13 Watts
Voltage 120-277V
Input Current 0.11-0.05A
Frequency 50/60Hz
Color Temperature (Kelvin) 3500/4000/5000K
Lumens 1,900/1,975/1,950 Lumens
Efficiency (Lumens Per Watt) 146/151/151 LPW
Ballast Operation Hybrid Type A/B
Wiring Method Single/Double Ended
Bulb Shape T8
Base G13 Medium Bi Pin
Beam Angle 160 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor 0.9
THD (Total Harmonic Distortion) 20%
Lens Plastic
Fluorescent Equivalent 32 Watts
Operating Temperature -20°C (-4°F) to +45°C (+113°F)
Dimensions 22.60" MOL x 1.00" MOD
Nominal Length 22.50"
Leg Spacing 6.00"
Certifications DLC Listed, NSF Approved, Enclosed Fixture Rated, FCC Compliant
DLC Product ID S-R4NQ0V
Environment Damp Location
Warranty 5 Year Limited


Satco Hybrid LED Color Selectable U-Bend Tube Light Specification Sheet

Satco Hybrid LED Color Selectable U-Bend Tube Light DLC Product Listing
