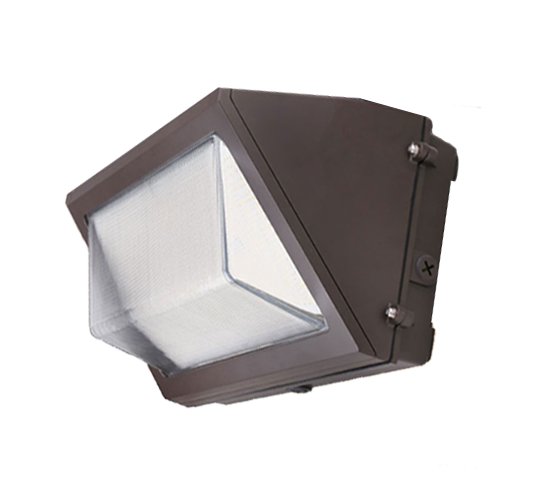

70/90/110/130/150W LED Select Pro Color and Wattage Selectable 120-277V Wall Pack 3000/4000/5000K

Venture Lighting SKU: WP53512
Venture Lighting 70/90/110/130/150W LED Select Pro Color and Wattage Selectable 120-277V Wall Pack 3000/4000/5000K Selectable

70/90/110/130/150W LED Select Pro Color and Wattage Selectable 120-277V Wall Pack 3000/4000/5000K

Venture Lighting SKU: WP53512
  • DLC Premium Listed, Title 24 Compliant, IP65
Regular price $321.53
/
Color Temp
Limited quantity available
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

Venture Lighting’s color temperature selectable and wattage selectable luminaire is capable of changing to 3 different CCT settings and 5 different wattage settings. These field adjustable fixtures are preset to the highest wattage (can be adjusted via an internal rotary switch) and 5000K CCT (can be adjusted via an internal slide switch). This LED luminaire is designed for great performance, long life, and low maintenance. The rugged die-cast aluminum housing is powder-coated for superior corrosion resistance and is provided with a premium stripe glass lens. The high-performance LED sources are mounted to ensure proper thermal management of the system. The design allows for a cooler running LED chip which leads to longer lifetime, better efficacy, and color consistency. The fixture has a gasket seal to eliminate the threat of contaminants damaging the components.

The Venture Lighting WP53512 wall pack produces a selectable 70/90/110/130/150 watts of 120-277 volt energy to generate between 9,590-21,514 lumens depending on the wattage selected. Coming in a bronze finish, this LED wall pack is dimmable with 0-10V DC continuous to 10%. It carries a rated life of up to 174,000 hours and has an operating temperature range of -40 degrees Celsius to 40 degrees Celsius. The WP53512 is IP65 wet location rated and is DLC premium qualified.

Manufacturer Venture Lighting
MPN WP53512
SKU WP53512
UPC 090444535121
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 9,590-23,223 Lumens
Wattage 70/90/110/130/150 Watts
Efficiency (Lumens Per Watt) 137-154.8 LPW
Lighting Technology LED
Voltage 120-277V
Frequency 50/60Hz
Dimmable Yes, 0-10V
Rated Life 174,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <10%
Finish Color Bronze
HID Equivalent 400 Watts
Operating Temperature -40°C to 40°C
Dimensions 17.87" L x 9.41" W x 8.98" H
Certifications IP65, DLC Premium Listed, Title 24 Compliant
DLC Product ID PLG34JMCVA21
Environment Wet Location


3000K Warm White
70 Watts 90 Watts 110 Watts 130 Watts 150 Watts
9,660 Lumens 12,420 Lumens 15,180 Lumens 17,940 Lumens 21,514 Lumens



4000K Cool White
70 Watts 90 Watts 110 Watts 130 Watts 150 Watts
10,430 Lumens 13,410 Lumens 16,390 Lumens 19,370 Lumens 23,223 Lumens



5000K Daylight
70 Watts 90 Watts 110 Watts 130 Watts 150 Watts
9,590 Lumens 12,330 Lumens 15,070 Lumens 17,810 Lumens 21,438 Lumens
