192 Watt 24VDC 8320mA EZJ-Box E-Series Constant Voltage LED Junction Box

Magnitude Lighting SKU: EZJ192L24DC
Magnitude Lighting 192 Watt 24VDC 8320mA EZJ-Box E-Series Constant Voltage LED Junction Box

192 Watt 24VDC 8320mA EZJ-Box E-Series Constant Voltage LED Junction Box

Magnitude Lighting SKU: EZJ192L24DC
Regular price $217.92
/
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

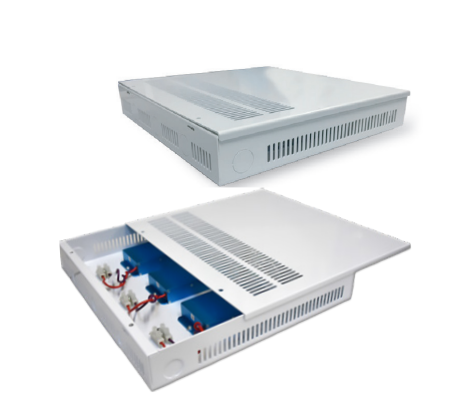

The EZJ-BOX (EZ Junction Box) series features select Magnitude Lighting Class 2, electronic LED drivers integrated into a simple surface-mounted, multi-channel junction box, making it the perfect product for multi-output needs in tape lighting, tube lighting, linear lighting, and multiple other residential or commercial lighting applications. The high-quality metal, UL Listed junction box includes multiple ⁷⁄₈” knock-outs and comes pre-wired for quick and easy installation.

The EZJ-BOX | E-Series uses Magnitude Lighting’s E-Series Electronic Class 2, phase-dimmable LED drivers and is available in 2- or 3-channel configurations. The driver features auto-reset, over current and short circuit protection, as well as an efficiency over 90% resulting in low operating case temperature. The E-Series is phase-dimmable down to 1% with leading-edge TRIAC Dimmers.

This is the Magnitude EZJ192L24DC, a EZJ-Box with E-Series constant voltage electronic drivers in a junction box. The input voltage is 120 volt and the max output current is 4160mA each driver. This junction box includes (2) 96 Watt constant voltage drivers, totaling 192 watts. The physical dimensions of this product is 11" length x 12" width x 2.13" height with a 5 year warranty.

Manufacturer Magnitude Lighting
MPN EZJ192L24DC
SKU EZJ192L24DC
UPC 810020790139
Lighting Technology LED
Driver Type Constant Current
Wattage 192 Watts (2 x 96 Watt Drivers)
Input Voltage 120VAC
Voltage Output 24VDC
Input Current 1.70A
Current Output 8320mA (2 x 4160mA Driver)
Frequency 50/60Hz
Dimmable Yes, Down to 1% with TRIAC Dimmers
Power Factor 0.95
Operating Temperature -30°C to 50°C (-22°F to 122°F)
Housing Galvanized Steel
Mounting 4-Keyhole Mount
Dimensions 11" L x 12" W x 2.13" H
Certifications UL8750 Class 2, Title 24 Compliant
Environment Dry Location
Warranty 5 Year Standard
