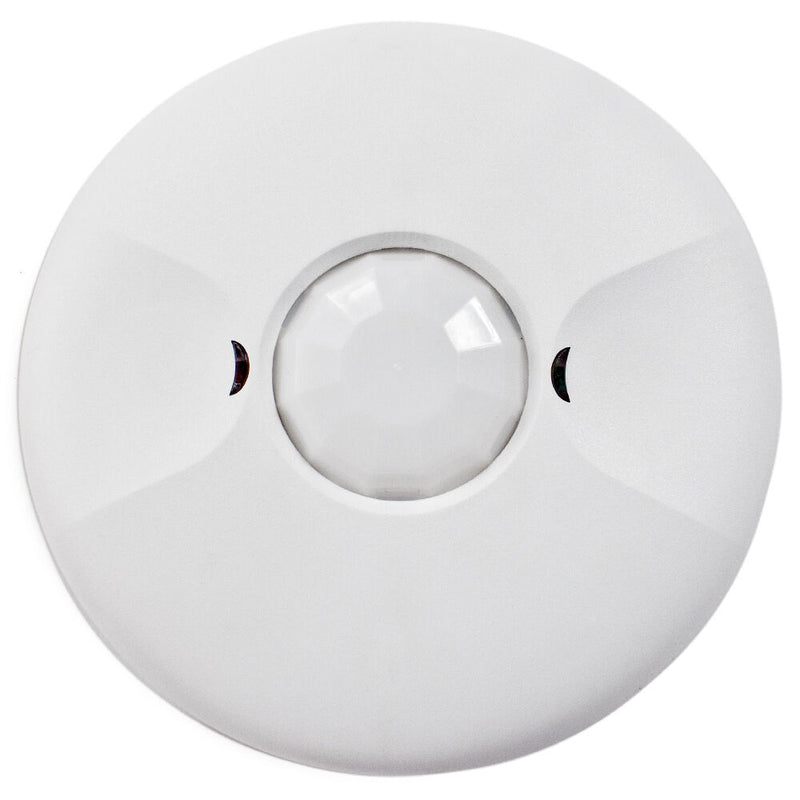

The IOS-CMP-LV 360° Passive Infrared (PIR) Low Voltage Occupancy Sensors control lighting systems based on occupancy and ambient light levels. When movement is detected, the sensor turns the lights ON. If no movement is detected for a user-specified or auto set time of 15 seconds to 30 minutes, the lights are turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1200 square feet.
The occupancy sensor features 9 DIP switches. Each setting can be set to an up position or down position that configures the DIP Switch setting to a specified requirement. Follow this procedure to adjust the DIP switch settings.
| Manufacturer | Intermatic |
| MPN | IOS-CMP-LV |
| SKU | IOS-CMP-LV |
| UPC | 078275139909 |
| Input Voltage Range | 24 VDC |
| Occupancy Sensor Power Type | Low Voltage |
| Sensor Technology | PIR (Passive Infrared) |
| PIR Coverage Area | 1200 Square Feet |
| Mounting | Ceiling |
| Maximum Mounting Height | 8-11ft |
| Occupancy Sensor Power Type | Line Voltage |
| Adjustable Time Delay Minimum | 5 Seconds |
| Adjustable Time Delay Maximum | 30 Minutes |
| Adjustable Light Level Minimum | 10FC |
| Adjustable Light Level Maximum | 150FC |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Dimensions | 1.375" H x 4.563" Diameter |
| Certifications | Title 20 |
| Warranty | 2 Year Limited |
