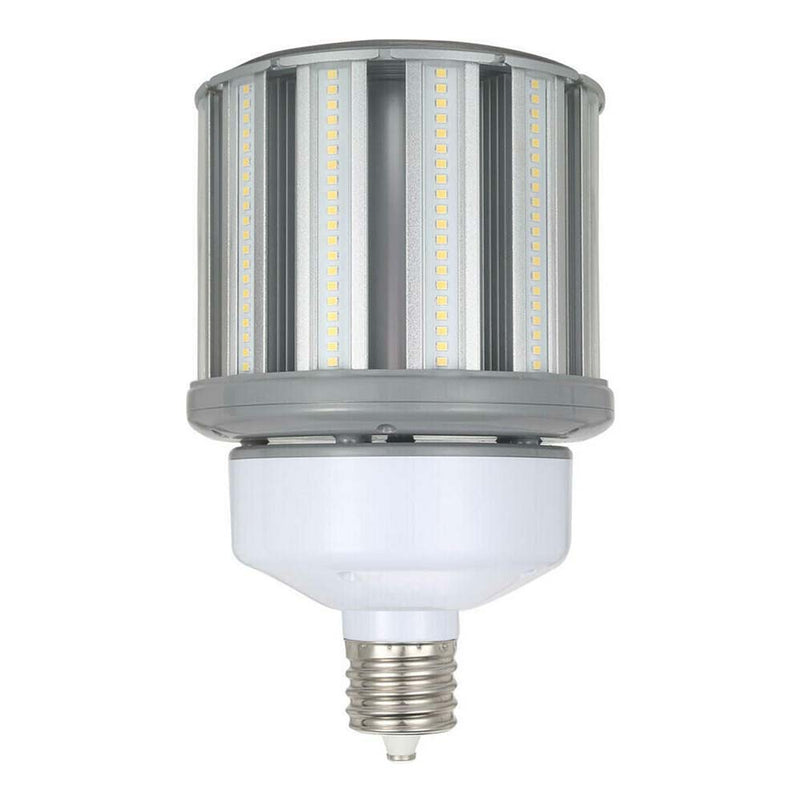

Available in either an E26 medium or E39 mogul screw base, Eiko's LiteSpanLED HID Replacement Lamps are a convenient and energy-efficient solution for replacing traditional compact fluorescent, high-pressure sodium and metal halide sources in enclosed lighting fixtures. The 27 and 36 watt models are designed with a smaller size and shape for easy installation in bollards and globes, while the larger 45, and 54 watt versions are ideal for acorn fixtures and outdoor security lighting where a higher lumen output is required. For an even higher light output, they also offer this product in 80W, 100W and 120W.
These corn cob light bulbs are now smaller than ever but producing equivalent or greater light output! Suitable for totally enclosed post tops and other typical HID fixtures, these LED retrofit bulbs (also called out as an LED corn light or corn bulb) offer an omni-directional 360 degree beam angle. They consume up to 75% less energy than conventional HID systems at just 100 watts of 100 to 277 volt energy and generate 13,000 initial lumens of light output. An excellent energy saving bulb to replace up to 400 watt High Intensity Discharge (HID), 250 watt Metal Halide (MH) or 200 watt High Pressure Sodium (HPS) lamp. The LED100WPT(XX)KMOG-G8 is a non-dimmable LED light bulb. This LED Site, Roadway or Post Top lighting retrofit option carries a rated life of up to 50,000 hours and has an operating temperature range of -30 degree Celsius to 60 degrees Celsius.
These LED bulbs may be short in stature, but, they pack a powerful light output that provides instant full brightness. Designed with Solid State Technology which requires no fans or moving parts, these LED retrofit bulbs give outstanding reliability without any noise. They have an EX39 mogul screw base that easily integrates energy saving LED technology into even your tightest site lighting, roadway or post top lighting format. Adding to their retrofit flexibility, they can be operated in either the base up, base down or horizontal position. The physical dimensions of the EiKO LED retrofit are just 9.57 MOL by 5.87 in diameter. These LED retrofit bulbs carry a 5 Year Warranty. When used in an enclosed fixture the minimum lamp compartment dimensions are 9.25 inches wide by 9.25 inches tall by 17.32 inches long as described by the EiKO LED HID Retrofit Bulb Installation Instructions.
The EiKO 100 watt LED lamp, which is UL Listed for either Dry or Damp locations (IP64 Rated), has been designed to retrofit existing HID installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. Please NOTE: When retrofitting LED to an HID fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will insure no RFI interference.
||400W HID, 250W MH or 200W HPS|
|Base Type||EX39 Mogul Base|
|Rated Life||Up to 50,000 Hours|
|Beam Angle||360 Degrees|
|Dimensions||5.87" Diameter x 9.57" L|
||DLC Listed, Damp Location, RoHS, cULus|
|DLC Product ID - 4000K||PLZEJS4D1603|
|DLC Product ID - 5000K||PL0IX13XNPAM|
|Warranty||5 Year Limited|
