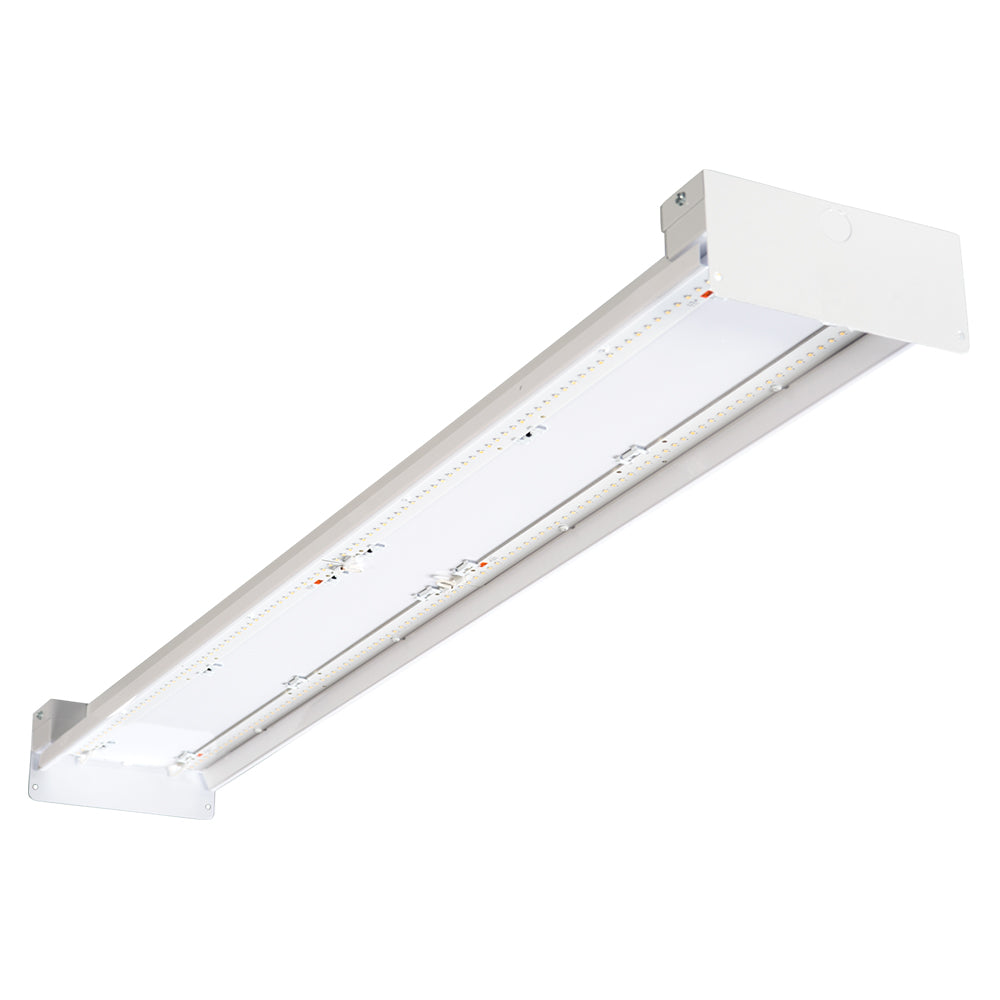

Atlas Lighting Products are manufactured, assembled, and tested in a large facility located in North Carolina, utilizing both domestic and foreign components, enhancing product quality, as well as allowing for a faster response and quicker shipping. Atlas Lighting's Linear LED High Bays are just one line of energy efficient products they supply. This LED high bay is an excellent, cost-effective solid state LED solution for upgrading your warehouse high bay lights, shop lights and low bay fixtures.
This model is Atlas Lighting's LED High bay product number ILH415L and it consumes just 103 watts of energy. These LED linear lights have a 0-10v dimmable, universal voltage 120-277v LED driver. This 4 foot slim industrial LED high bay is constructed with heavy duty 20 gauge steel that has a post painted polyester coat finish, therefore is extremely suitable for manufacturing, warehousing, retail applications, and other large spaces such as gymnasiums and recreation halls. Each Atlas Lighting ILH415L has a minimum starting temperature of -31 degrees Fahrenheit, a maximum operating temperature of 122 degrees Fahrenheit and they carry a 5-year limited system warranty.
This Express Bay LED high bay fixture comes without a lens cover and delivers a 15,267 lumen output. If you are looking for a lower lumen output, Atlas Lighting also offers this exact fixture with a frosted lens. For ease of installation, this LED high bay fixture is suitable for suspension by chain, cable, or single (pendant) monopoint. To maintain ambient listing, mount this LED high bay a minimum of 6" from the ceiling. The LEDs in this high bay produce a color temperature of 4500K Cool White. This LED high bay is designed for mounting heights ranging from 12-18 feet and will replace up to 250 watt metal halide lights and/or your 4 lamp T5/6 lamp F32T8 fluorescent high bay lighting fixtures.
This product is DLC Standard Listed and also is proudly made in the U.S.A. Typical applications for this LED high bay are but not limited to: warehouse lighting, storage facility lighting, manufacturing applications, task lighting, automotive repair applications and any other replacement for traditional HID fixtures. Test out this incredible product today, you will not be disappointed.
| Voltage | 120-277 Volt |
| Wattage | 103 Watts |
| Lumens | 15,267 Lumens |
| Equivalent | 250 Watt Metal Halide |
| CRI | 80 CRI |
| Dimmable | Yes, 0-10V |
| Dimensions | 46.06" L x 7.17" W x 3.3" H |
| Certifications | UL/cUL Damp Locations, Made in USA |
| Warranty | 5 Year Limited |
| DLC Product ID | PJ8HEAN1 |
