SUGGESTED LED REPLACEMENTS:
11 Watt Hybrid LED G24q GX24q 4 Pin LED PL Light Bulb Gen 3
9.5 Watt 120-277V G24q/GX24q 4 Pin Direct Replacement LED PL Lamp
Light Efficient Design is dedicated to providing the type of products that you demand. Proper certifications, such as LM79, Lighting Facts, UL and ultimately Energy Star, are top priorities for Light Efficient Design. These labels instill confidence in the quality of their products. More and more of their products carry certifications, and ultimately most will be certified. Some of Light Efficient Designs products, in what we believe to be one of the broadest assortment of LED lights anywhere, might appear to be similar to many competitors products but we can assure you that the intrinsics, which you cannot see, have been designed to give you the performance and longevity that you expect from LED products, but don't always get in this vast unknown supplier industry.

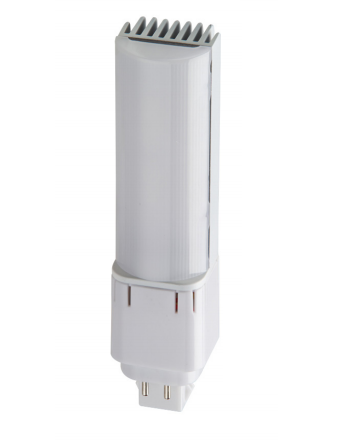

Here are the Light Efficient Design, 180 degree beam angle retrofit LED. It features universal operation. This LED PL retrofit can be installed as either a direct replacement that is compatible with 26 watt electronic fluorescent ballasts in fixtures that currently use 4-pin Gx24q fluorescent PL tube lights or you can bypass your ballast, wire directly to your socket, and operate off of your incoming 120-277v power. Part number LED-7334-40K-G2 (4000K Cool White) consumes just 11 watts of 120 to 277 volt. These LED tubes are a non-dimmable LED light bulb, will produce 1014 Lumens of light output (that's an awesome 92 Lumens Per Watt), has a CRI of 80 and an average rated life of up to 50,000 hours.
These LED fluorescent bulbs have a 180 degree beam angle which easily integrates energy saving LED technology into your standard recessed lighting format. These LED retrofits are designed to replace 26w GX24q 4-pin fluorescent PL lamps and are suitable for horizontal recessed applications. The physical dimensions of the Light Efficient Design LED 4000K cool white LED retrofit are 5.6 maximum overall length (MOL) by 1.3 wide. Each LED-7334-40K-G2 LED fluorescent retrofit bulb offers you the flexibility to either bypass your current ballast or to wire your incoming 120-277v line directly to the socket. These LED retrofit bulbs carry a 5 Year Limited Warranty.
The LED-7334-40K-G2, 11 watt LED lamp is designed to retrofit existing fluorescent recessed can lighting installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. Please NOTE: When retrofitting this LED to a fluorescent fixture by using the bi-pass option, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will insure no RFI interference.
|LED Color||4000K Cool White|
|Lumens Range||1,014 Lumens|
|Beam Angle||120 Degrees|
|Base Type||4-Pin GX24q Base|
|Rated Life||50,000 Hours|
|Dimensions||1.3" W x 5.6" L|
|Warranty||5 Year Limited|
