Satco’s newest addition to the Hi-Pro LED family provides up to 75% in energy savings, advanced sensor port technology and are now CCT selectable! The omni-directional light is designed to fully illuminate and safely replace HID lamps in higher ceiling installations such as warehouses, gymnasiums, manufacturing plants and parking garages. Satco's Hi-Pro Series LED Retrofit Lamps (also called out as an LED corn light or corn bulb) are a convenient and energy-efficient solution for replacing traditional compact fluorescent, high-pressure sodium and metal halide sources in enclosed lighting fixtures. These CCT selectable lamps are available in 45W, 54W, 80W, 100W and 120W. The color selectable temperatures for the complete series are 3000K warm white, 4000K, cool white and 5000K daylight.

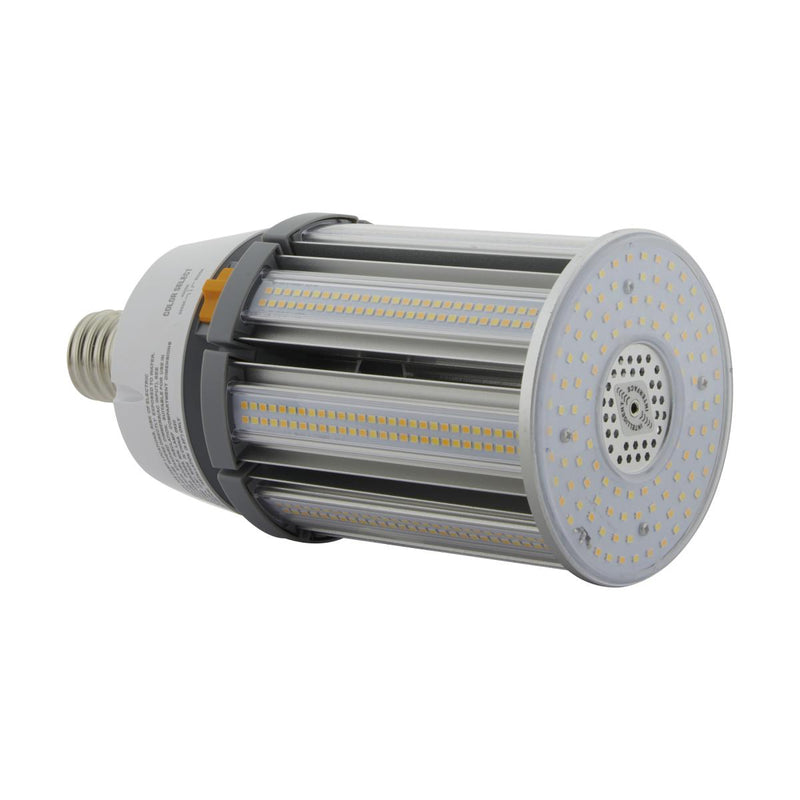

This item is the Satco Hi-Pro LED retrofit part number 120W/LED/HID/CCT/EX39 (S13145). Suitable for totally enclosed post tops (Note: please allow a minimum of 1 inch of space between the lamp and any fixture surface) and other typical HID fixtures, these LED retrofit bulbs offer an omni-directional 360 degree beam angle with up light. They consume just 120 watts of 100 to 277 volt energy and generates between 15600-16800 initial lumens of light output. An excellent energy saving bulb to replace your 500 watt Metal Halide (MH) or High Pressure Sodium (HPS) lamp. The S13145 is a non-dimmable LED corn cob light bulb. This LED Site, Roadway or Post Top lighting retrofit option carries a rated life of up to 50,000 hours and has an operating temperature range of -30 degree Celsius to +45 degrees Celsius.
These LED color selectable corn cob bulbs have an EX39 Mogul that easily integrates energy saving LED technology into your site lighting, roadway or post top lighting format. Adding to their retrofit flexibility, they can be operated in either the base up, base down or horizontal position. The physical dimensions of the Satco LED retrofit are just 11.2 MOL by 5.2 in diameter. These LED retrofit bulbs carry a 5 Year Limited Warranty.
The Satco S13145, 120 watt LED lamp, which is UL Listed for either Dry or Damp locations (IP64 rated), has been designed to retrofit existing HID installations, thereby reducing maintenance and energy expenditures. Please NOTE: When retrofitting LED to an HID fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will insure no RFI interference.
|Beam Angle||360 Degrees|
|Dimensions||5.2" Diameter x 11.2" L|
|Rated Life||50,000 Hours|
|Certifications||DLC Listed, Damp Location, IP64|
|DLC Product ID||PL48Y83ZQH0J|
|Warranty||5 Year Limited|
