155 Watt 19280 Lumen Dimmable LED High Bay Fixture 5000K

EiKO SKU: 09194
EiKO 155 Watt 19280 Lumen Dimmable LED High Bay Fixture 5000K 5000K Daylight

155 Watt 19280 Lumen Dimmable LED High Bay Fixture 5000K

EiKO SKU: 09194
Regular price $221.67 Sale price $140.12 Save 37%
Color Temp
Limited quantity available
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

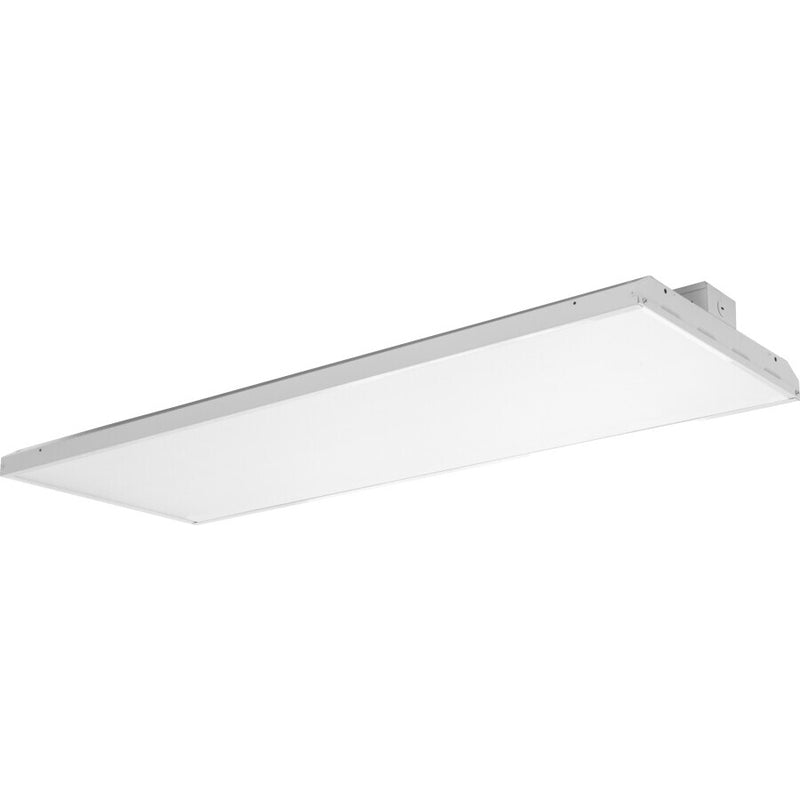

The EiKO LLH-3C-U (09194) LED Linear High Bay/Low Bay shop light provides a lumen package that is ideal for replacing metal halide and linear fluorescent work shop light fixtures. This economical fixture offers high performance and long 100,000 life, excellent color rendering - greater than 80 CRI - and it is even UL Listed for Damp Locations. The universal 120-277 volt, 0-10V dimmable, LED driver offers typical applications in warehouses, manufacturing plants, distribution centers, grocery stores, cold storage, commercial and recreational facilities the flexibility required in today's demanding energy efficient environment. Each EiKO LLH-3C-U has a minimum starting temperature of -0 degrees Fahrenheit, a maximum operating temperature of 122 degrees Fahrenheit and they carry a 5-year limited system warranty.

The LLH-3C-U consumes 155 watts, delivers an amazing 19,382 lumens of 5000K, 80 CRI light (that's an impressive efficacy of 125 lumens per watt). Each LED high bay fixture measures 23.8" Long by 17.3" Wide by 3.62" High and comes with a 10 foot Y-toggle aircraft cable fixture hanger. Damp Locations and RoHS Compliant this LED high bay is your quality LED highbay upgrade from your existing 400w HID light fixtures.

Manufacturer EiKO
SKU 09194
UPC 031293091949
Lighting Technology LED
Wattage 155 Watt
Voltage 120-277 Volt
Color Temperature (Kelvin) 5000K Daylight
Lumens 19,382 Lumens
Efficiency (Lumens Per Watt) 125 lm/w
Dimmable Yes, 0-10V
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Fluorescent Equivalent 4-lamp T5HO, 6-lamp T8
HID Equivalent 400 W HID
Operating Temperature -18° C (0° F) to 50° C (122° F)
Dimensions 23.8" L x 17.3" W x 3.62" H
Certifications cULus, RoHS Compliant
Environment Damp Locations
Warranty 5 Year Limited
