2 Foot 11.5 Watt Single Ended LED T5 Tube Light 3000K

Green Creative SKU: 98296
Green Creative 2 Foot 11.5 Watt Single Ended LED T5 Tube Light 3000K 3000K Warm White

2 Foot 11.5 Watt Single Ended LED T5 Tube Light 3000K

Green Creative SKU: 98296
  • Enclosed Fixture Rated, NSF Listed
Regular price $16.87 Sale price $14.27 Save 15%
Color Temp
Limited quantity available
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.

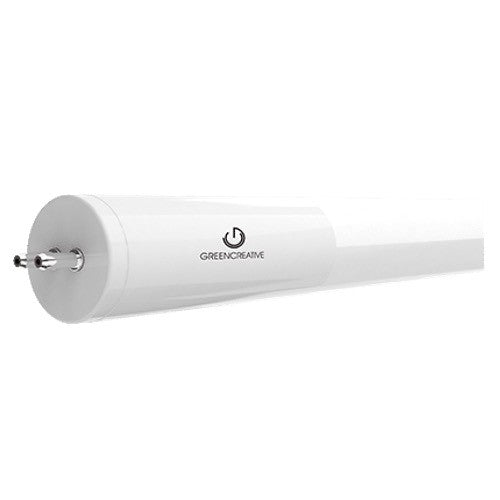

Here is the Green Creative, 120 degree beam angle, frosted lens, G5 miniature bi-pin retrofit LED tube lights. Part number 11.5T5HO/2F/830/BYP (98296), has a Power Factor of 0.9 and consumes just 11.5 watts of 120 to 277 volt 60 Hz energy. Suitable for use in dry, damp or totally enclosed fixture locations, these LED T5 replacement tubes will produce 1,350 Lumens of light output (that's an awesome 117 Lumens Per Watt), has a CRI of 82 and a rated life of up to 60,000 hours a L70.

The physical dimensions of the Green Creative LED T5 LED retrofits are 22 inches long by 0.69 inches wide. Each 98296 LED T5 retrofit bulb carries a 5 Year Limited Warranty. The 11.5T5HO/2F/830/BYP, 11.5 watt LED T5 tube has been designed to retrofit existing linear fluorescent 24 watt T5 installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will ensure no RFI interference.

Manufacturer Green Creative
MPN 11.5T5HO/2F/830/BYP
SKU 98296
UPC 045079982963
Lighting Technology LED
Wattage 11.5 Watt
Voltage 120-277V
Frequency 50/60Hz
Color Temperature (Kelvin) 3000K Warm White
Lumens 1,3500 Lumens
Efficiency (Lumens Per Watt) 117 LPW
Ballast Operation Type B Bypass
Wiring Method Single Ended
Bulb Shape T5
Base G5 Mini Bi-Pin
Dimmable Non-Dimmable
Beam Angle 120 Degrees
Rated Life 60,000 Hours
CRI (Color Rendering Index) 82 CRI
Power Factor 0.9
Lens Plastic
Fluorescent Equivalent 24 Watt
Operating Temperature −20ºC to 45ºC
Dimensions 22" MOL x 0.69" MOD
Certifications Enclosed Fixture Rated, NSF Listed
Environment Damp Location
Warranty 5 Year Limited
