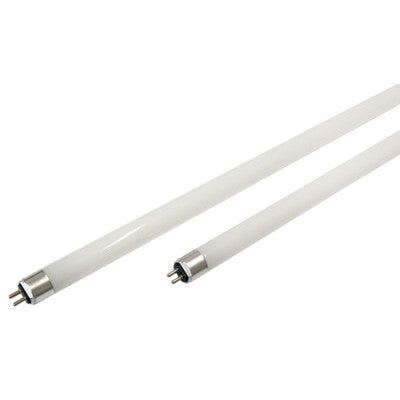

2 Foot 11 Watt Ballast Compatible LED T5 Direct Fit Glass Tube Light

EiKO SKU: 10128
EiKO 2 Foot 11 Watt Ballast Compatible LED T5 Direct Fit Glass Tube Light 3500K Bright White

2 Foot 11 Watt Ballast Compatible LED T5 Direct Fit Glass Tube Light

EiKO SKU: 10128
  • NSF Listed
Regular price $9.68
Color Temp
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

LitespanLED® T5 LED tubes directly replace 2-ft T5 fluorescents. Compatible with most electronic programmed start T5HO fluorescent ballasts (not with magnetic, T8, T12 or battery backup ballasts), no socket changes or rewiring required. Instantly on at full output.

EiKO's LED T5 tubes need no removal/bi-pass of existing ballast. A plug-n-play direct replacement for F28T5HO, most program start electronic ballasts require no rewiring. EiKO's provided ballast compatibility chart ensures lamp/ballast compatibility. Testing was performed with stable main supply. Expect variances due to local main, existing installation/wiring, alternative ballast manufacturer versions. Perform an on-site test prior to LED lamp install.

Here is the EiKO LitespanLED, 185 degree beam angle, frosted lens, G5 miniature bi-pin retrofit LED tube lights. Part number LED11WT5HO/22/8(XX)-G8DR, in either 3500K Bright White or 4000K Cool White, has a Power Factor of 0.9 and consumes just 11 watts of energy. Suitable for use in dry locations, these LED T5 replacement tubes are non-dimmable, will produce between 1,350-1,400 Lumens of light output, has a CRI >80 and a rated life of up to 50,000 hours a L70.

The physical dimensions of the EiKO LED11WT5HO/22/8(XX)-G8DR LED T5 retrofit bulb are 22.20 long by 0.63 wide, designed to retrofit existing linear fluorescent F28T5HO installations and carry a 5 Year Limited Warranty.

Manufacturer EiKO
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White
MPN LED11WT5HO/22/835-G8DR LED11WT5HO/22/840-G8DR
SKU 10128 10129
UPC 031293101280 031293101297
Lumens 1,350 Lumens 1,400 Lumens
Efficiency (Lumens Per Watt) 123 LPW 127 LPW
Lighting Technology LED
Wattage 11 Watt
Voltage 120-277V
Frequency 50/60Hz
Ballast Operation Type A Compatible
Bulb Shape T5
Base G5 Mini Bi-Pin
Dimmable Non-Dimmable
Beam Angle 185 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor ≥0.9
Lens Frosted Glass Lens
Fluorescent Equivalent 28 Watt
Operating Temperature -4°F to 113°F (-20°C to +45°C)
Dimensions 22.20" MOL x 0.63" MOD
Certifications cULus, NSF Listed, FCC, RoHS
Environment Not for use in airtight fixtures, Dry location
Warranty 5 Year Limited


EiKO Type A Ballast Compatible LED T5 Specification Sheet

EiKO Type A Ballast Compatible LED T5 Installation Instructions

EiKO Type A Ballast Compatible LED T5 Ballast Compatibility List
