Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.
Fluorescent F32T8 Replacement Chart:
Satco Hygrade F32T8/841/ENV
TCP F32T8/841 - 31032841HL
Keystone’s DirectDrive DX2 is a UL Type B line voltage tube offering single or double ended wiring options, allowing you to hold less inventory. In addition, DX2 utilizes both shunted and non-shunted lamp holders, making it an easy LED replacement for T8 fluorescent tubes. These T8 LED tubes can provide up to 50% more energy savings than standard F32T8 lamps. Since LED tubes have a longer useful lifespan than their fluorescent counterparts, DX2 will also reduce maintenance costs. Select DirectDrive DX2 tubes are now available in Made in America options. These tubes offer the same single- or double-ended wiring versatility while meeting with BAA and TAA standards.
Keystone's LED T8 Tube Light allows you to use single-ended wiring with non-shunted sockets or double-ended wiring with the use of either shunted or unshunted lamp holders. This Made in America tube also has an isolated integral driver that eliminates the need for external drivers or ballasts. Replacing your conventional fluorescent lamp these LED T8 have approximate 40% more energy efficient than the standard F32T8 Lamp. With an operating temperature of -20 degrees Celsius/-4 degrees Fahrenheit to 45 degrees Celsius/113 degrees Fahrenheit these lamps are great for use in residential, commercial, retail displays, hotel, motel and resort applications.

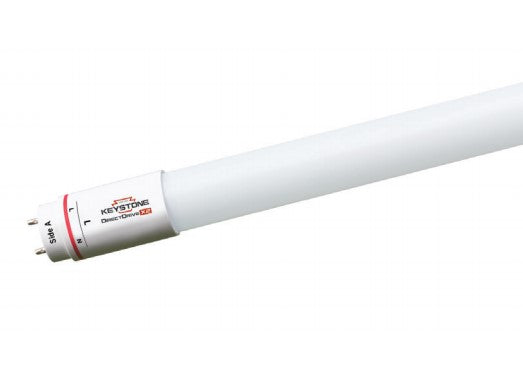

Here is the Keystone Technologies, 240 degree beam angle (325 degree visible light angle), frosted lens, G13 medium bi-pin retrofit LED tube lights. Available in both 3500K and 4000K color temperatures, these tubes have a Power Factor >0.9 and consume just 9 watts of 120 to 277 volts. These LED T8 replacement tubes are non-dimmable, will produce 1,100-1,125 Lumens of light output (that's an awesome 122-125 Lumens Per Watt), has a CRI >83 and a rated life of up to 50,000 hours. The physical dimensions of the Keystone LED T8 LED retrofit are 23.22 long by 1.02 wide. Each LED T8 retrofit bulb carries a 5 Year Warranty.
|Color Temperature (Kelvin)||3500K Bright White||4000K Cool White|
|MPN||KT-LED9T8-24G-835-DX2 /USA||KT-LED9T8-24G-840-DX2 /USA|
|SKU||KT-LED9T8-24G-835-DX2 /USA||KT-LED9T8-24G-840-DX2 /USA|
|Lumens||1,100 Lumens||1,125 Lumens|
|Efficiency (Lumens Per Watt)||122 LPW||125 LPW|
|DLC Product ID||PL9FTJ6726OH||PLL191GXGOA0|
|Input Current||0.075A @ 120V, 0.032A @ 277V|
|Ballast Operation||Type B Ballast Bypass|
|Wiring Method||Single or Double Ended|
|Base||G13 Medium Bi Pin|
|Beam Angle||240 Degrees|
|Rated Life||50,000 Hours|
|CRI (Color Rendering Index)||83 CRI|
|Operating Temperature||–20ºC/–4ºF to 45ºC/113ºF|
|Dimensions||23.22" x 1.02"|
|Certifications||Made in USA, BAA/TAA Compliant, DLC Listed|
|Warranty||5 Year Limited|
