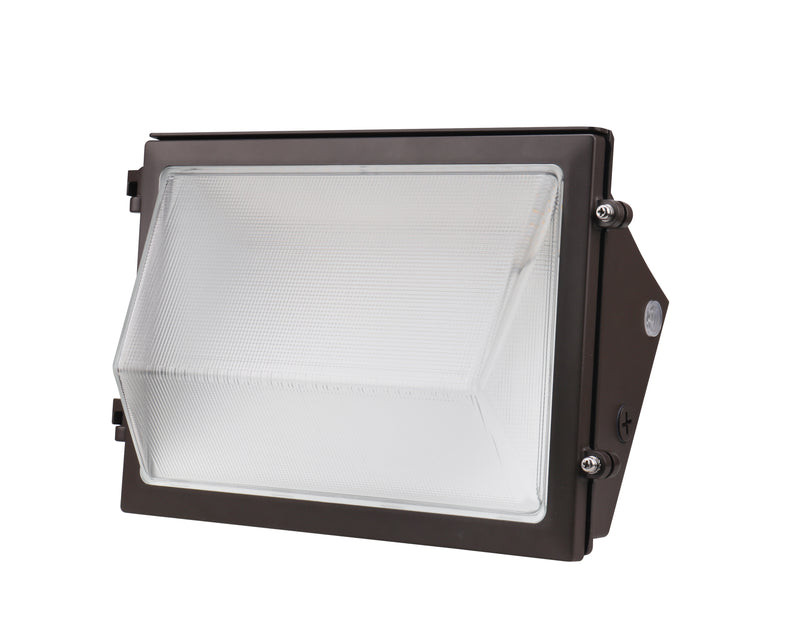

The EiKO Traditional LED Wall Pack provides a sleek and modern aesthetic while maintaining a similar footprint to traditional lighting options. With (4) 1/2 inch knockouts, this versatile wall mount can be used with or without a junction box. The integrated photocell allows for automatic operation from dusk to dawn, and the hinged removable door housing makes for easy installation.
The EiKO LED Traditional Wall Pack 13654 (TWP1-PS45-FCCT-U) is color selectable and can switch between three different color temperatures, including: 3000K Warm White, 4000K Cool White, and 5000K Daylight, via the switch located on the inside of the fixture. The traditional wall pack operates on the universal voltage of 120-277V and is also wattage/lumen adjustable, able to switch between 25 watts, 35 watts, and 45 watts, ranging between 3,375-6,075 lumens respectively, and has a Color Rendering Index (CRI) of 80. The wall pack fixture is dimmable via 0-10v dimming and is suitable for wet locations. DLC listed, this wall pack comes with a 5 year limited warranty.
| Manufacturer | EiKO |
| MPN | TWP1-PS45-FCCT-U |
| SKU | 13654 |
| UPC | 031293136541 |
| Lighting Technology | LED |
| Wattage | 25/35/45 Watts |
| Voltage | 120-277V |
| Color Temperature (Kelvin) | 3000/4000/5000K |
| Lumens | 3,375/4,725/6,075 Lumens |
| Efficiency (Lumens Per Watt) | 135 LPW |
| Dimmable | Yes, 0-10V Dimming |
| Rated Life | 54,000 Hours |
| CRI (Color Rendering Index) | 80 CRI |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | <20% |
| Finish Color | Bronze |
| Housing | Die Cast Aluminum |
| Lens | Glass |
| HID Equivalent | 100 Watts |
| Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
| Operating Temperature With Photocell | -13°F to 122°F (-25°C to 50°C) |
| Dimensions | 9.5" H x 14.5" W x 6.5" L |
| Certifications | DLC Listed, IP65 Rating |
| DLC Product ID | S-GIEKB1 |
| Environment | Wet Location |
| Warranty | 5 Year Limited |
