2x2 18/27/36 Watt LED Selectable Frame 3500/4000/5000K

LiteTronics SKU: VLFT2
LiteTronics 2x2 18/27/36 Watt LED Selectable Frame 3500/4000/5000K Selectable
LiteTronics 2x2 18/27/36 Watt LED Selectable Frame 3500/4000/5000K

2x2 18/27/36 Watt LED Selectable Frame 3500/4000/5000K

LiteTronics SKU: VLFT2
  • DLC Premium Listed
Regular price $61.53
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

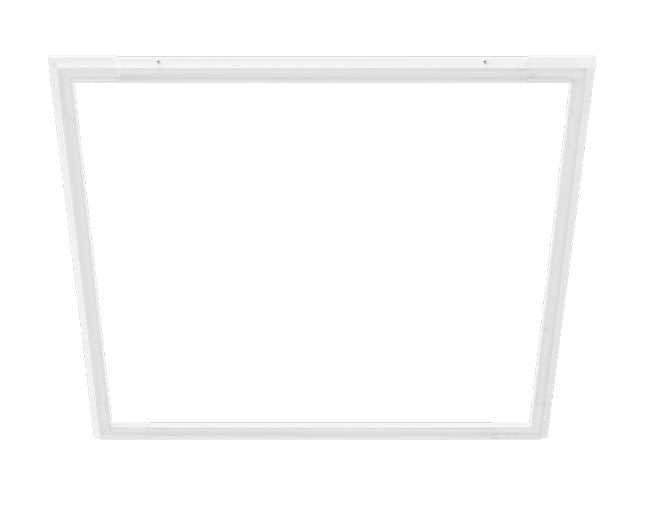

The Vivid LED Frame offers an upscale, architectural aesthetic, output versatility and energy efficiency for interior grid ceiling applications. While delivering a high-end, unique look to any environment, this fixture is also highly adaptable based on the needs of that space. Each size (available in 2’x2’ and 2’x4’) includes three distinct wattage settings as well as three settings for CCT (3500K, 4000K, 5000K). This ensures a perfect match for any application within a limited SKU count. Once wattage and CCT are set, output can still be easily controlled via 0-10V dimming, which is standard on each fixture. Installation is easy; after a quick assembly of the frame, the fixture lays into any standard grid ceiling and connects to a grid rail mounted driver, which houses the selectable wattage and CCT switches. Each fixture delivers long-term efficiency with zero maintenance, and is backed by LiteTronics 5-year warranty.

This is the LiteTronics VLFT2, a 2x2 LED frame that consumes a selectable 18/27/36 watts of 120-277 volt energy and the driver has a power factor of 95%. The VLFT2 generates an average of 2,250-4,500 lumens with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This LED frame can change between 3500K Bright White, 4000K Cool White, and 5000K Daylight and has a CRI of at least 80. This 2x2 frame light fixture is designed to be compatible with most standard 0-10V dimming controls. The LiteTronics LED Frame fixtures carry a 5 Year Warranty and are rated for Damp locations.

Manufacturer LiteTronics
UPC 706762796501
Lighting Technology LED
Wattage 18/27/36 Watts
Voltage 120-277V
Frequency 50/60Hz
Color Temperature (Kelvin) 3500/4000/5000K
Lumens 2,250/3,375,4,500 Lumens
Efficiency (Lumens Per Watt) 125 LPW
Dimmable Yes, 0-10V Dimming
Beam Angle 110 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor ≥0.95
THD (Total Harmonic Distortion) ≤20
Lens Polycarbonate Lens
Operating Temperature 32°F-104°F (0°C to 40°C)
Dimensions 23.72" L x 23.72" W x 0.61" H
Certifications DLC Premium, FCC Compliant, RoHS Compliant
DLC Product ID S-2IZ4UF
Environment Damp Location
Warranty 5 Year Standard
