The EiKO Volumetric Troffer LED light fixtures are LED replacements for fluorescent troffers in new or remodel construction. The VOL is a cost-effective architectural recessed LED luminaire that features direct and indirect illumination for improved visual comfort with minimal glare. Coupled with smooth, dimmable (0-10V standard) light output from ceiling to floor these fixtures are ideal solutions in offices, schools, hospitals, government buildings, retailers and other commercial settings.

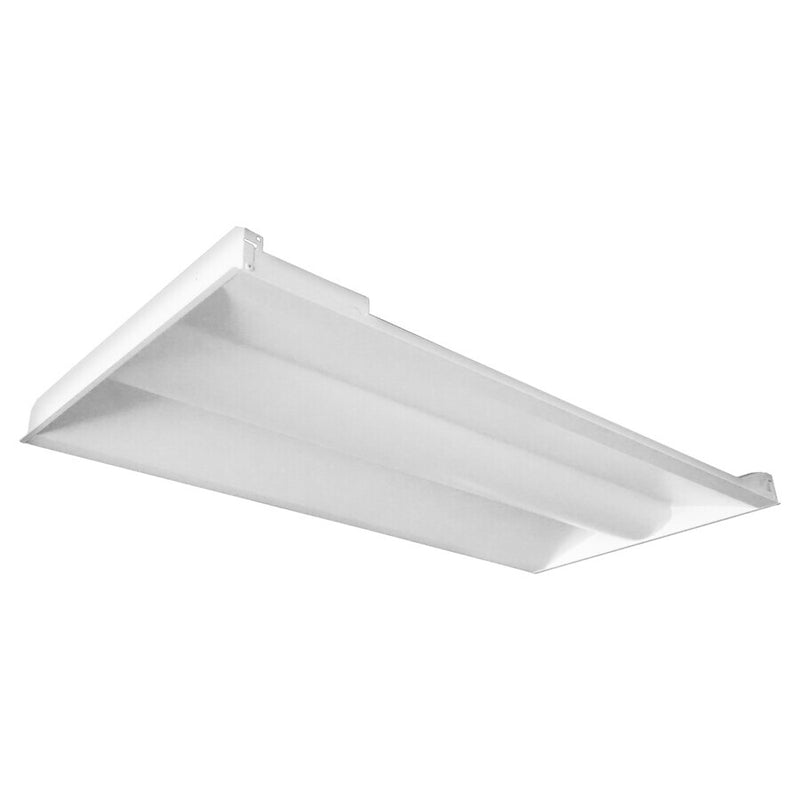

This item is the EiKO VOL24/PS50/(XXX)/HD 2x4 LED Volumetric troffer. Each 2X4 LED panel is ideal for low depth ceiling cavities - whether in an office or school. The EiKO VOL24/PS50/(XXX)/HD LED 2X4 recessed troffer is wattage selectable and consumes 32/40/50 watts of 120-347 volt energy and the driver has a power factor 90%. They generate 4000/5000/6250 lumens, depending on the wattage selected, a rated lumen maintenance of 54,000 hours based on L90 lumen depreciation and come in a color temperature of 3500K Bright White, 4000K Cool White, 5000K Daylight and even a Color Selectable 3500/4000/5000K option. These 2x4 lay-in LED light panels replace 2x 32T8 and 3x 32T8 florescent equivalents and are DLC Premium, FCC, UL Listed and RoHS compliant.

The EiKO LED Volumetric Troffer has a reflector precision die-form, powered-coated and steel construction. It comes with a custom extruded acrylic lens that provides even illumination and visual comfort. This is an architectural recessed luminaire that has integral earthquake clips for mounting. The VOL24/PS50/(XXX)/HD comes with a 5 year limited warranty and an operating temperature of -4°F to 104°F (-20°C to 40°C).
