30/40/60 Watt LED 2-In-1 Traditional or Full Cut Off Selectable Wall Pack 3000/4000/5000K

LiteTronics SKU: WPC060
LiteTronics 30/40/60 Watt LED 2-In-1 Traditional or Full Cut Off Selectable Wall Pack 3000/4000/5000K Selectable

30/40/60 Watt LED 2-In-1 Traditional or Full Cut Off Selectable Wall Pack 3000/4000/5000K

LiteTronics SKU: WPC060
  • DLC Listed, IP65
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

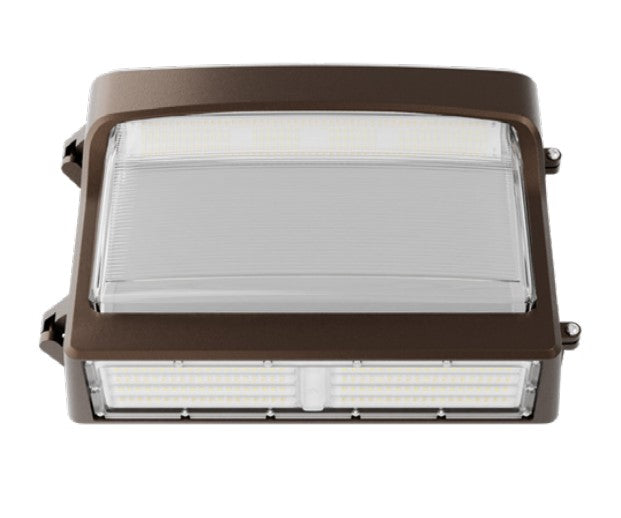

LiteTronics LED 2-In-1 Traditional or Full Cut Off Wall Packs are available from 30W to 100W. The units are offered with selectable wattage and CCT (3000K, 4000K and 5000K), photocell, and pluggable sensor socket. The fixtures offer ease of installation with swing-open unit to facilitate mounting and electrical connections and include EVA cotton pad for wall mount installation. The LiteTronics LED 2-N-1 Traditional or Full Cut Off Wall Pack provides the ability to light your space in a full cut off mode or full cut off and traditional mode. Such a configuration is unique in the industry and provides further flexibility.

Here is LiteTronics' DLC Listed, WPC060, an LED wall pack that consumes 30/40/60 watts of the universal 120-277 voltage. These selectable watts produce between 4,050-8,100 lumens, of either 3000K warm white, 4000K cool white or 5000K daylight, with a total CRI of 80. These 0-10V dimming fixtures are suitable for wet locations (IP65 Rated), have a 50,000 hour rated life, and feature a 5 year limited warranty.

Manufacturer LiteTronics
MPN WPC060
SKU WPC060
UPC 706762802400
Lighting Technology LED
Wattage 30/40/60 Watts
Voltage 120-277V
Frequency 50/60Hz
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 4,050/5,400/8,100 Lumens
Efficiency (Lumens Per Watt) 135 LPW
Dimmable Yes, 0-10V Dimming
Beam Angle 93 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor ≥0.95
THD (Total Harmonic Distortion) ≤20
Finish Color Dark Bronze
Finish Matte Powder Coat
Housing Painted Steel
Lens Polycarbonate Frosted
Operating Temperature -40°F-113°F (-40°C to 45°C)
Dimensions 14.37" W x 9.39" H x 4.90" Depth
Certifications DLC Premium, IP65, FCC Compliant
DLC Product ID S-49DSBY
Environment Wet Location
Warranty 5 Year Standard


LiteTronics LED Traditional or Full Cut Off Selectable Wall Pack Specification Sheet

LiteTronics LED Traditional or Full Cut Off Selectable Wall Pack Installation Instructions

LiteTronics LED Traditional or Full Cut Off Selectable Wall Pack Warranty

LiteTronics LED Traditional or Full Cut Off Selectable Wall Pack DLC Product Listing

 
