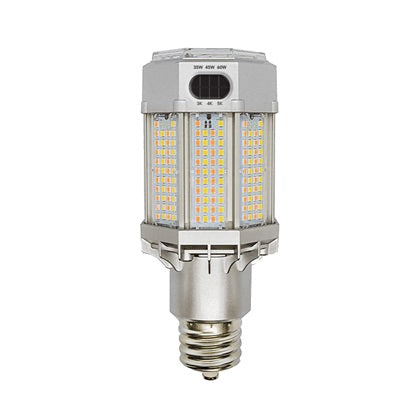

35/45/60 Watt Wattage and Color Selectable LED Post Top Retrofit with EX39 Mogul Base 120-277V 3000/4000/5000K

Light Efficient Design SKU: LED-8024M345-G7-FW
Light Efficient Design 35/45/60 Watt Wattage and Color Selectable LED Post Top Retrofit with EX39 Mogul Base 120-277V 3000/4000/5000K Selectable

35/45/60 Watt Wattage and Color Selectable LED Post Top Retrofit with EX39 Mogul Base 120-277V 3000/4000/5000K

Light Efficient Design SKU: LED-8024M345-G7-FW
  • Enclosed Fixture Rated, DLC Listed
/
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

 LED-8024M345-G7-FW Light Efficient Design LED Bollard Retrofit offers an EX39 Mogul base that easily integrates energy saving LED technology into even your tightest decorative outdoor lanterns, post top, shoe box, wall packs, and other existing HID fixtures. The corncob retrofit light bulbs consume a selectable 35, 45, or 60 watts of 120 to 277 volt energy and generate between 5,140-8,870 initial lumens of either 3000K, 4000K or 5000K light output - an excellent energy saving bulb to replace an existing 175-320 watt Metal Halide or High Pressure Sodium HID.

The 35/45/60 watt LED corncob light bulb, which is UL Listed for either Dry or Damp locations, has been designed to retrofit existing HID installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. Please NOTE: When retrofitting LED to an HID fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will insure no RFI interference.



Manufacturer Light Efficient Design
MPN LED-8024M345-G7-FW
SKU LED-8024M345-G7-FW
UPC 844006060725
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 5,140-8,870 Lumens
Wattage 35/45/60 Watts
Lighting Technology LED
Voltage 120-277V
Ballast Operation Type B Bypass
Base EX39 Mogul
Dimmable Yes, Step Dimming
Beam Angle 360 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
HID Equivalent 175-320 Watts
Operating Temperature -40°C to 50°C
Dimensions 3.4" Diameter x 7.8" L
Certifications Enclosed Fixture Rated, DLC Listed
DLC Product ID PE8R4NVO
Environment Damp Location
Warranty 5 Year Limited



3000K Warm White 4000K Cool White 5000K Daylight
35 Watts 5,140 Lumens 5,290 Lumens 5,360 Lumens
45 Watts 6,200 Lumens 6,510 Lumens 6,620 Lumens
60 Watts 8,440 Lumens 8,790 Lumens 8,870 Lumens



Light Efficient Design Selectable LED EX39 Bollard Retrofit Specification Sheet

Light Efficient Design Selectable LED EX39 Bollard Retrofit Installation Instructions

Light Efficient Design Selectable LED EX39 Bollard Retrofit DLC Product Listing
