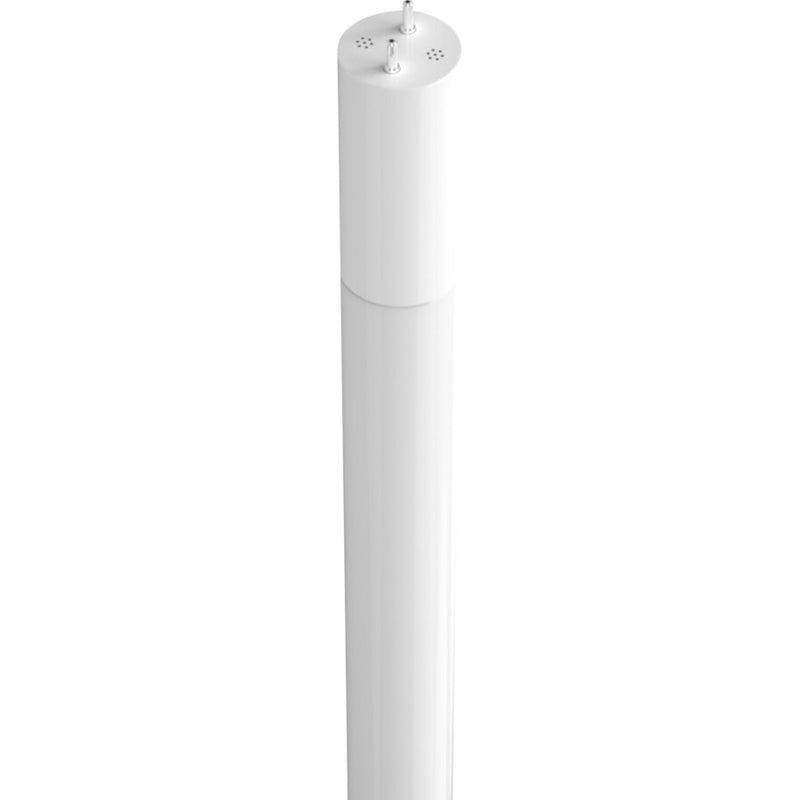

4 Foot 14 Watt 1700 Lumen Double Ended Ballast ByPass T8 LED Tubes

EiKO SKU: 09594
EiKO 4 Foot 14 Watt 1700 Lumen Double Ended Ballast ByPass T8 LED Tubes 3500K Bright White

4 Foot 14 Watt 1700 Lumen Double Ended Ballast ByPass T8 LED Tubes

EiKO SKU: 09594
  • DLC Listed, NSF Listed
Regular price $6.25 Sale price $5.77 Save 8%
Color Temp
Limited quantity available
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!


4 Foot 14 Watt ProLED Double and Single Ended Type B T8 Tube

14 Watt 4 Foot Color Selectable LED Ballast Bypass T8 Tube Light 3500/4000/5000K

EiKO's LiteSpan LED Series of T8 Double Ended Wiring - Ballast By-Pass LED Tubes are designed to directly replace 32W T8 fluorescent lamps. EiKO's T8 ballast by-pass LED tubes require no socket changes and they offer instantaneous full light output upon power-up. These LED T8 tube lights are available in your choice of four color temperatures (3500K, 4000K and 5000K), two wattage options (14 watt and 17 watt) and they come standard with a five year product warranty. These T8 Type B LED bulbs install quickly and safely without the need to rewire to a single end or replace lampholders. The existing ballast in your fixture needs to be removed, or bypassed, and double ended line voltage wiring installed (the hot to one end and the neutral to the other). Then, simply upgrade your current fluorescent bulbs with EiKO's T8 LED tubes to take advantage of energy and maintenance savings.

Here are the UL and DLC Listed Double Ended wiring installation, Ballast By-Pass, 310 degree beam angle, T8/T12 G13 Medium Bi-Pin retrofit LED fluorescent tube lights. Part number LED14WT8/48/8(XX)-DBL-G7D, 3500K bright white, 4000K cool white or 5000K daylight, consumes just 14 watts of 120 to 277 volt 60 Hz energy. UL Listed, these LED tubes are a non-dimmable LED light bulb, will produce 1,700 lumens of light output (that's an awesome 121 Lumens Per Watt), has a CRI of 80 and a rated life of up to 50,000 hours based on L70.

The EiKO LED14WT8/48/8(XX)-DBL-G7D is an LED retrofit option to replace your current T8 fluorescent tubes like the Sylvania FO32/8(XX)/ECO, GE F32T8/SPX(XX)/ECO, Philips F32T8/TL8(XX)/ALTO, EiKO F32T8/8(XX)K, Satco Hygrade F32T8/8(XX)/ENV, Halco F32T8/8(XX)/ECO, Howard F32T8/8(XX)/ECO, MaxLite F32T8/8(XX)XL, TCP F32T8/8(XX) - 310328(XX)HL, Ushio F32T8/8(XX)/ECO or the generic call out of F32T8/8(XX). This 14 watt LED lamp has been designed to retrofit existing linear fluorescent T8 or T12 installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. By-passing the ballast will insure no RFI interference.

Voltage 120-277 Volt
Wattage 14 Watt
Lumens 1,700 Lumens
Base Type G13 Medium Bi-Pin Base
Equivalent 32 Watt Fluorescent
Beam Angle 310 Degrees
Rated Life 50,000 Hours
Dimensions 0.94" Diameter x 47.76" L
DLC listed, cULus
DLC Product ID - 3500K PMP66TZH
DLC Product ID - 4000K P2ZH7YK9
DLC Product ID - 5000K P7S1X1WV
Warranty 5 Year Limited
