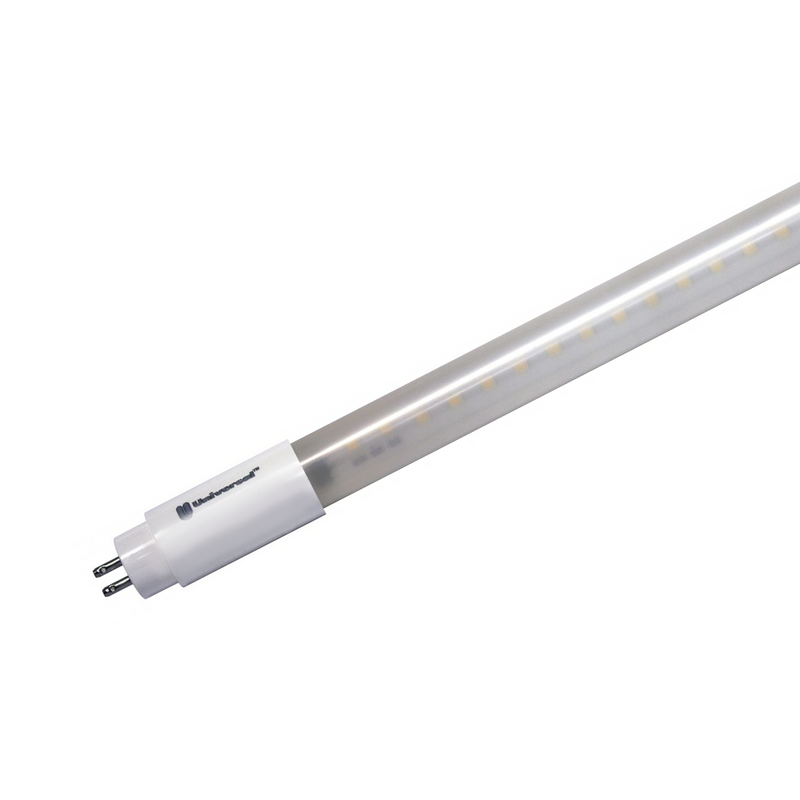

4 Foot 25 Watt Ballast Compatible T5 LED Retrofit Tube

Universal Lighting SKU: T5LDR4F25/850A25C
Universal Lighting 4 Foot 25 Watt Ballast Compatible T5 LED Retrofit Tube 4000K Cool White

4 Foot 25 Watt Ballast Compatible T5 LED Retrofit Tube

Universal Lighting SKU: T5LDR4F25/850A25C
  • NSF Listed
Regular price $12.52 Sale price $10.43 Save 17%
/
Color Temp
Limited quantity available
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Fluorescent F54T5 Cross Reference:
GE F54W/T5/8XX/ECO
Sylvania FP54/8XX/HO/ECO
Philips F54T5/8XX/HO/ALTO
Howard F54T5/8XX/HO
Satco Hygrade F54T5/8XX/HO/ENV
Halco F54T5/8XX/HO/ECO/IC
TCP F54T5HO/8XX
Ushio F54T5/8XX/HO
Generic F54T5/HO/8XX

Ideal for F54T5 fluorescents, Universal Lighting's Gen A, LED Linear T5 Tubes install in existing electronic T5 ballast fixtures. Their T5HO tubes offer higher efficiency, ease of installation, 30%+ energy savings, and 50,000+ hr lifespan. With a seamless glass design and 240° light distribution, they meet various application needs. LED replacement tubes provide low-cost LED retrofits on Instant Start or Programmed Start ballasts.

Here are Universal Lighting's 240 degree beam angle, LED T5 Miniature Bi-Pin G5 retrofit LED fluorescent tube lights. Part number T5LDR4F25/8(XX)A is available in 4000K Cool White and 5000K Daylight color temperature, has a Power Factor over 90 and consumes just 25.5 watts of 120 to 277 volt 50/60 Hz energy. UL Listed, the Universal Lighting T5LDR4F25/8(XX)A is a plug-and-play, direct replacement LED tube that is compatible with most T5 electronic fluorescent ballasts (Note: These LED tubes are NOT for use with magnetic ballasts) and it will produce an amazing 3,300-3,400 Lumens of light output. They have a frosted lens, CRI of 82 and a rated life of up to 50,000 hours based on L70.

These LEDs have a G5 base for replacing recessed fluorescent troffers or high bay lighting. At 45.8"x1.0", they fit existing T5 installations. The 25W LED lamp reduces maintenance and energy use in commercial settings. It's -4˚F to 113˚F rated for dry/damp conditions & complies with RoHS standards. Each Universal Lighting T5LDR4F25/8(XX)A LED fluorescent retrofit bulb carries a 5 Year Warranty.

Manufacturer Universal Lighting
Color Temperature (Kelvin) 4000K Cool White 5000K Daylight
MPN T5LDR4F25/840A T5LDR4F25/850A
SKU T5LDR4F25/840A T5LDR4F25/850A
UPC 768386612407 768386612414
Lumens 3,300 Lumens 3,400 Lumens
Efficiency (Lumens Per Watt) 132 LPW 136 LPW
Lighting Technology LED
Wattage 25 Watt
Voltage 120-277V
Frequency 50/60Hz
Ballast Operation Type A Compatible
Bulb Shape T5
Base G5 Mini Bi-Pin
Dimmable Non-Dimmable
Beam Angle 240 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 82 CRI
Power Factor 0.9
Lens Shatter-Proof Glass
Fluorescent Equivalent 54 Watt
Operating Temperature −4ºF to 113ºF
Dimensions 45.8" MOL x 1.0" MOD
Certifications UL, RoHS, NSF Listed
Environment Dry and Damp Locations
Warranty 5 Year Limited


Specification Sheet

Ballast Compatibility Sheet
