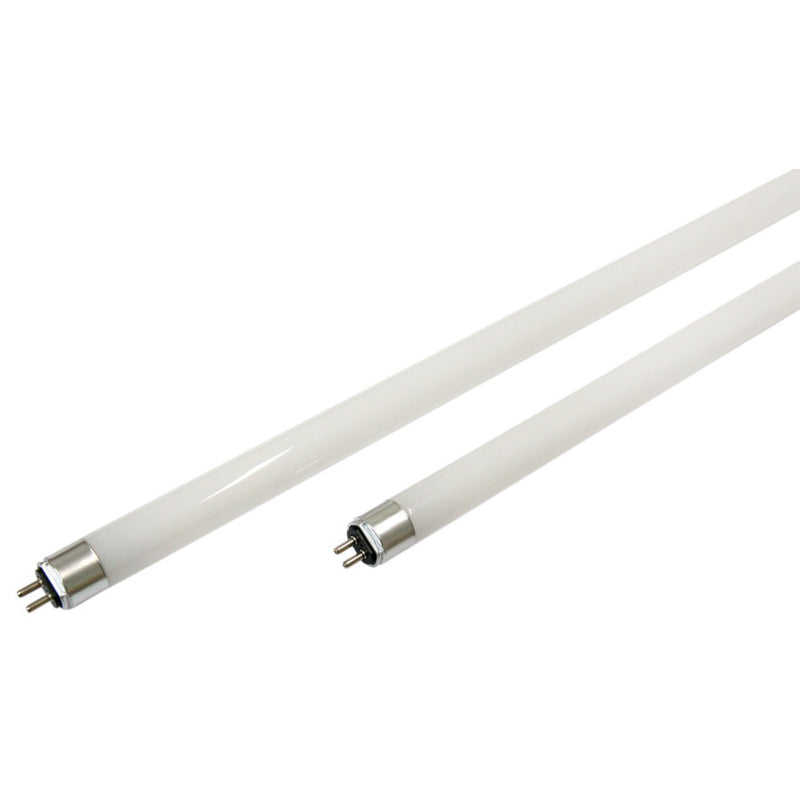

4 Foot 25 Watt DLC Listed T5 LED Double Ended ByPass Light Bulbs

EiKO SKU: 09949
EiKO 4 Foot 25 Watt DLC Listed T5 LED Double Ended ByPass Light Bulbs 3500K Bright White

4 Foot 25 Watt DLC Listed T5 LED Double Ended ByPass Light Bulbs

EiKO SKU: 09949
  • Enclosed Fixture Rated, NSF Listed, DLC Listed
Regular price $17.78 Sale price $11.23 Save 37%
Color Temp
Limited quantity available
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!


4 Foot 25 Watt T5 LED Single/Double Ended ByPass Light Bulb

4 Foot 25 Watt Single/Double Ended UL Listed Ballast Bypass T5HO LED Tube Light

Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.

EiKO LED T5 lamps with internal driver are ideal energy-savers for upgrading traditional linear T5 fluorescents. Ballast-bypass design leads to 50% energy savings vs. 54W fluorescents. Double-ended powered LED tubes, no non-shunted sockets needed; both sides must be powered.

EiKO part number LED25WT5HO/46/8XX-G8D, is DLC Listed has a 3500K Bright White, 4000K Cool White or 5000K Daylight color temperature, has a power factor over 90 and consumes just 25 watts of 120 to 277 volt 50/60 Hz energy. The EiKO tubes have an all glass construction with a 0.1mm thick PET coating (polyethylene terephthalate), which is ETL Listed, is a non-dimmable LED light bulb and it will produce 3,300-3,500 lumens of light output. They have a frosted lens, a CRI of 80, a 240 degree beam angle and a rated life of up to 50,000 hours based on L70.

The LED25WT5HO/46/8XX-G8D, 25 watt LED lamp has been designed to retrofit existing linear fluorescent T5 installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. These T5 LED bulbs are rated for use in either dry or damp locations, has an operating temperature range of -4 degrees Fahrenheit to 113 degrees Fahrenheit and are RoHS compliant. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will ensure no RFI interference.

**Note: Though nominally referred to as a T5, this lamp has a T6 diameter. Please check the dimensions of your enclosed fixture before ordering.**

Manufacturer EiKO
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
MPN LED25WT5HO/46/835-G8D LED25WT5HO/46/840-G8D LED25WT5HO/46/850-G8D
SKU 09949 09947 09948
UPC 031293099495 031293099471 031293099488
Lumens 3,300 Lumens 3,500 Lumens 3,500 Lumens
Efficiency (Lumens Per Watt) 132 LPW 140 LPW 140 LPW
Lighting Technology LED
Wattage 25 Watt
Voltage 120-277V
Frequency 50/60Hz
Ballast Operation Type B Bypass
Wiring Method Double Ended
Bulb Shape T5
Base G5 Mini Bi-Pin
Dimmable Non-Dimmable
Beam Angle 230 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor ≥0.90
Construction Glass
Lens Frosted
Fluorescent Equivalent 54 Watt
Operating Temperature −20ºC to 45ºC
Dimensions 45.8" MOL x 0.60" MOD
Certifications Title 20 Exempt, Enclosed Fixture Rated, NSF Listed, DLC Listed
Environment Dry Location
Warranty 5 Year Limited
