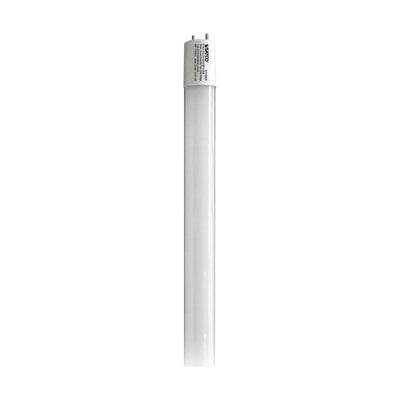

4 Foot 25 Watt Single Ended ByPass LED T5HO Light Bulb

Satco SKU: S29717
Satco 4 Foot 25 Watt Single Ended ByPass LED T5HO Light Bulb 3500K Bright White

4 Foot 25 Watt Single Ended ByPass LED T5HO Light Bulb

Satco SKU: S29717
  • Enclosed Fixture Rated, NSF Listed
Regular price $15.75 Sale price $9.95 Save 37%
Color Temp
Limited quantity available
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

DIRECT REPLACEMENT: 4 Foot 25 Watt T5 LED Single/Double Ended ByPass Light Bulb

Fluorescent F54T5 Cross Reference:
GE F54W/T5/8(XX)/ECO
Sylvania FP54/8(XX)/HO/ECO
Philips F54T5/8(XX)/HO/ALTO
Howard F54T5/8(XX)/HO
Satco Hygrade F54T5/8(XX)/HO/ENV
Halco F54T5/8(XX)/HO/ECO/IC
Ushio F54T5/8(XX)/HO
Generic F54T5/HO/8(XX)

Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.

Satco's Shatterproof LED T5 tubes feature shatterproof coated glass and frosted lens that eliminates pixilation. PET coating ensures no broken glass and it's ETL Sanitation Listed NSF/ANSI Standard 2 - Food Equipment approved. No ballast or driver needed for single-ended wiring ballast bypass. Must bypass/remove ballast; only for use in non-shunted holders.

This part number S2971X (25T5/LED/46-8XX/BP/HO/120-277V) comes in 3500K Bright White and 4000K Cool White, offers a Power Factor >0.9 and 25 watts of 120-277 volt energy. Suitable for use in dry or damp locations. These LED T5 replacement tubes are non-dimmable w/ 3,200-3,300 lumens, 83 CRI, and a 50,000-hour rated life. Boasting a 240° beam angle and G5 miniature bi-pin base, it's ideal for retrofitting.

This Satco T5 LED retrofit is 48" long and .88" in diameter and comes with a 5 Year Limited Warranty. It retrofits existing F54T5 linear fluorescent fixtures, saving energy and reducing maintenance costs in a variety of applications, including residential, commercial, retail displays, and hotels/motels/resorts. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will ensure no RFI interference.

**Note: Though nominally referred to as a T5, this lamp has a T6 diameter. Please check the dimensions of your enclosed fixture before ordering.**

Manufacturer Satco
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White
MPN 25T5/LED/46-835/BP/HO/120-277V 25T5/LED/46-840/BP/HO/120-277V
SKU S29717 S29718
UPC 045923297175 045923297182
Lumens 3,200 Lumens 3,300 Lumens
Efficiency (Lumens Per Watt) 128 LPW 132 LPW
Lighting Technology LED
Wattage 25 Watt
Voltage 120-277V
Frequency 50/60Hz
Ballast Operation Type B Bypass
Wiring Method Single Ended
Bulb Shape T5
Base G5 Mini Bi-Pin
Dimmable Non-Dimmable
Beam Angle 240 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 83 CRI
Power Factor 0.95
Housing Silver
Construction Shatter-Proof Glass
Lens Frosted
Fluorescent Equivalent 54 Watt
Operating Temperature −20ºC to 45ºC
Dimensions 48" MOL x 0.88" MOD
Certifications Title 20 Exempt, Title 24 Exempt, Enclosed Fixture Rated, NSF Listed
Environment Damp Location
Warranty 5 Year Limited
