Name: 5 Inch 8.5 Watt 120V LED Trimless Surface Mount Fixture 2700K/3000K/3500K/4000K/5000K
Brand: Satco
SKU: 62-1005
Price: 16.82 USD
Availability: InStock

5 Inch 8.5 Watt 120V LED Trimless Surface Mount Fixture 2700K/3000K/3500K/4000K/5000K

ETL Certified, Title 24 Compliant, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Black

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":48861108502772,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"62-1005","requires_shipping":true,"taxable":true,"featured_image":{"id":53344223363316,"product_id":9553913610484,"position":1,"created_at":"2026-07-15T15:16:31-04:00","updated_at":"2026-07-15T15:16:33-04:00","alt":null,"width":700,"height":700,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/62-1005.jpg?v=1784142993","variant_ids":[48861108502772]},"available":true,"name":"5 Inch 8.5 Watt 120V LED Trimless Surface Mount Fixture 2700K\/3000K\/3500K\/4000K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":1682,"weight":249,"compare_at_price":null,"inventory_management":"shopify","barcode":"045923626159","featured_media":{"alt":null,"id":44360916795636,"position":1,"preview_image":{"aspect_ratio":1.0,"height":700,"width":700,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/62-1005.jpg?v=1784142993"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48861108535540,"title":"Selectable \/ White","option1":"Selectable","option2":"White","option3":null,"sku":"62-1003","requires_shipping":true,"taxable":true,"featured_image":{"id":53344228737268,"product_id":9553913610484,"position":9,"created_at":"2026-07-15T15:17:52-04:00","updated_at":"2026-07-15T15:17:54-04:00","alt":null,"width":700,"height":700,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/62-1003.jpg?v=1784143074","variant_ids":[48861108535540]},"available":true,"name":"5 Inch 8.5 Watt 120V LED Trimless Surface Mount Fixture 2700K\/3000K\/3500K\/4000K\/5000K - Selectable \/ White","public_title":"Selectable \/ White","options":["Selectable","White"],"price":1682,"weight":249,"compare_at_price":null,"inventory_management":"shopify","barcode":"045923626135","featured_media":{"alt":null,"id":44360922169588,"position":9,"preview_image":{"aspect_ratio":1.0,"height":700,"width":700,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/62-1003.jpg?v=1784143074"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":48861108502772,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"62-1005","requires_shipping":true,"taxable":true,"featured_image":{"id":53344223363316,"product_id":9553913610484,"position":1,"created_at":"2026-07-15T15:16:31-04:00","updated_at":"2026-07-15T15:16:33-04:00","alt":null,"width":700,"height":700,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/62-1005.jpg?v=1784142993","variant_ids":[48861108502772]},"available":true,"name":"5 Inch 8.5 Watt 120V LED Trimless Surface Mount Fixture 2700K\/3000K\/3500K\/4000K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":1682,"weight":249,"compare_at_price":null,"inventory_management":"shopify","barcode":"045923626159","featured_media":{"alt":null,"id":44360916795636,"position":1,"preview_image":{"aspect_ratio":1.0,"height":700,"width":700,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/62-1005.jpg?v=1784142993"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

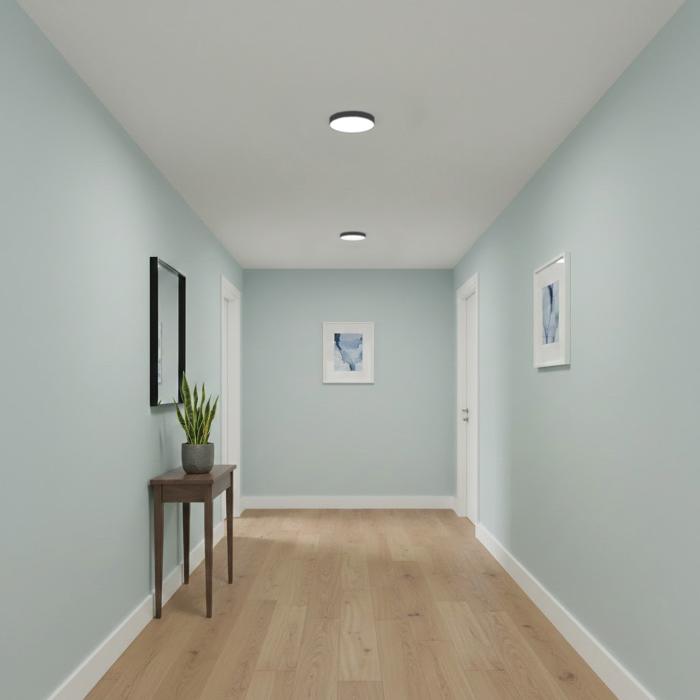

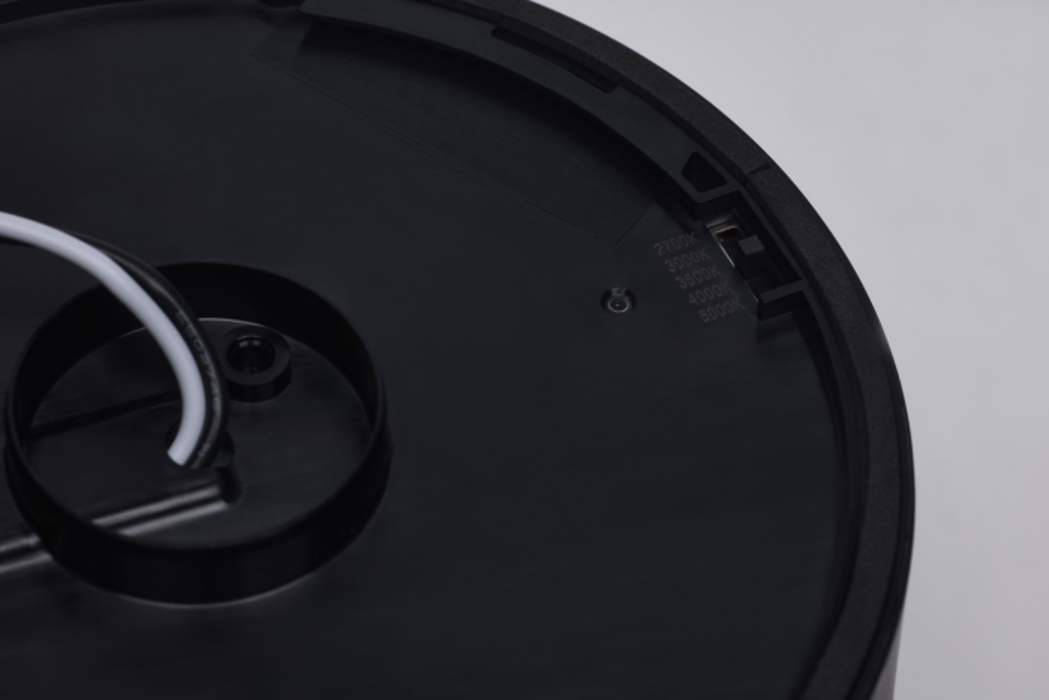

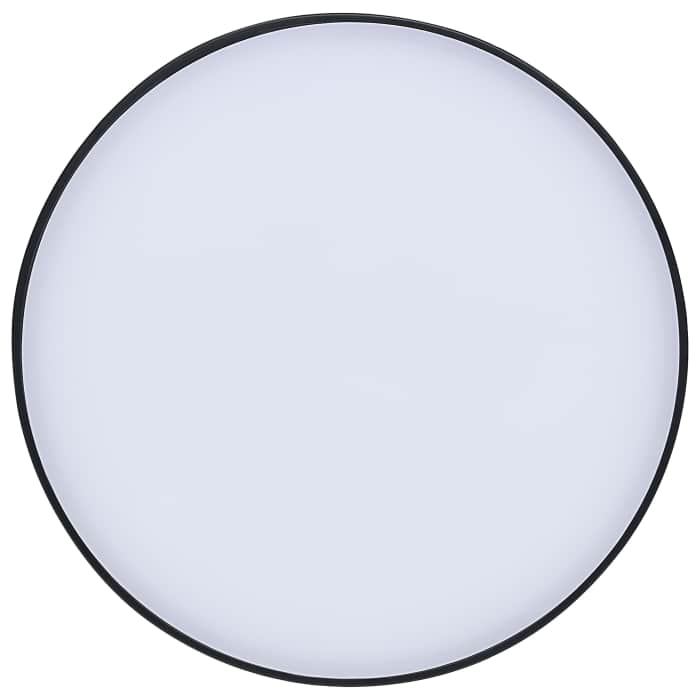

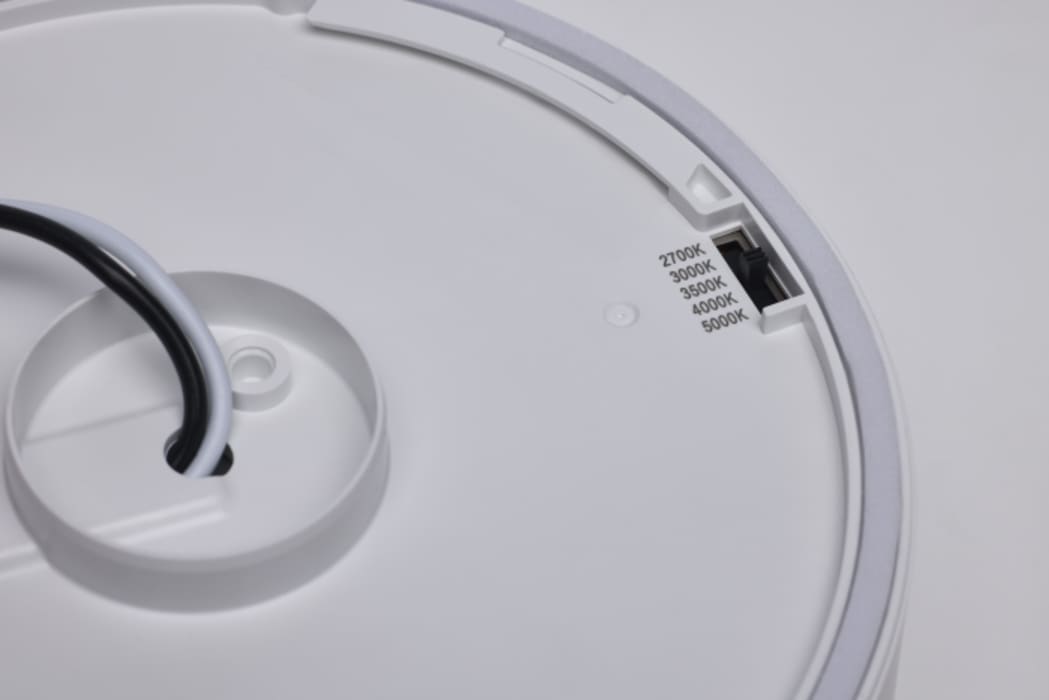

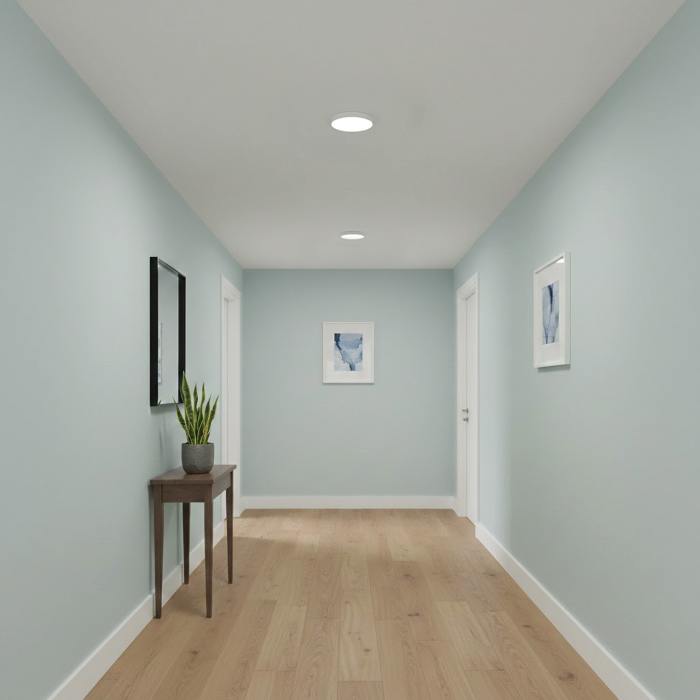

SATCO|NUVO's LED Trimless Surface Mount Fixtures combine clean, modern aesthetics with versatile performance for a refined lighting solution. Designed with a seamless, trimless outside edge, these fixtures deliver a sleek, low-profile look that blends effortlessly into the ceiling plane. A frosted lens ensures smooth, even light diffusion, while 5 CCT selectability (2700K–5000K) allows for easy on-site customization. Available in 5" and 7" sizes with black or white finish options, these fixtures offer flexibility to suit a range of design preferences. A preinstalled gasket helps support a secure fit for wet location applications, while long-lasting performance ensures dependable illumination with a polished architectural feel.

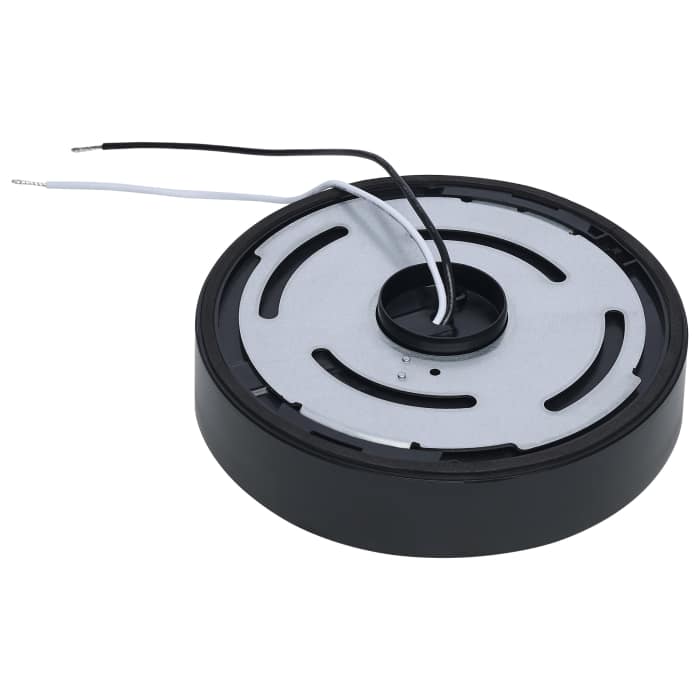

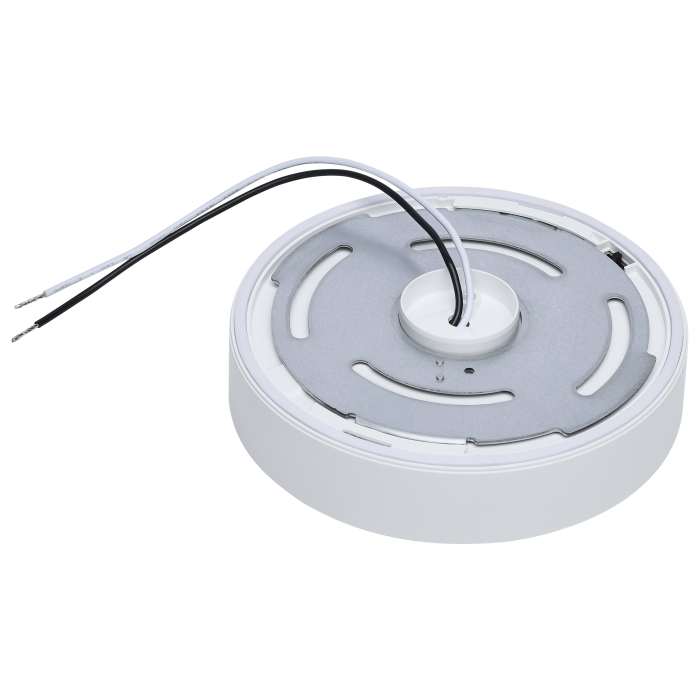

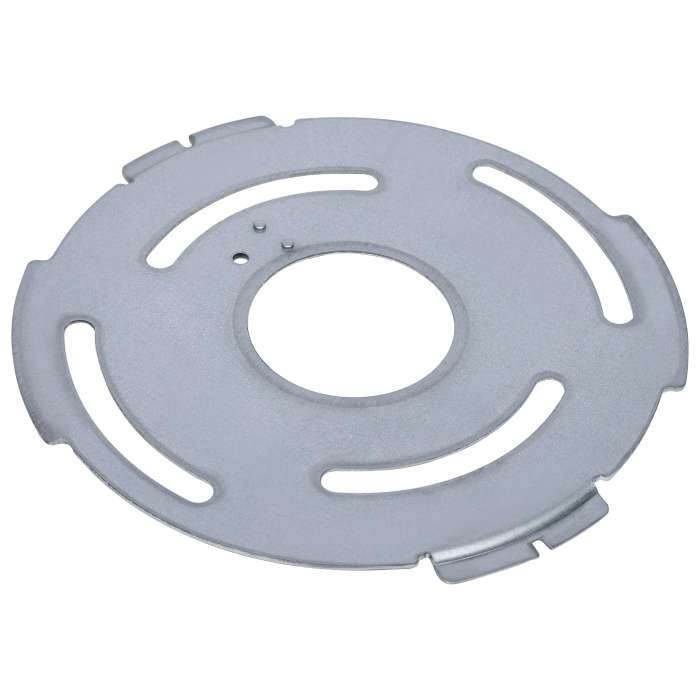

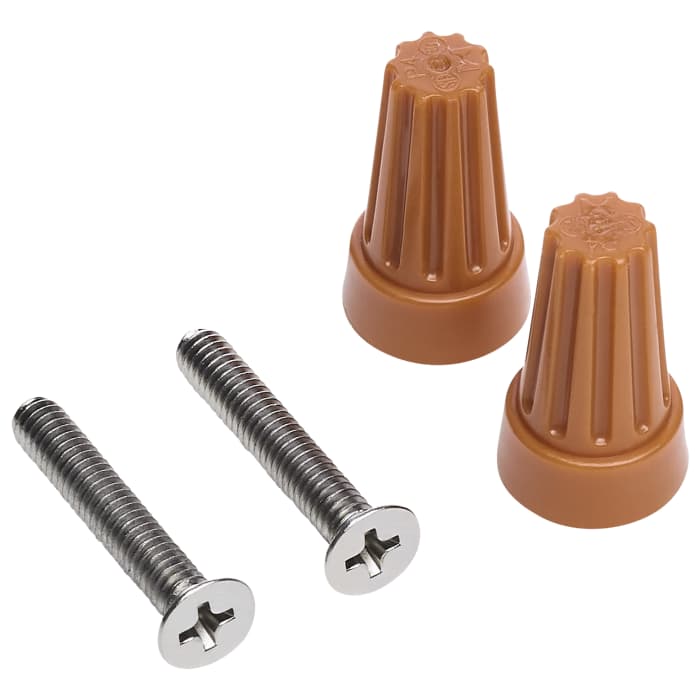

The 5 inch model (SKU 62-1005 in Black, 62-1003 in White) operates at 8.5 watts and 120V, producing 700 lumens at up to 82 LPW efficacy — equivalent to a 65 watt incandescent. With a 90+ CRI and a wide 110° beam angle, it delivers broad, high-quality illumination suited for a variety of interior applications. Dimming is supported via linear, phase-cut dimming down to 10% (120V only), and the fixture measures 5.05" in diameter by 1.19" in height. Rated for wet locations with a preinstalled gasket, it carries a 50,000-hour functional life and a 5 year warranty. Certifications include cETLus, Title 24, ICES-005, FCC, and RoHS. Mounting bracket, screws, and wire nuts are included.

Specifications

Manufacturer	Satco
Finish Color	Black	White
MPN	62-1005	62-1003
SKU	62-1005	62-1003
UPC	045923626159	045923626135
Lighting Technology	LED
Wattage	8.5 Watts
Voltage	120V
Input Current	0.07A
Color Temperature (Kelvin)	2700K/3000K/3500K/4000K/5000K
Lumens	700 Lumens
Efficiency (Lumens Per Watt)	82 LPW
Dimmable	Yes, 120V Only (Linear, Phase-Cut)
Beam Angle	110°
Rated Life	50,000 Hours
CRI (Color Rendering Index)	90 CRI
Finish	Frosted
Construction	Polycarbonate
Lens	Polycarbonate
Incandescent Equivalent	65 Watt Equivalent
Operating Temperature	-20°C (-4°F) to +25°C (+77°F)
Dimensions	5.05" Diameter x 1.19" H
Environment	Wet Location
Certifications	cETLus, FCC, ICES-005, RoHS, Title 24
Warranty	5 Years

Documents

Satco 5 Inch 8.5 Watt 120V LED Trimless Surface Mount Fixture Specification Sheet - Black

Satco 5 Inch 8.5 Watt 120V LED Trimless Surface Mount Fixture Specification Sheet - White

Satco 5 Inch 8.5 Watt 120V LED Trimless Surface Mount Fixture Installation Instructions
