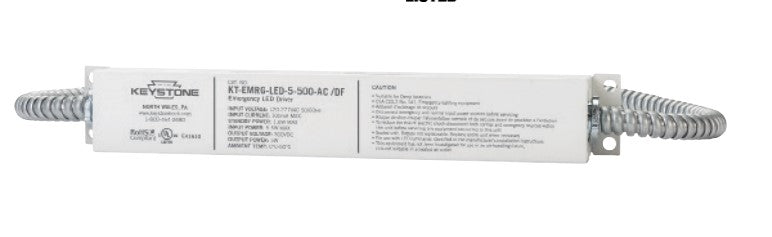

5 Watt LED 500 Lumens Dual Flex 120-277V Constant Wattage Emergency Backup

Keystone Technologies SKU: KT-EMRG-LED-5-500-AC /DF
Keystone Technologies 5 Watt LED 500 Lumens Dual Flex 120-277V Constant Wattage Emergency Backup

5 Watt LED 500 Lumens Dual Flex 120-277V Constant Wattage Emergency Backup

Keystone Technologies SKU: KT-EMRG-LED-5-500-AC /DF
Regular price $140.73
/
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

LED Driver Cross Reference:
Universal ELD7UNVCL
Fulham FHSCP-UNV-7.8WL
ESL Lighting ESL-EMG-SL6-CSC-8W


Keystone’s Smart Safe LED emergency battery backup line offers a dependable solution for virtually every LED lighting application, with options tailored for both new fixture constructions and field installation applications. Smart Safe LED emergency drivers are designed around 5W and 12W constant power platforms with a variety of form factors available. Keystone’s LED battery backup solutions have options designed to fit almost all commercial fixture types, including linear, high bay, recessed, and integrated fixtures.

Choose Smart Safe Class 2 LED emergency drivers when the wiring and modules of the fixture are accessible. Our LED emergency backup lighting kit options include a separate LED module to be added to a fixture for emergency mode illumination, which is ideal for retrofit applications. LED emergency battery packs with remote mounting capabilities means no interference with the sleek design of LED architectural fixtures.

Smart Safe AC LED emergency drivers are optimized for UL Type B tubes and completely integrated LED products where only the input wires of the power supply are accessible.

Manufacturer Keystone Technologies
MPN KT-EMRG-LED-5-500-AC /DF
SKU KT-EMRG-LED-5-500-AC /DF
UPC Code 843654120843
Lighting Technology LED
Driver Emergency Constant Wattage
Output Current Load Dependent
Max Current 100mA @120V
Output Wattage 5 Watt
Input Voltage 120-277VAC
Output Voltage 40-300VDC
Frequency 50/60Hz
Power Factor ≥0.35
Operating Temperature 0°C to 50°C
Emergency Operation 90 Minute Run Time
Dimensions 9.5" L x 1.29" W x 1.22" H
Certifications cULus Listed, RoHS Compliant
Environment Dry and Damp Location
Warranty 5 Year Limited
