6 Inch 6/7/8 Watt LED 0-10V Dimming Commercial Downlight 2700/3000/3500/4000/5000K

MaxLite SKU: 111180
MaxLite 6 Inch 6/7/8 Watt LED 0-10V Dimming Commercial Downlight 2700/3000/3500/4000/5000K

6 Inch 6/7/8 Watt LED 0-10V Dimming Commercial Downlight 2700/3000/3500/4000/5000K

MaxLite SKU: 111180
  • IP65
Regular price $32.47
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Options for LED recessed lighting fixtures, whether installing canless wafer light kits or retrofitting your current can lights, have grown rapidly. Canless wafer LED light kits can be used for remodel or new construction LED recessed ceiling downlight projects. LED retrofit downlights are installed utilizing your existing recessed can housing.

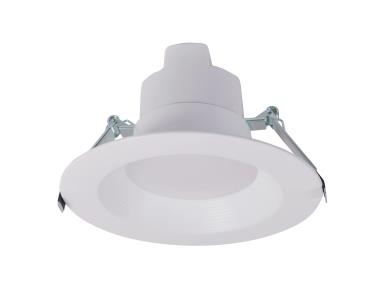

The MaxLite Universal Commercial downlight is an economical, all-in-one solution for adding recessed downlighting to hospitality, retail, office and other commercial lighting applications. The downlight is designed with an integral whip, which connects directly to a junction box (existing or independently mounted), and a universal driver that eliminates the need for a traditional recessed housing, saving installers time and money. The downlight combines 5 CCTs and 3 wattages in one product. Easy to install in new construction, remodel and retrofit projects, the downlight has a slim body that fits into shallow ceilings. Its white baffle trim blends seamlessly into interiors and reduces glare for soft, eye-pleasing illumination.

The 6 inch LED MaxLite 111180 (RCF6V06WCS) is color selectable and can switch between five different color temperatures, including: 2700K Warm White, 3000K Warm White, 3500K Bright White, 4000K Cool White and 5000K daylight, via the switch is located at the top of the fixture. The recessed light kit operates on the universal voltage of 120-277V and is also wattage/lumen adjustable controlled by another switch on the fixture, able to switch between 6 watts, 7 watts, and 8 watts, ranging between 500-730 lumens respectively, and has a Color Rendering Index (CRI) of 90. The 6 inch fixture is dimmable via 0-10V dimming and is suitable for wet locations, making it ideal for either new construction or remodel applications. The downlight is NOT suitable for enclosed cans or for use with pin base or screw base applications.

Manufacturer MaxLite
MPN RCF6V06WCS
SKU 111180
UPC 767627058851
Lighting Technology LED
Voltage 120-277V
Dimmable Yes, 0-10V Dimming
Beam Angle 110 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 90 CRI
Power Factor >0.9
Fluorescent Equivalent 12 Watt
Operating Temperature -4°F -104°F (-20°C - 40°C)
Dimensions 4.72" H x 8.27" Diameter
Certifications IP65 Rated, RoHS Compliant, FCC Compliant
Environment Wet Location
Warranty 5 Year Standard
Wattage 6 Watts
Color Temperature (Kelvin) 2700K Warm White 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 500 Lumens 500 Lumens 510 Lumens 510 Lumens 510 Lumens
Efficiency (Lumens Per Watt) 83 LPW 83 LPW 85 LPW 85 LPW 85 LPW
Wattage 7 Watts
Color Temperature (Kelvin) 2700K Warm White 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 630 Lumens 630 Lumens 640 Lumens 640 Lumens 640 Lumens
Efficiency (Lumens Per Watt) 90 LPW 90 LPW 91 LPW 91 LPW 91 LPW



Wattage 8 Watts
Color Temperature (Kelvin) 2700K Warm White 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 720 Lumens 720 Lumens 730 Lumens 730 Lumens 730 Lumens
Efficiency (Lumens Per Watt) 90 LPW 90 LPW 91 LPW 91 LPW 91 LPW



MaxLite LED 0-10V Dimming Commercial Downlight Specification Sheet

MaxLite LED 0-10V Dimming Commercial Downlight Installation Instructions
