8 Foot 72/108/150 Watt Industrial Wash Down Wet Location LED Fixture Made in USA 4500K

Atlas Lighting SKU: ILWS10-20L8D
8 Foot 72/108/150 Watt Industrial Wash Down Wet Location LED Fixture Made in USA 4500K
8 Foot 72/108/150 Watt Industrial Wash Down Wet Location LED Fixture Made in USA 4500K

8 Foot 72/108/150 Watt Industrial Wash Down Wet Location LED Fixture Made in USA 4500K

Atlas Lighting SKU: ILWS10-20L8D
  • BAA Compliant DLC Listed, IP65, IP66, IP67, Made in USA, NSF Listed, Wet Location Rated
Regular price $483.08
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

Atlas Lighting's Narrow Body LED wet location fixtures are the highest quality available and feature glare free lenses, efficiencies up to 154 lumens per watt, and an IP rating of 65, 66 & 67. All six LED wet location models have a 45 degrees C ambient temperature with a 91% lumen output rating at 200,000 hours. These fixtures are wash down rated (up to 1,500 PSI) and perfect for a variety of applications such as mobile hospitals, outdoor clinics, first aid stations, patient isolation, and much more. These fixtures are not just used for emergency medical lighting as they can also be used for cold storage, garages, refrigerated cases, stairwells, storage areas, fuel pump canopy and countless other applications.

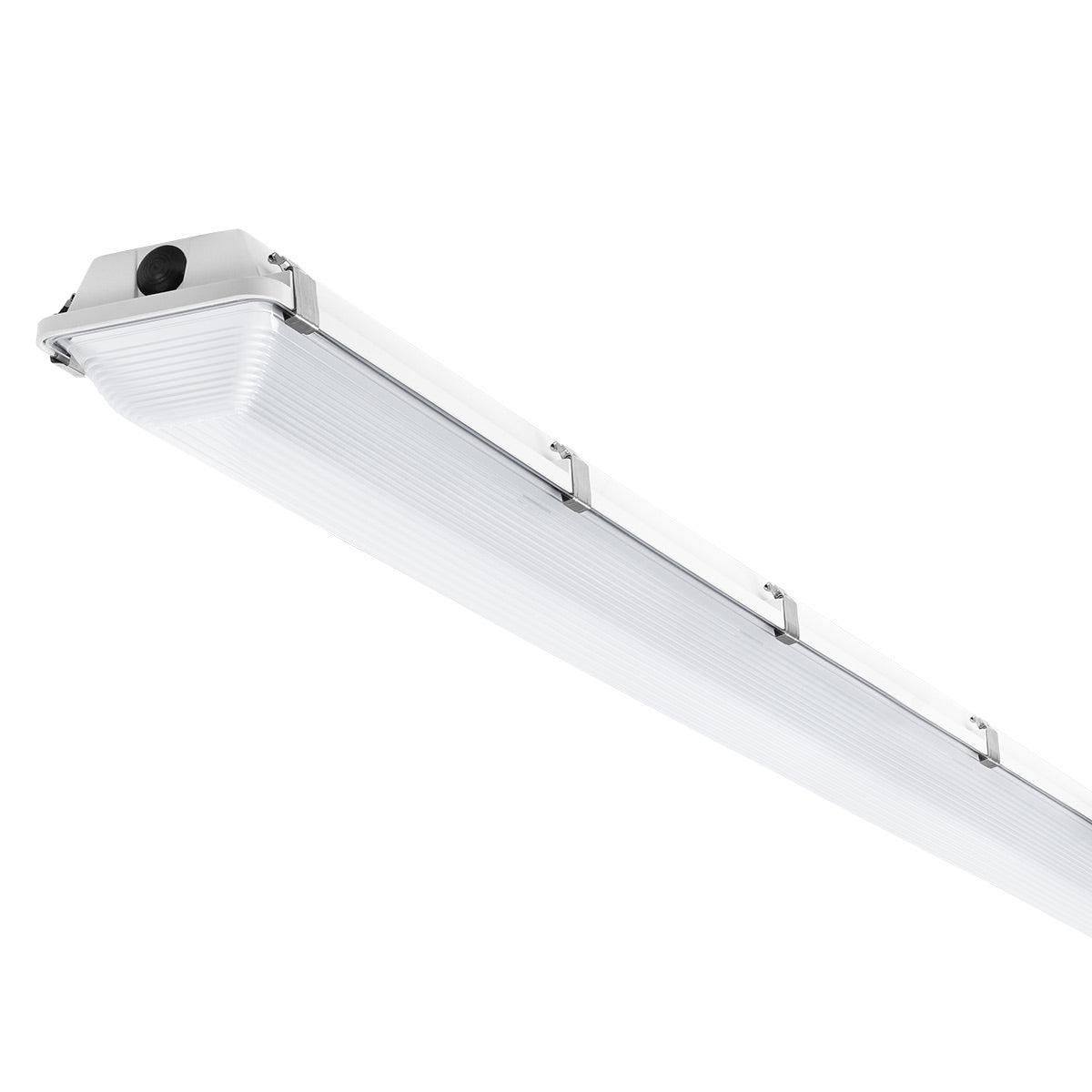

Atlas Lighting's ILWS10-20L8D is an 8-foot 72/108/150 selectable wattage LED Made in USA industrial wet location linear fixture. The 1-piece housing is made of durable composite material with 1/2" entry points on both ends. The poured gasket provides a continuous seal for the lens. Six polycarbonate cam latches compress lens to housing for a tight seal. Stainless steel mounting brackets are furnished with each fixture. This fixture features an injection molded acrylic lens with high impact additive and the lens is ribbed and frosted to eliminate glare. This model consumes 72/108/150 selectable watts of the universal 120-277 voltage. These 72/108/150 watts produce 10,190/15,017/20,161 lumens, for up to 142 lumens per watt (LPW), of 4500K Cool White, with a total CRI of 80. These LED fixtures are manufactured and tested in the United States. This product includes a five-year limited warranty.

Specifications
Manufacturer Atlas Lighting
MPN ILWS10-20L8D
SKU ILWS10-20L8D
UPC 765364060847
DLC Product ID S-MFQQ3M
Lighting Technology LED
Color Temperature (Kelvin) 4500K
Wattage 72/10/150 Watts
Voltage 120-277V
Lumens 10,190/15,017/20,161 Lumens
Efficiency (Lumens Per Watt) 142/140/134 LPW
Dimmable 0-10V Dimmable
CRI (Color Rendering Index) 80 CRI
Fluorescent Equivalent 4 lamp T8 Fluorescent, 4 lamp T5 Fluorescent
Lens Injection Molded Acrylic Lens
Operating Temperature -40°C/-40°F to 50ºC/122ºF
Dimensions 100" L x 6.77" W x 4.13" H
Certifications Buy American Compliant, DLC Listed, uCLus, Made in USA
Environment IP65 Rated, IP66 Rated, IP67 Rated, Wet Location Rated
Warranty 5 Year Warranty
