90/105/120 Watt Traditional LED Wall Pack 3000/4000/5000K

EiKO SKU: 13666
EiKO 90/105/120 Watt Traditional LED Wall Pack 3000/4000/5000K

90/105/120 Watt Traditional LED Wall Pack 3000/4000/5000K

EiKO SKU: 13666
  • DLC Listed, IP65
Regular price $161.27
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

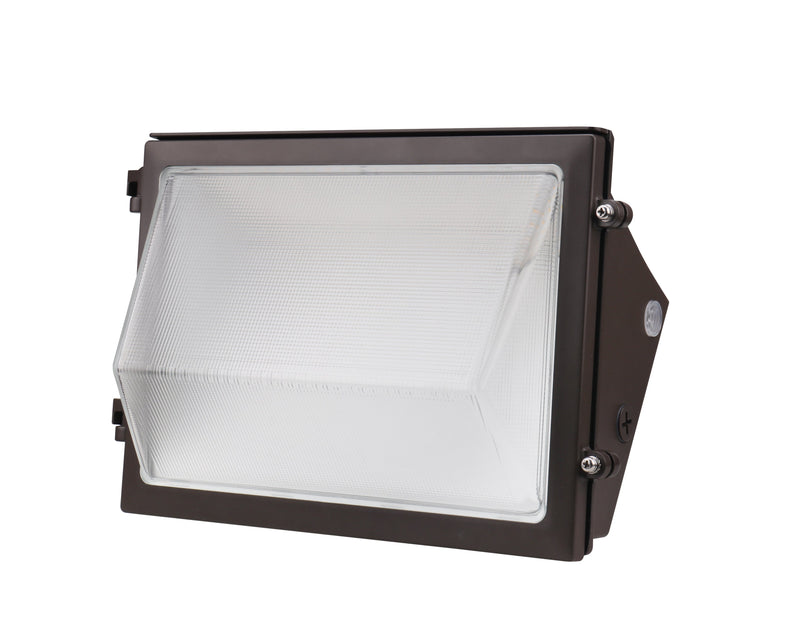

The EiKO Traditional LED Wall Pack provides a sleek and modern aesthetic while maintaining a similar footprint to traditional lighting options. With (4) 1/2 inch knockouts, this versatile wall mount can be used with or without a junction box. The integrated photocell allows for automatic operation from dusk to dawn, and the hinged removable door housing makes for easy installation.

The LED Traditional Wall Pack EiKO 13666 (TWP1-PS120-FCCT-U) is color selectable and can switch between three different color temperatures, including: 3000K Warm White, 4000K Cool White, and 5000K Daylight, via the switch is located on the inside of the fixture. The traditional wall pack operates on the universal voltage of 120-277V and is also wattage/lumen adjustable, able to switch between 90 watts, 105 watts, and 120 watts, ranging between 12,150-16,200 lumens respectively, and has a Color Rendering Index (CRI) of 80. The wall pack fixture is dimmable via 0-10v dimming and is suitable for wet locations.

Manufacturer EiKO
SKU 13666
UPC 031293136664
Lighting Technology LED
Wattage 90/105/120 Watts
Voltage 120-277V
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 12,150/14,175/16,200 Lumens
Efficiency (Lumens Per Watt) 135 LPW
Dimmable Yes, 0-10V Dimming
Rated Life 54,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Finish Color Bronze
Housing Die Cast Aluminum
Lens Glass
HID Equivalent 400 Watts
Operating Temperature -40°F to 122°F (-40°C to 50°C)
Operating Temperature With Photocell -13°F to 122°F (-25°C to 50°C)
Dimensions 9.5" H x 14.5" W x 6.5" L
Certifications DLC Listed, IP65 Rating
DLC Product ID S-V8SK5D
Environment Wet Location
Warranty 5 Year Limited
