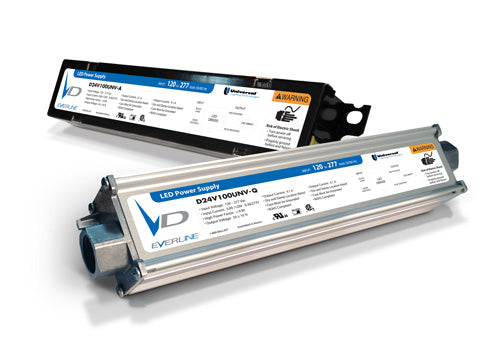

Universal Lighting's Everline® LED drivers are ideal for maximum energy savings and control applications. These LED power supplies are proven in the field and feature (depending on driver) high efficiency Constant Voltage, high range voltage or universal voltage, Class B transient surge protection and/or dimming functionally. If you need an LED driver replacement be sure to ask for Everline® to make sure your application will operate to its full potential.
This item is the Universal Everline LED power supply part number D12V60UNV-Q. The input voltage is a universal 120-277 volt and has a 12V constant voltage output. This LED driver is NOT dimmable. The output current is 5000mA (5.0 Amps) with 60 watt maximum output power. The black and white color coded input leads are 24 inches long and the red and black output leads are 61 inches long. Universal's Everline LED power supplies are UL Dry, Damp and Wet Location Rated, FCC Part 15 Class A for non-consumer limits.
Universal Lighting Technologies warrants to the purchaser that each power supply will be free from defects in material or workmanship for a period of 5 years from the date of manufacture when properly installed per instructions and under normal operating conditions of use.
Manufacturer | Universal Lighting |
MPN | D12V60UNV-Q |
SKU | D12V60UNV-Q |
UPC | 768386557579 |
Lighting Technology | LED |
Driver | Constant Voltage |
Output Current | 5A (5000mA) |
Input Current | 0.58A @ 120V; 0.26A @ 277V |
Input Wattage | 69 Watt |
Output Wattage | 60 Watt |
Input Voltage | 120-277V |
Output Voltage | 12V |
Frequency | 50-60Hz |
Power Factor | >.90 |
THD (Total Harmonic Distortion) Power | 10% |
Operating Temperature | -40°C to 60°C |
Dimensions | 9.50" L x 1.70" W x 1.18" H |
Certifications | Class 2, UL Listed |
Environment | Dry or Damp Location |
Warranty | 5 Year Limited |
