Lithonia Lighting offers one of the industry's broadest portfolios of lighting and now are introducing emergency lighting, including emergency exit signs, to their repertoire. Lithonia's catalog of emergency lighting includes LED emergency lights, LED emergency exit signs, and LED emergency light combos, to meet all your needs. Their extensive collection includes green and red exit signs, both AC only and battery backup options are available. Lithonia Lighting also offers New York City approved and Chicago approved emergency lighting.

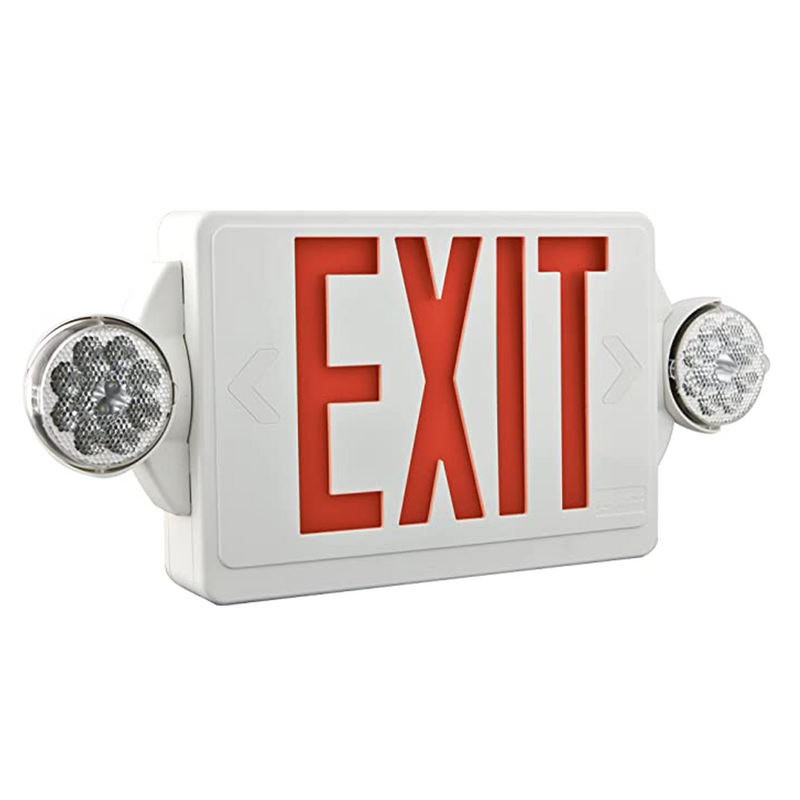

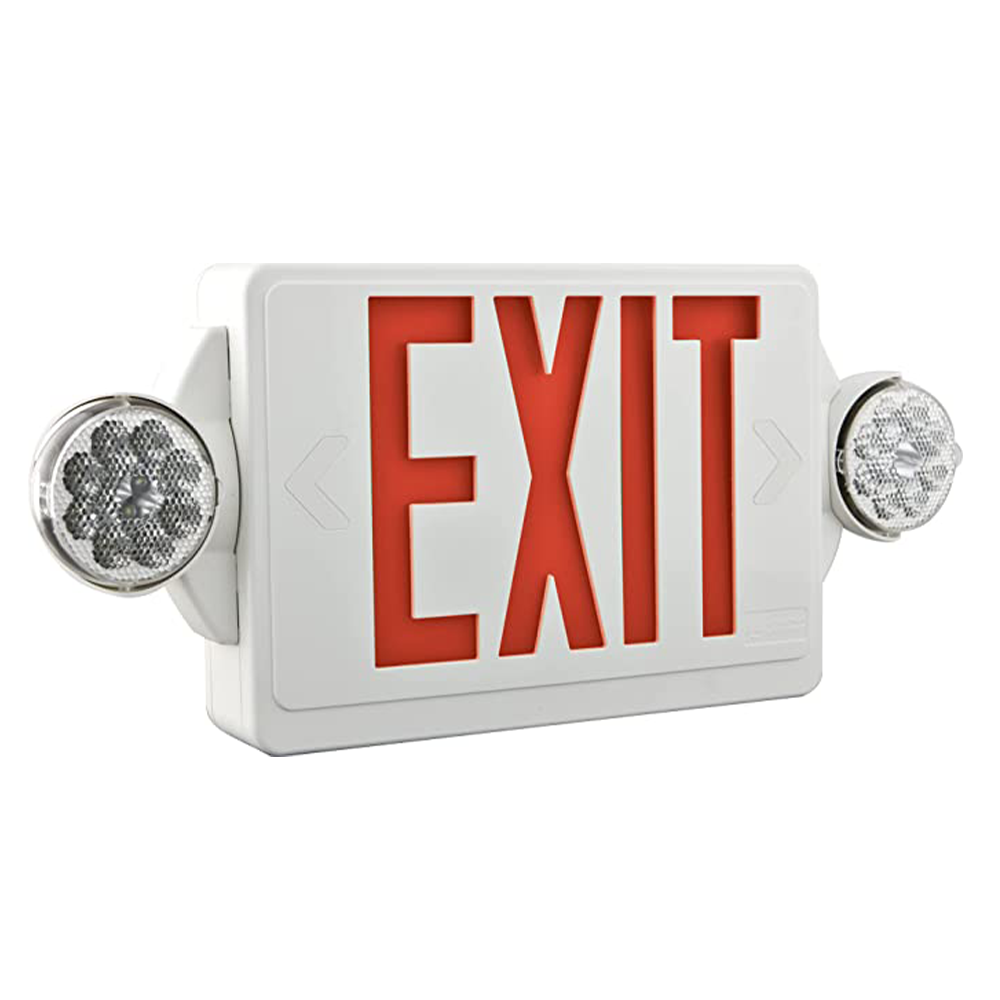

The Quantum Series LHQM LED Emergency Exit Sign/Unit Combo uses the voltage of 120V or 277V. Twin LED lamp heads operate in emergency mode with 12 series-parallel white LEDs in each head. This model features a Ni-Cas battery back up that provides 90 minutes of emergency power. The edge connector on printed circuit board ensures long-term durability. The current-limiting charger maximizes battery life and minimizes battery consumption. This model has a 5-year limited warranty and a typical lifespan of 10 years. Emergency lighting must be maintained, serviced, and tested in accordance with all National Fire Protections Association and local codes. Failure to do so could jeopardize the safety of occupants and will void all warranties. The LHQM LED has top, back, or end mounting capability, with the canopy included. This green exit sign combo is UL Listed while meeting UL 924, NFPA 101, NEC and OSHA illuminations standards. It is indoor damp location rated and 50°F to 104°F (10°C to 40°C) listed standard.
The construction of the LHQM LED Emergency Exit Sign/Unit Combo features an engineering-grade thermoplastic housing that is impact-resistant, scratch-resistant and corrosion-proof and a UL94V-0 flame rating. The rugged unibody housing snaps together with no additional fasteners. Universal directional chevron inserts are easily removed and reinserted. The LHQM LED features unique track-and-swivel arrangement that permits full range of direction of lamp head adjustment. Illuminate what you need to. The green letters are 6" high with 3/4" stroke, creating a 100 feet viewing distance rating, based on UL924 standards. The physical dimensions of the model are 20" long by 9" tall by 4.75" wide.
|Voltage||120 or 277V|
|Mounting||Side, Back or Top Installations|
|Dimensions||20" L x 9" H x 4.75" W|
|Certifications||UL Listed, Damp Location|
|Warranty||2 Year Warranty|
